C310




Component ID: 41
Component : C310

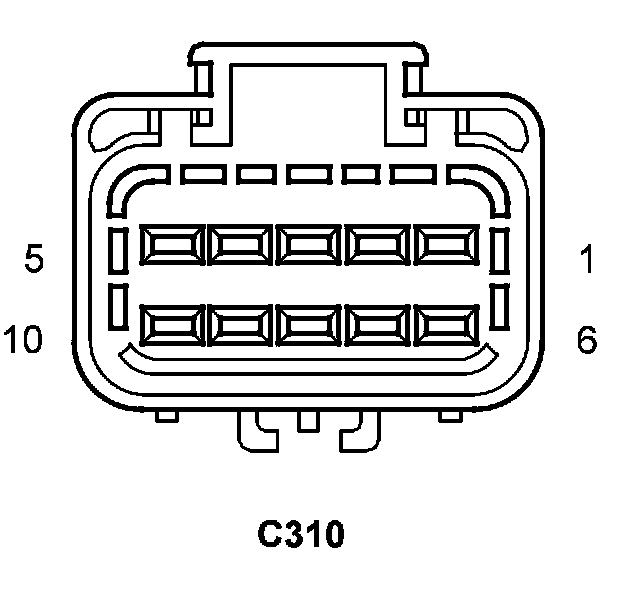

Connector:
Name : C310
Color :
# of pins : 10
Qualifier : (FRONT CRADLE SIDE)
Gender : FEMALE




Pin Description Circuit
1 FRONT DIFFERENTIAL SOLENOID CONTROL T306 20DG/DB
2 SWITCHED BATTERY SOLENOID SUPPLY T301 20DG/YL
3 - -
4 - -
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -

Component Location - 75




Component Location - 57

Fig. 57:

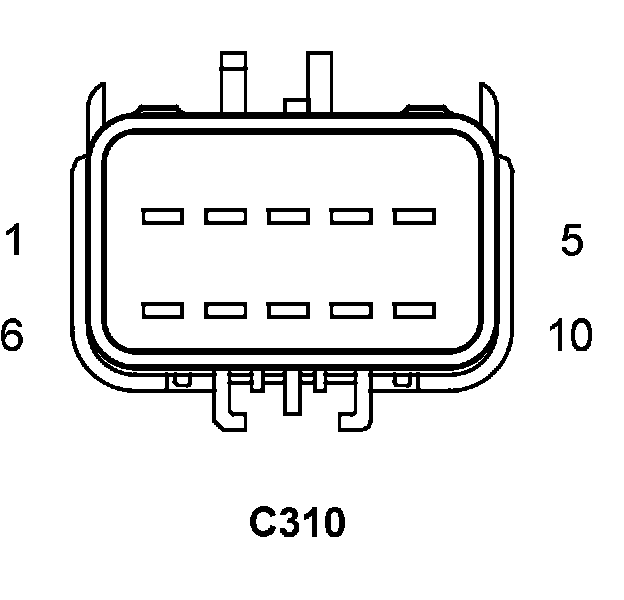

Connector:
Name : C310
Color :
# of pins : 10
Qualifier : (UNDERBODY SIDE)
Gender : MALE




Pin Description Circuit
1 FRONT DIFFERENTIAL SOLENOID CONTROL T306 20DG/DB
2 SWITCHED BATTERY SOLENOID SUPPLY T301 20DG/YL
3 - -
4 - -
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -

Component Location - 75




Component Location - 57

Fig. 57:
