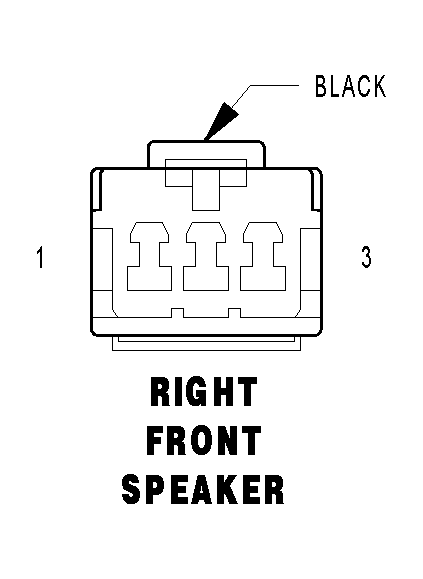

Right Front Speaker Connector End View
RIGHT FRONT SPEAKER - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X54 18GY |
RIGHT FRONT SPEAKER (+) |
| 2 |
- |
- |
| 3 |
X56 18GY/BR |
RIGHT FRONT SPEAKER (-) |
