Liftgate Glass Hinge

LIFTGATE GLASS HINGE

REMOVAL

1. Open tailgate.
2. Open and support liftgate glass.
3. Remove wiper motor cover (right hinge only).
4. Remove the wiper blade.
5. Remove the nut attaching the liftgate hinge to the liftgate glass.

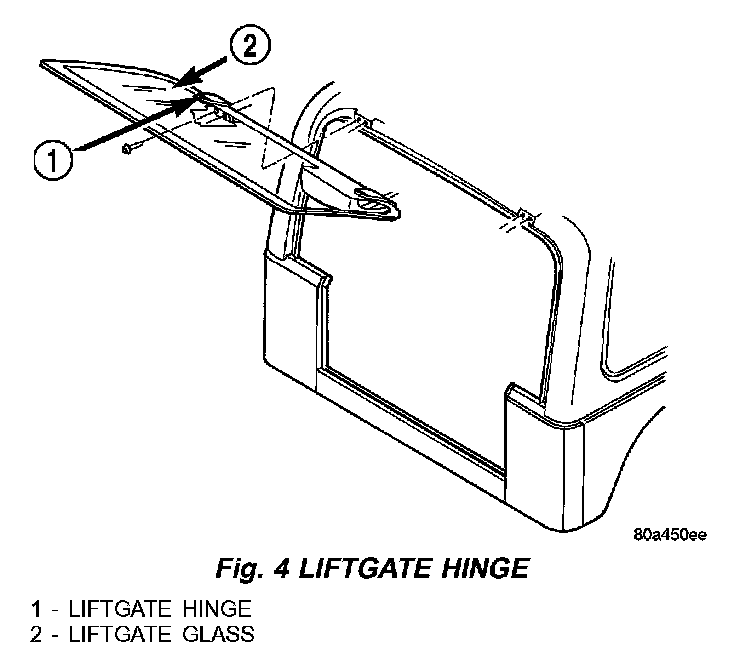

Fig. 4:

6. Mark the position of the hinge in the top and remove the bolts attaching the hinge to the top (Fig. 4).

INSTALLATION

1. Align and position the hinge on the top and install the bolts.
2. Install the nut attaching the liftgate hinge to the liftgate glass and tighten to 6 N.m (53 in.lbs.).
3. Install wiper motor cover.
4. Install the wiper blade.
