Window Switch: Installation: Rear

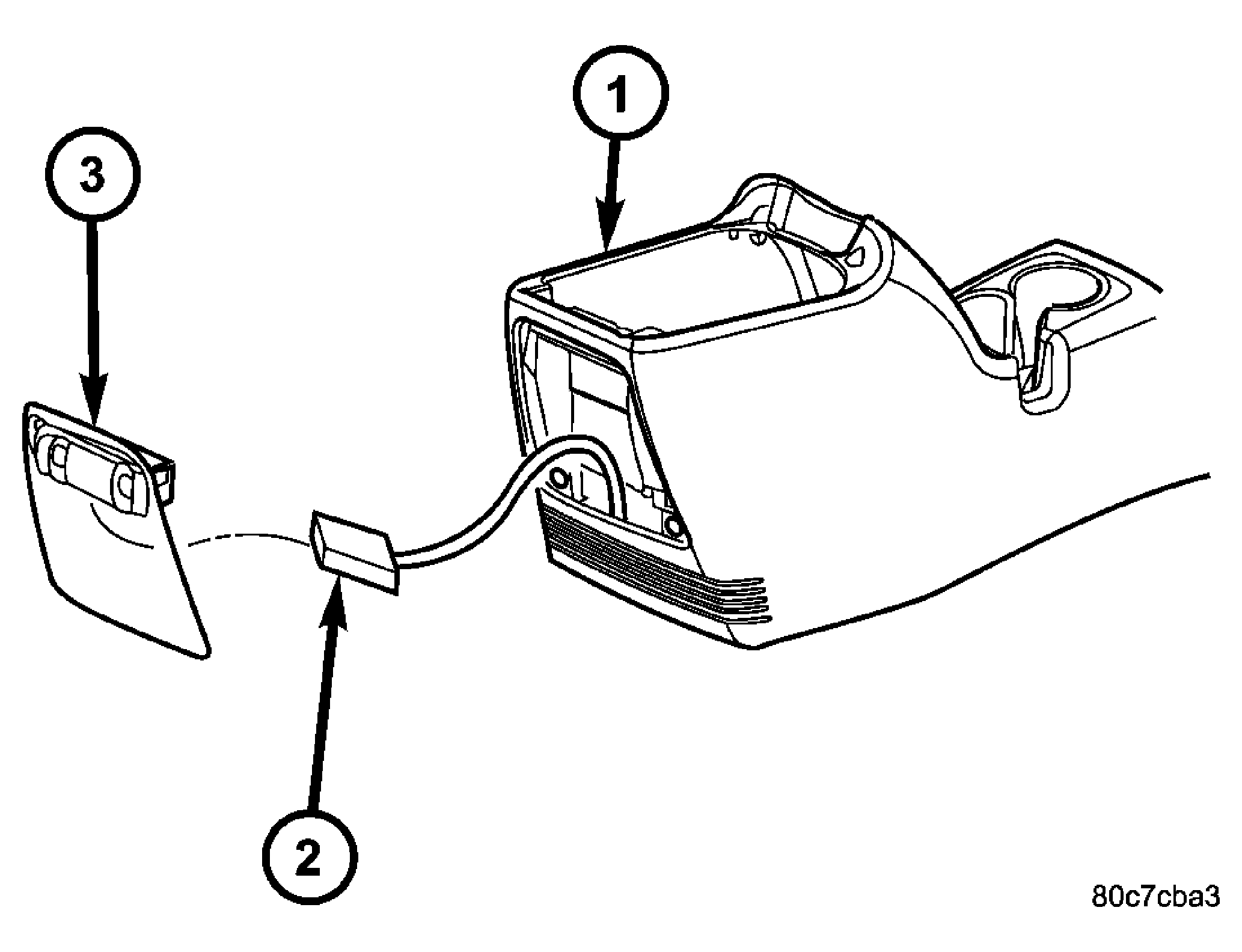

Fig 1: Rear Window Switch
GC0026574Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connector (2) to switch (3).
  2. Install switch into opening in console (1) and press into place.
  3. Connect battery negative cable.
