SWITCH, Speed Control: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

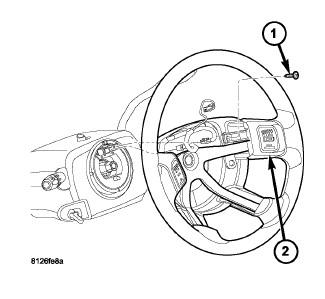

Fig 1: Speed Control Switch
GC0104362Courtesy of CHRYSLER LLC
  1. Position switch (2) to steering wheel.
  2. Install switch mounting screw (1) and tighten. Refer to SPECIFICATIONS  .
  3. Plug electrical connector into switch.
  4. Install airbag module. Refer to INSTALLATION .
  5. Connect negative battery cable to battery.
