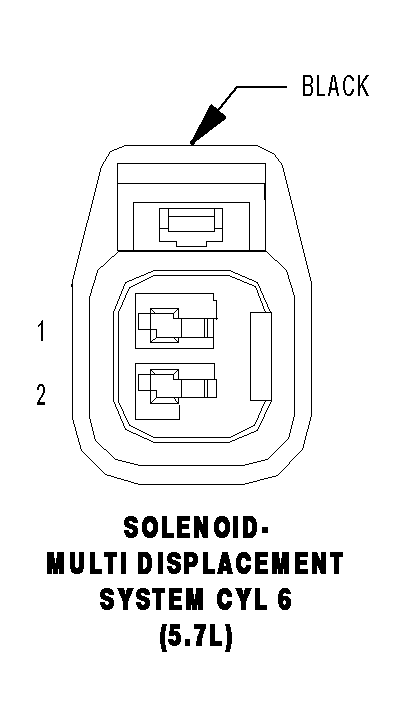

Multi Displacement System Cyl Solenoid 6 (5.7L) Connector End View
SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 6 (5.7L) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K453 20BR/DG |
MDS SOL CONTROL NO. 6 |
| 2 |
Z42 20BK/LG |
GROUND |
