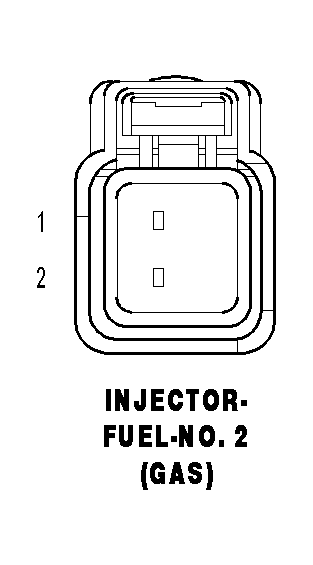

Fuel Injector 2 (Gas) Connector End View
INJECTOR-FUEL-NO. 2 (GAS) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K12 16BR/DB |
INJECTOR CONTROL NO. 2 |
| 2 |
F42 16DG/LG |
FUSED ASD RELAY OUTPUT |
