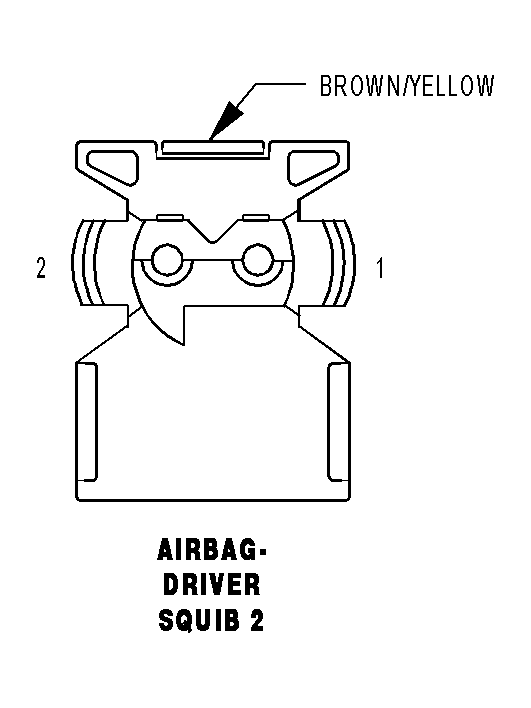

Driver Squib Airbag 2 Connector End View
AIRBAG-DRIVER SQUIB 2 - BROWN/YELLOW 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R363 20LG/WT |
DRIVER SQUIB 2 LINE 1 |
| 2 |
R361 20LG/VT |
DRIVER SQUIB 2 LINE 2 |
