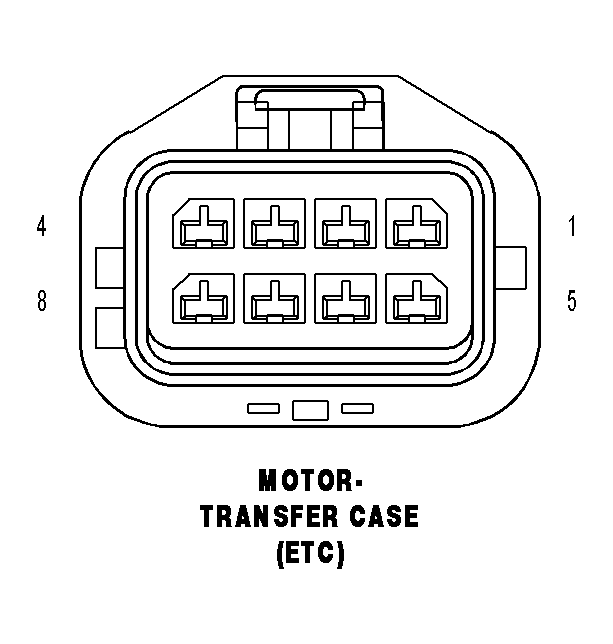

Transfer Case Motor (ETC) Connector End View
MOTOR-TRANSFER CASE (ETC) - 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K504 20BR | DRIVETRAIN 5 VOLT SUPPLY |
| 2 | T313 20YL/LG | MODE SENSOR SIGNAL |
| 3 | K594 20BR/LG | DRIVETRAIN SENSOR RETURN |
| 4 | T315 14YL/BR | SHIFT MOTOR CONTROL A |
| 5 | T316 14YL/GY | SHIFT MOTOR CONTROL B |
| 6 | T301 20DG/YL | SWITCHED BATTERY SOLENOID SUPPLY |
| 7 | T317 20YL/TN | TRANSFER CASE MOTOR LOCK SIGNAL |
| 8 | - | - |
