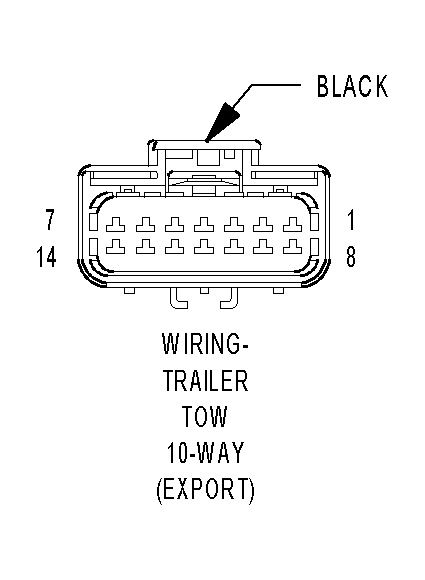

Trailer Tow Electrical (Export) Connector End View
WIRING-TRAILER TOW 10-WAY (EXPORT) - BLACK 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L62 18WT/OR | RIGHT REAR TURN SIGNAL CONTROL |
| 2 | L240 18WT | FUSED B(+) |
| 3 | Z923 14BK | GROUND |
| 4 | L63 18WT/DG | LEFT REAR TURN SIGNAL CONTROL |
| 5 | L70 18WT/GY | FUSED PARK LAMP RELAY OUTPUT |
| 6 | L650 18WT/YL | BRAKE LAMP SWITCH OUTPUT |
| 7 | L7 18WT/YL | FUSED PARK LAMP RELAY OUTPUT |
| 8 | L111 18WT | BACKUP LAMP FEED |
| 9 | A930 14RD | POWER OUTLET RELAY OUTPUT |
| 10 | A930 14RD | POWER OUTLET RELAY OUTPUT |
| 11 | Z923 14BK | GROUND |
| 12 | B400 14DG | TRAILER TOW ELECTRIC BRAKE OUTPUT |
| 13 | Z923 14BK | GROUND |
| 14 | - | - |
