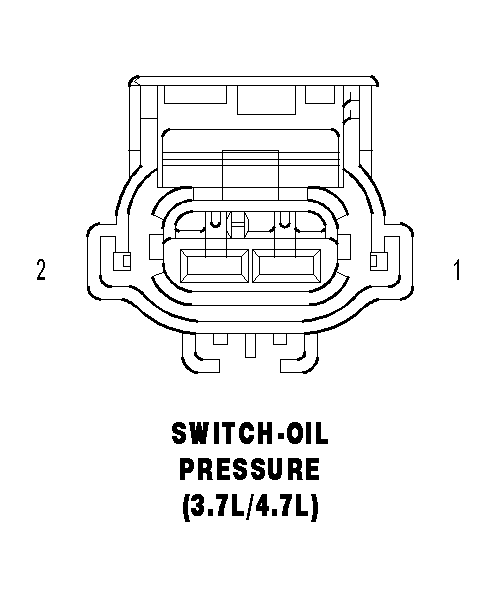

Oil Pressure Switch (3.7L/4.7L) Connector End View
SWITCH-OIL PRESSURE (3.7L/4.7L) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G6 20VT/GY |
ENGINE OIL PRESSURE SIGNAL |
| 2 |
- |
- |
