Schematics And Diagrams

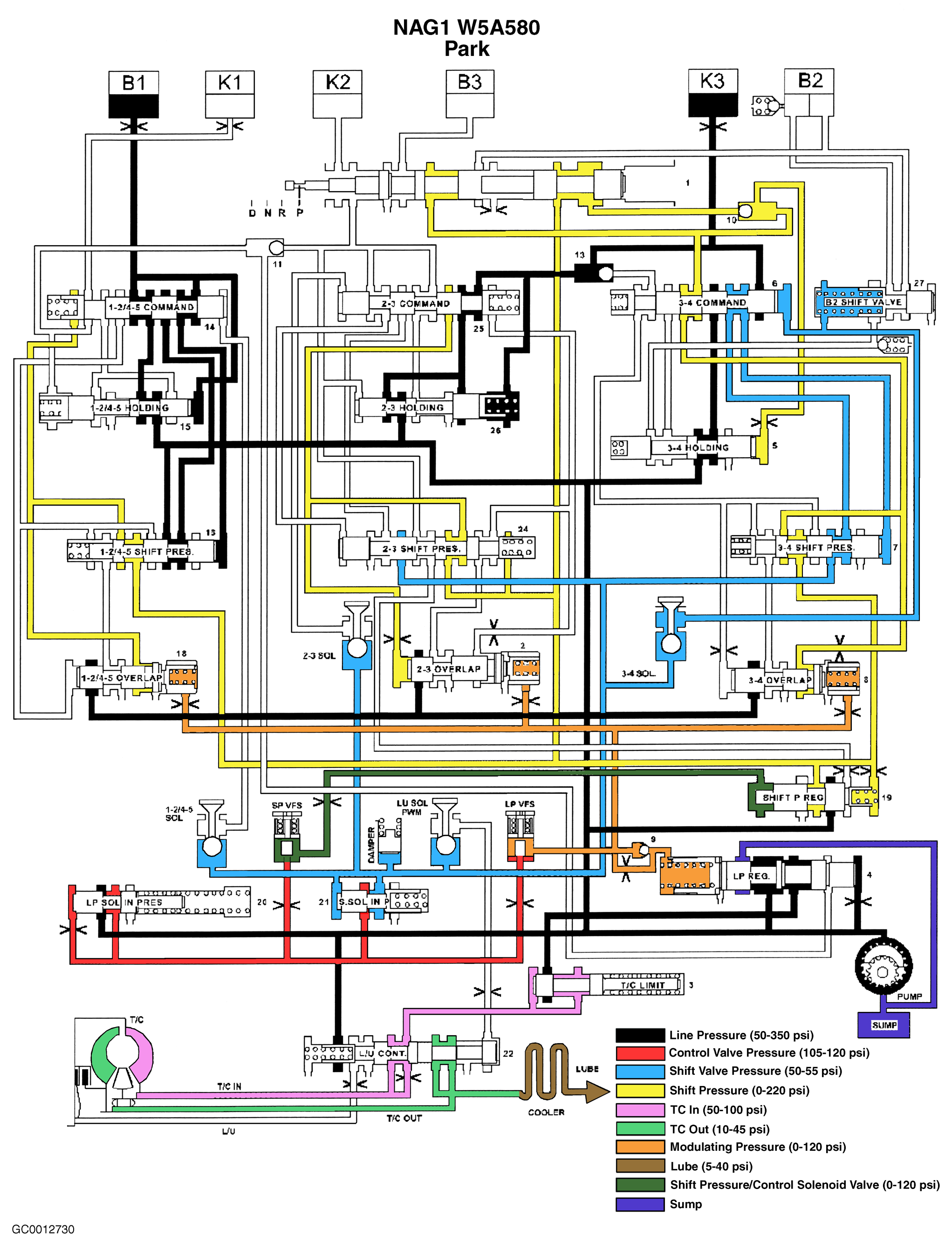

Fig 1: Hydraulic Flow In Park
Courtesy of DAIMLERCHRYSLER CORP.

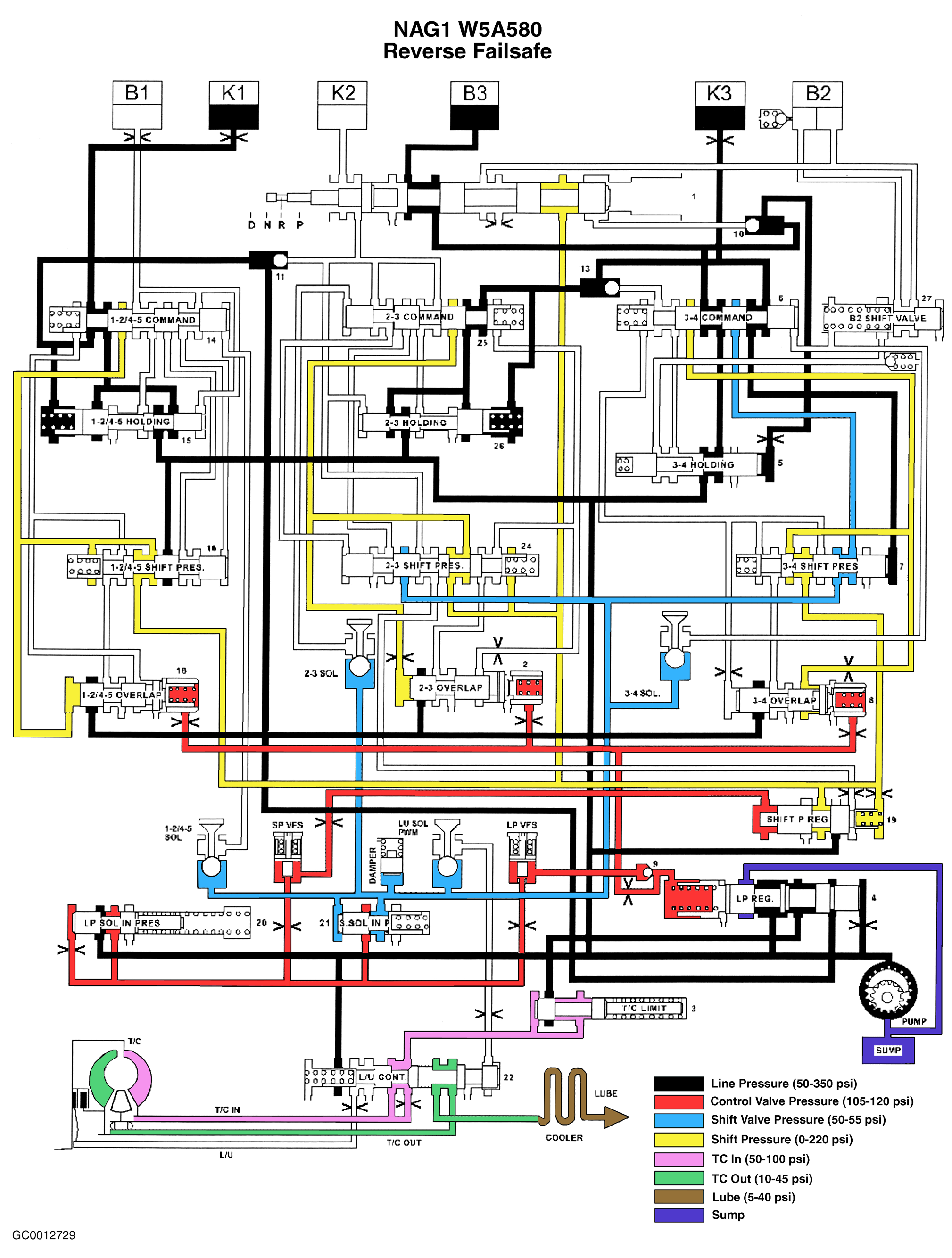

Fig 2: Hydraulic Flow In Reverse - Failsafe
Courtesy of DAIMLERCHRYSLER CORP.

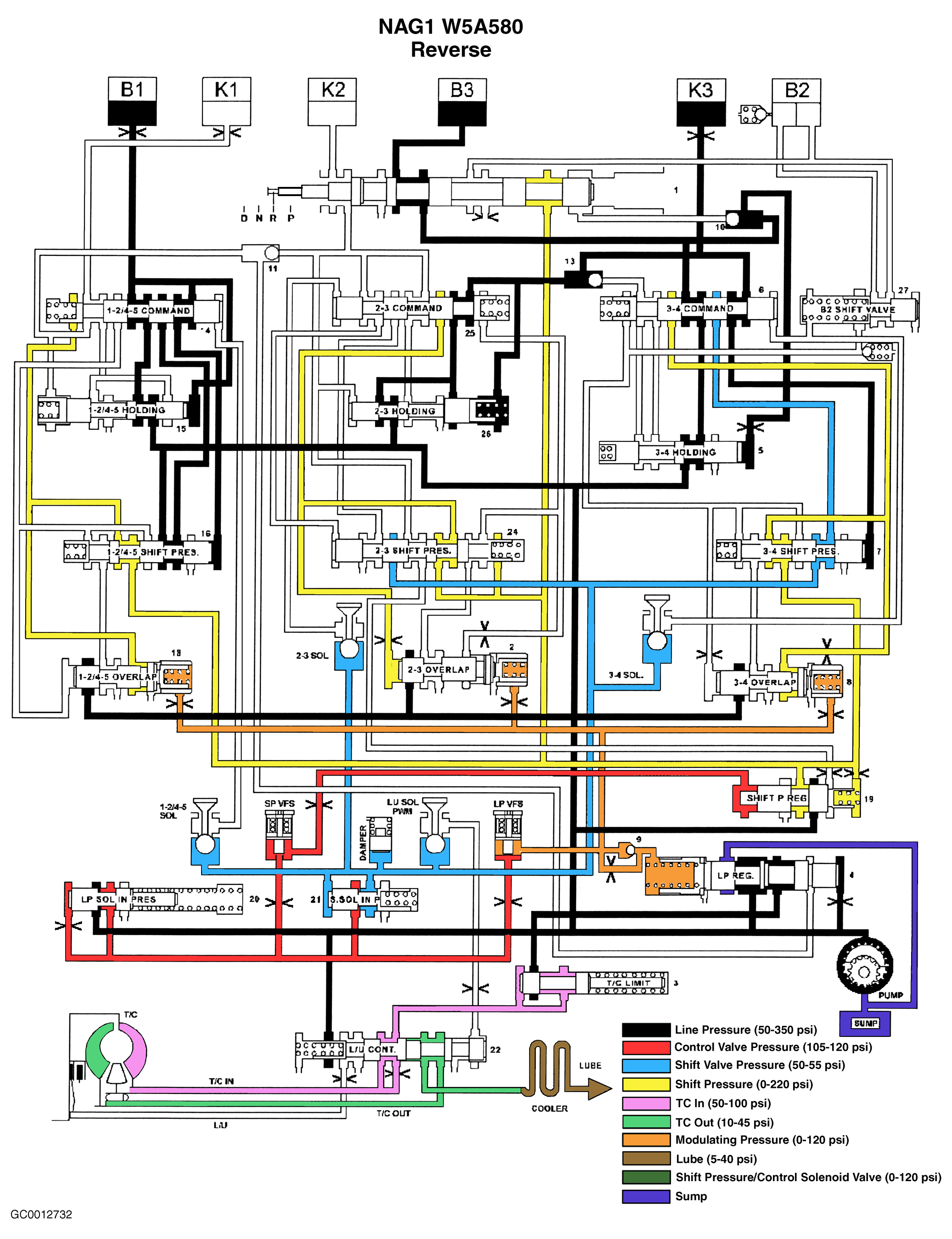

Fig 3: Hydraulic Flow In Reverse
Courtesy of DAIMLERCHRYSLER CORP.

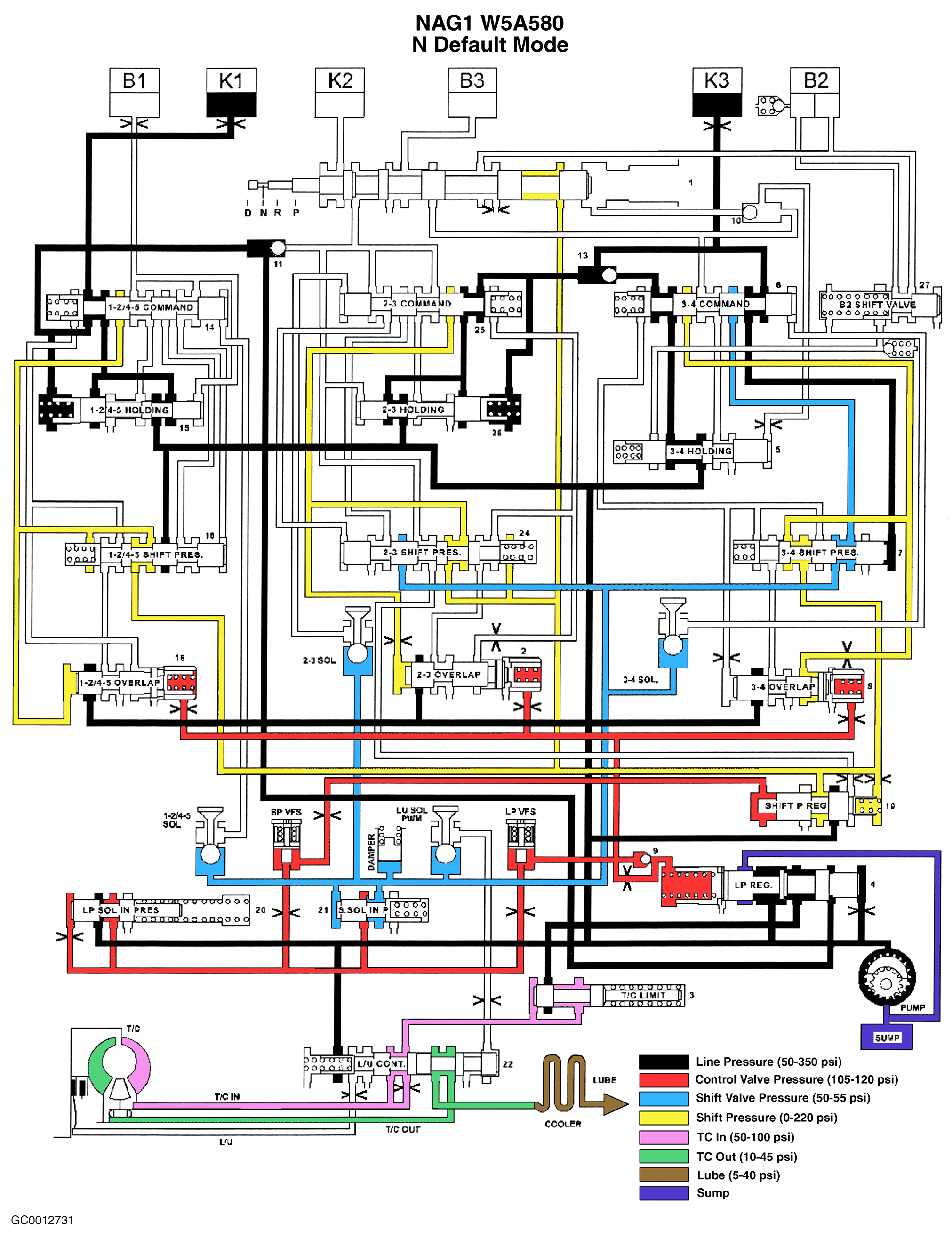

Fig 4: Hydraulic Flow In Neutral - Default
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Hydraulic Flow In Neutral
Courtesy of DAIMLERCHRYSLER CORP.

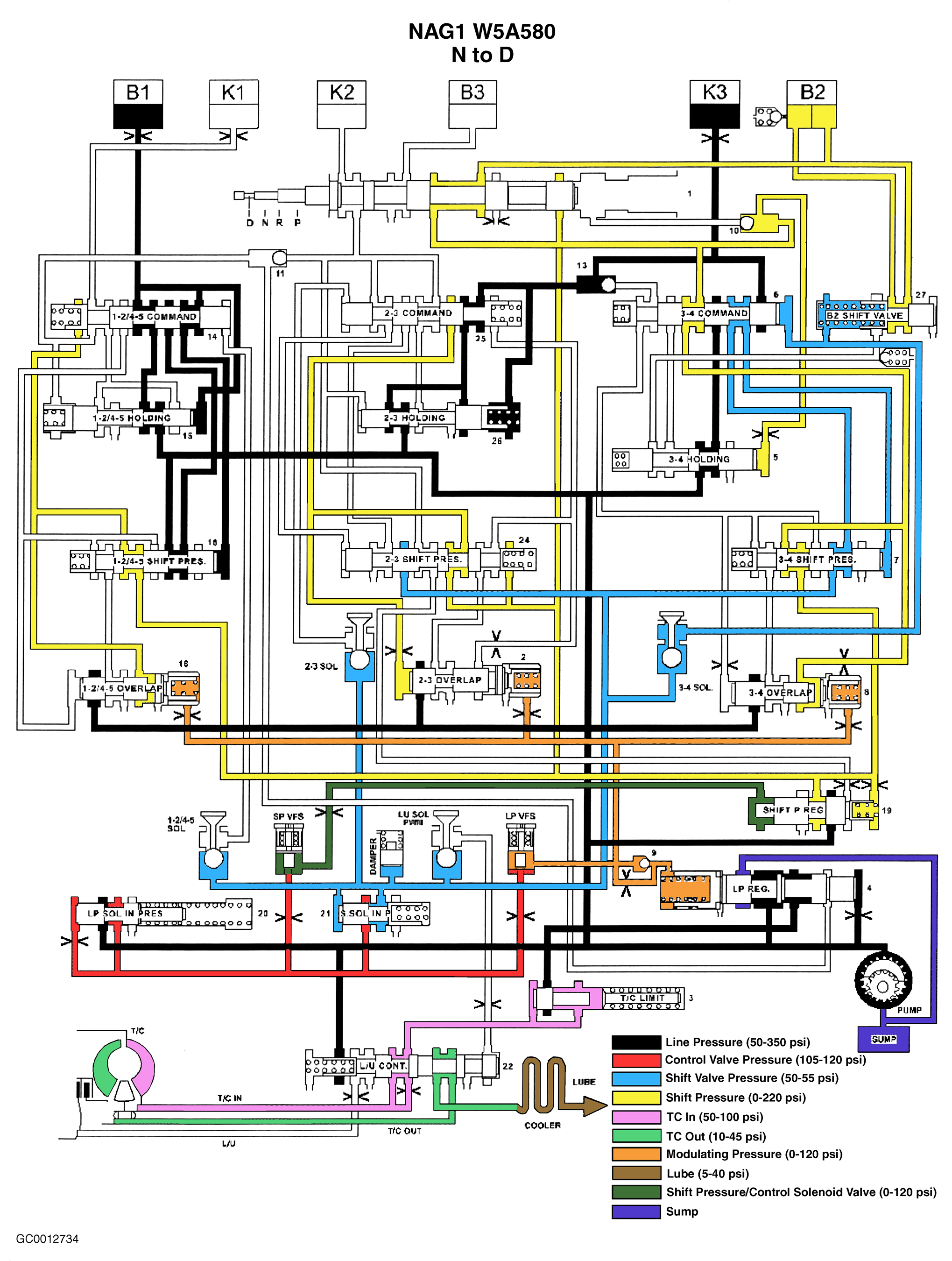

Fig 6: Hydraulic Flow In Neutral to Drive Transition
Courtesy of DAIMLERCHRYSLER CORP.

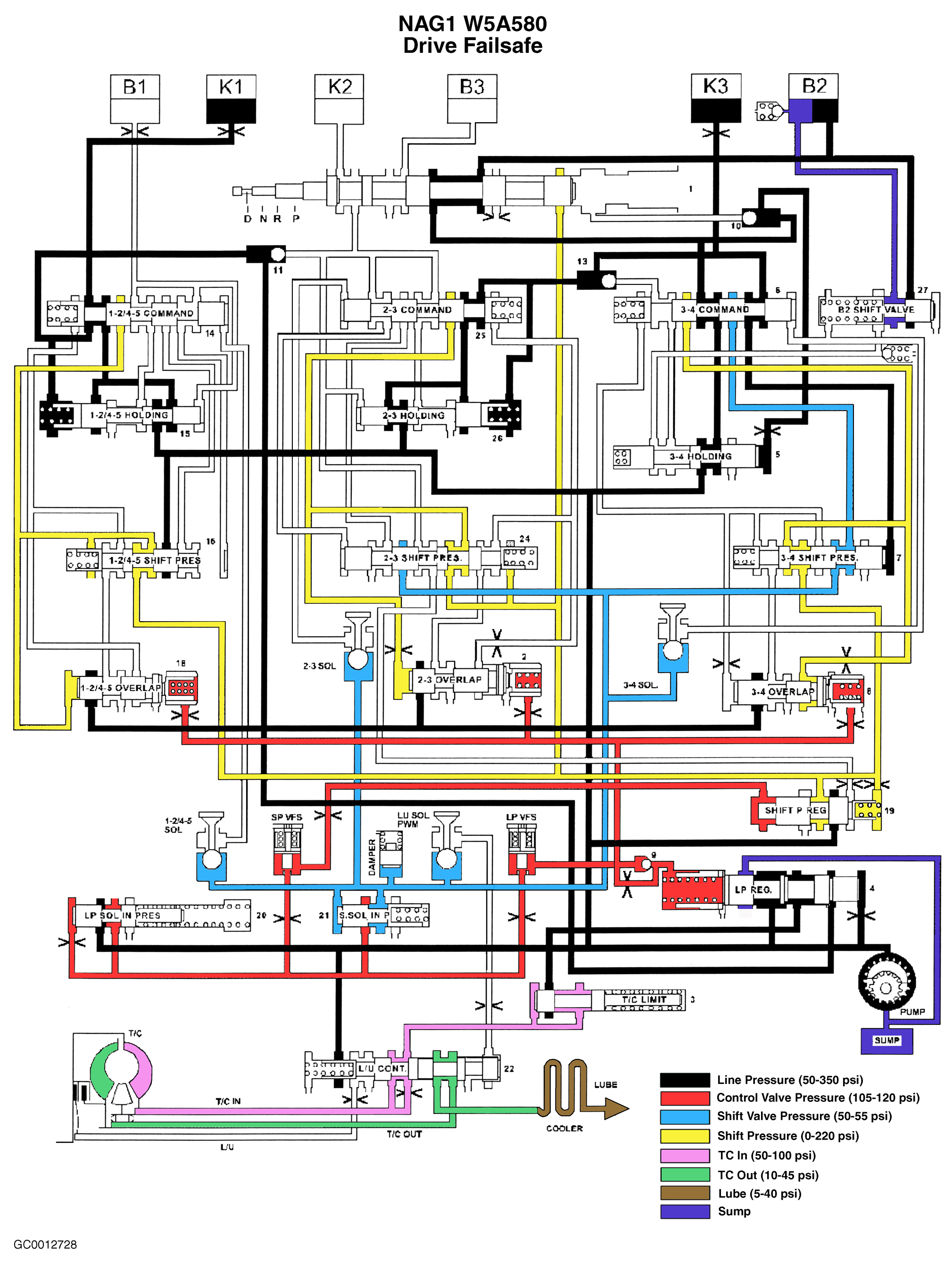

Fig 7: Hydraulic Flow In Drive - Failsafe
Courtesy of DAIMLERCHRYSLER CORP.

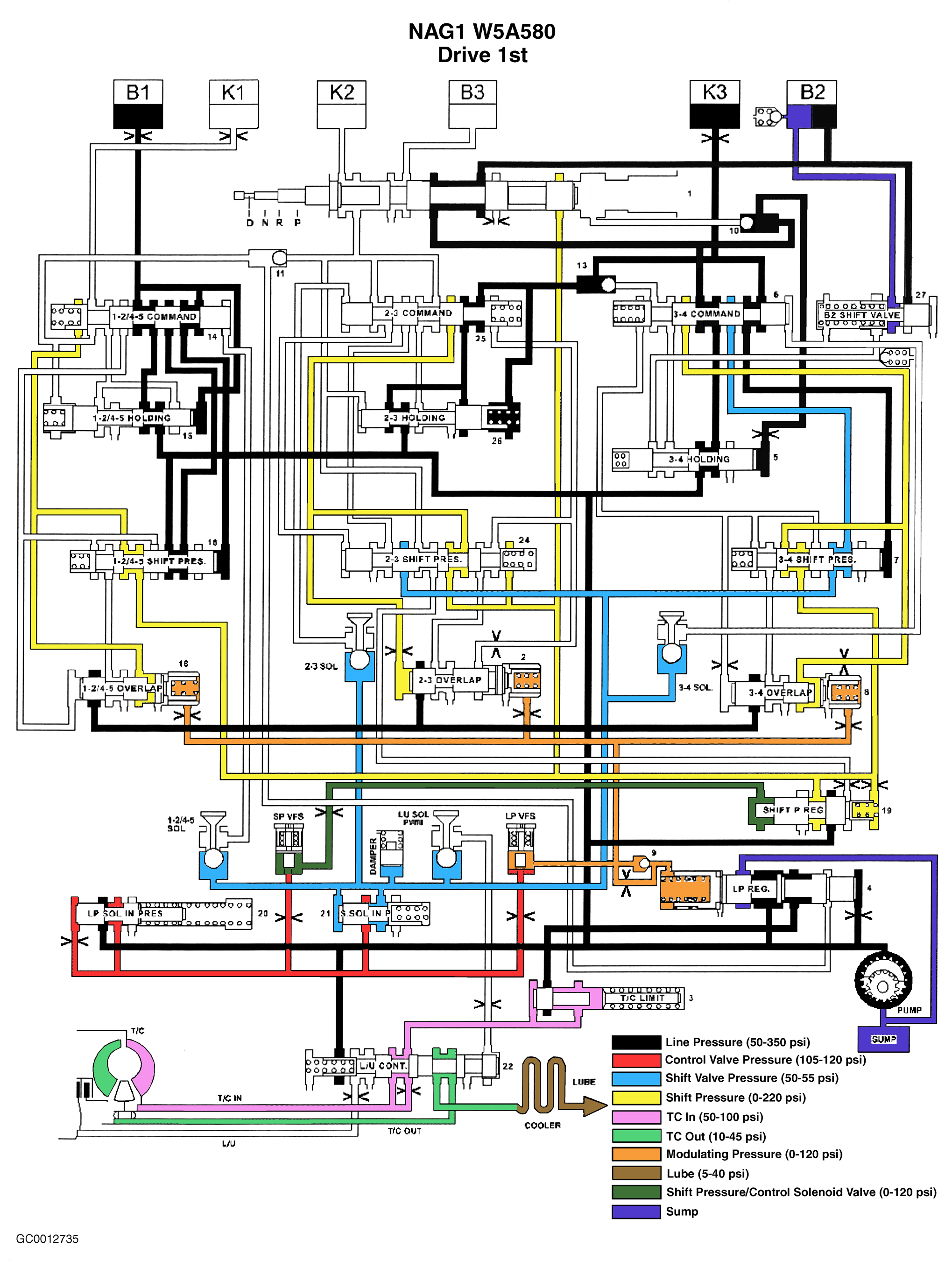

Fig 8: Hydraulic Flow In Drive - First Gear
Courtesy of DAIMLERCHRYSLER CORP.

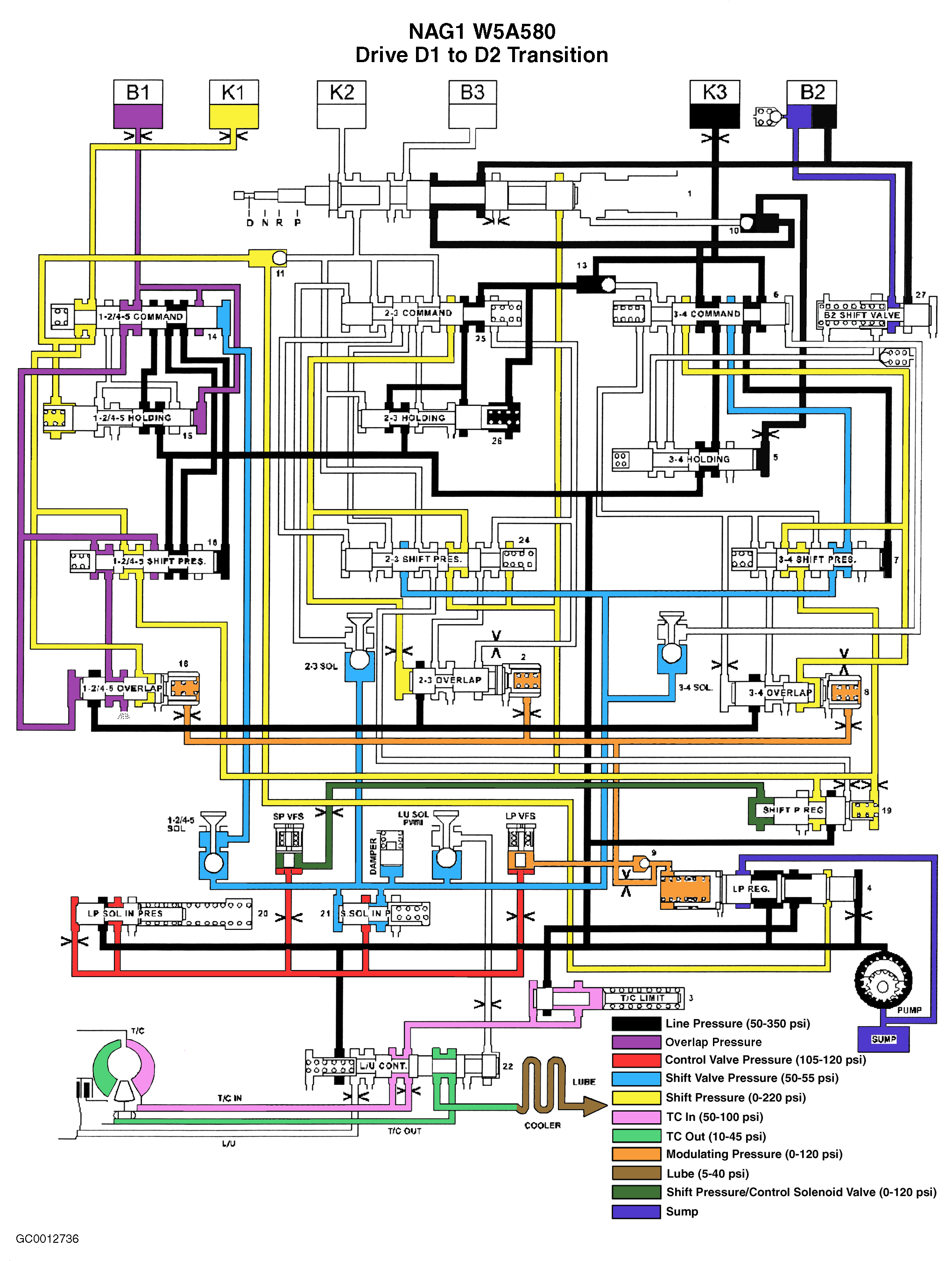

Fig 9: Hydraulic Flow In Drive - First to Second Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

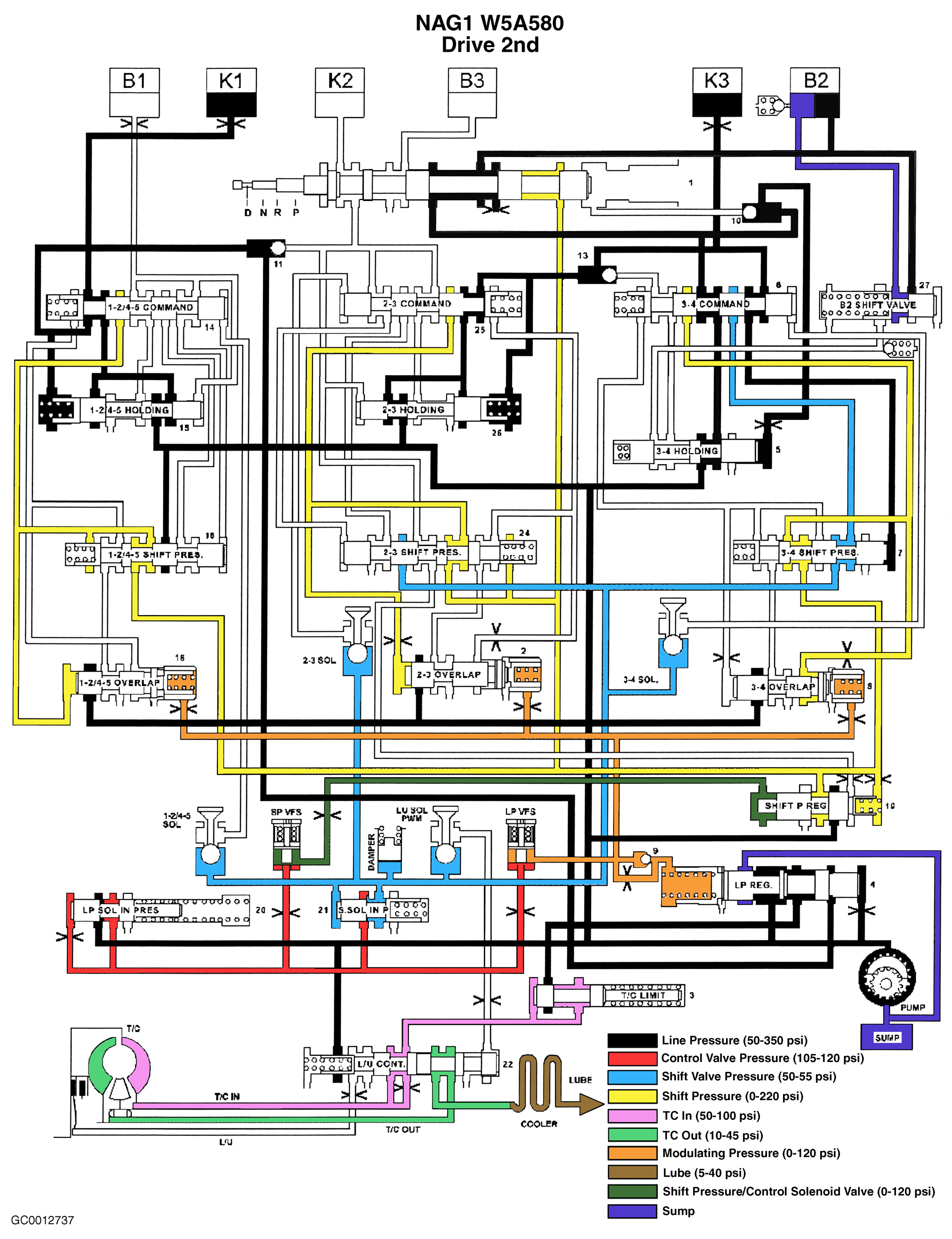

Fig 10: Hydraulic Flow In Drive - Second Gear
Courtesy of DAIMLERCHRYSLER CORP.

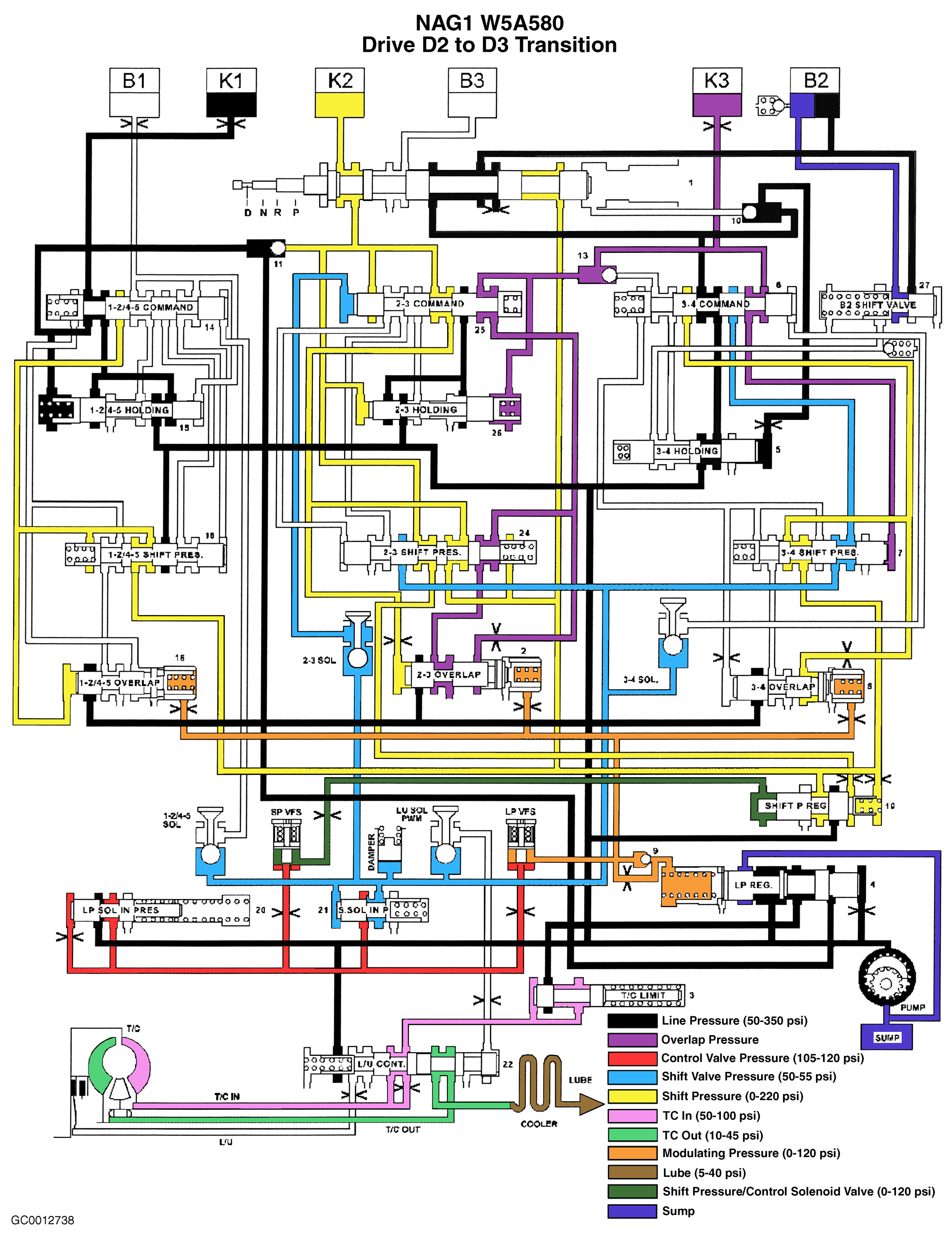

Fig 11: Hydraulic Flow In Drive - Second to Third Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

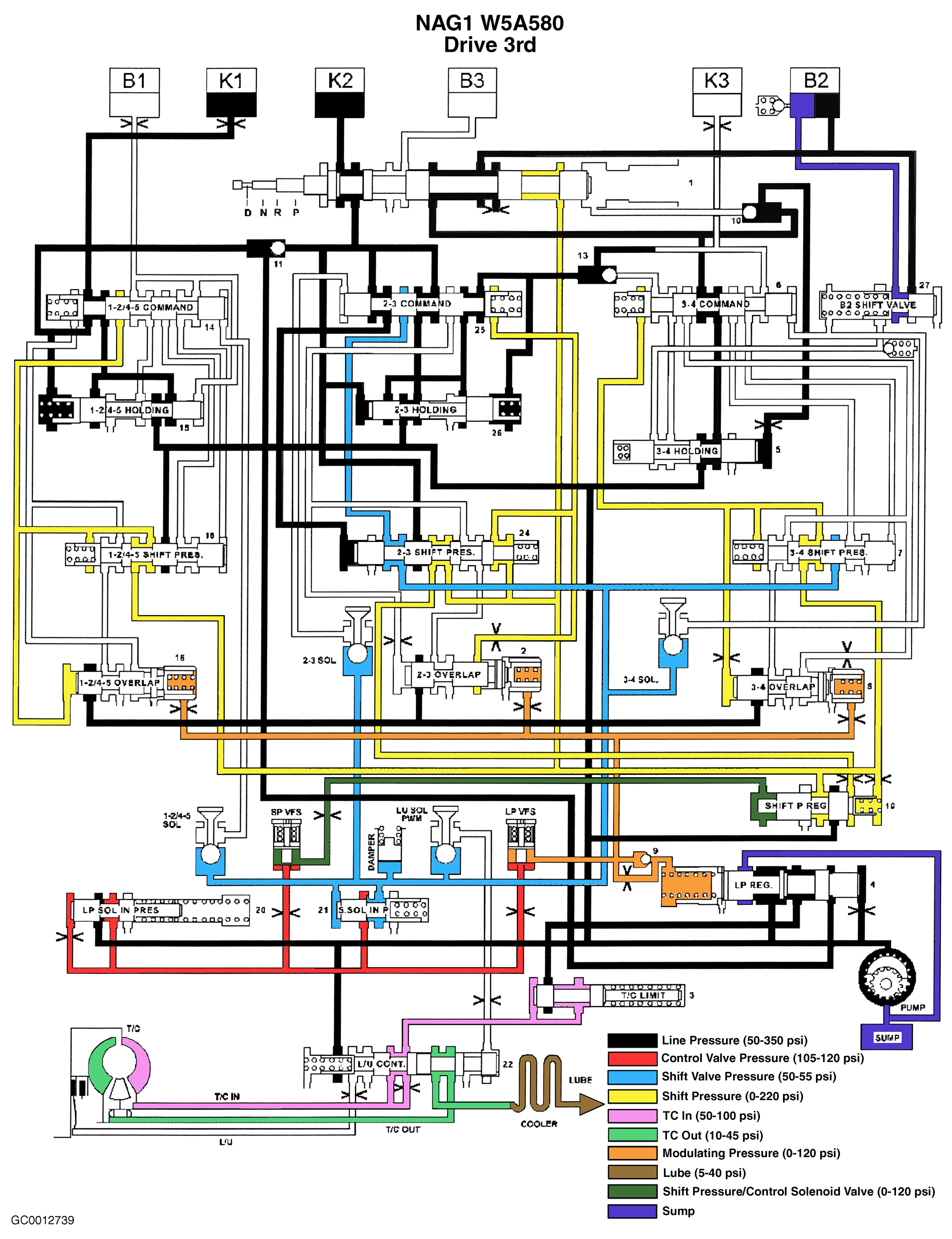

Fig 12: Hydraulic Flow In Drive - Third Gear
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Hydraulic Flow In Drive - Third to Fourth Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

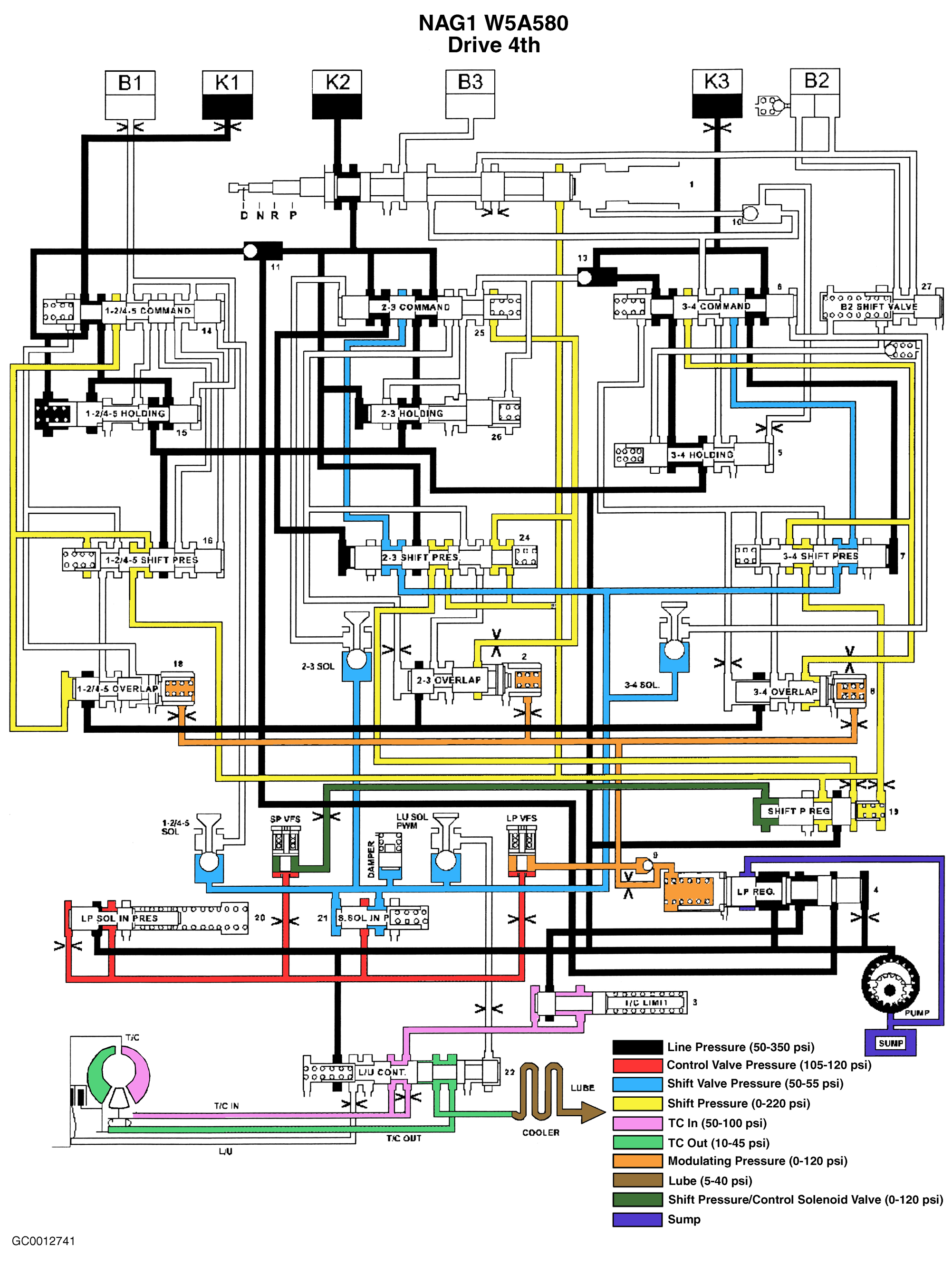

Fig 14: Hydraulic Flow In Drive - Fourth Gear
Courtesy of DAIMLERCHRYSLER CORP.

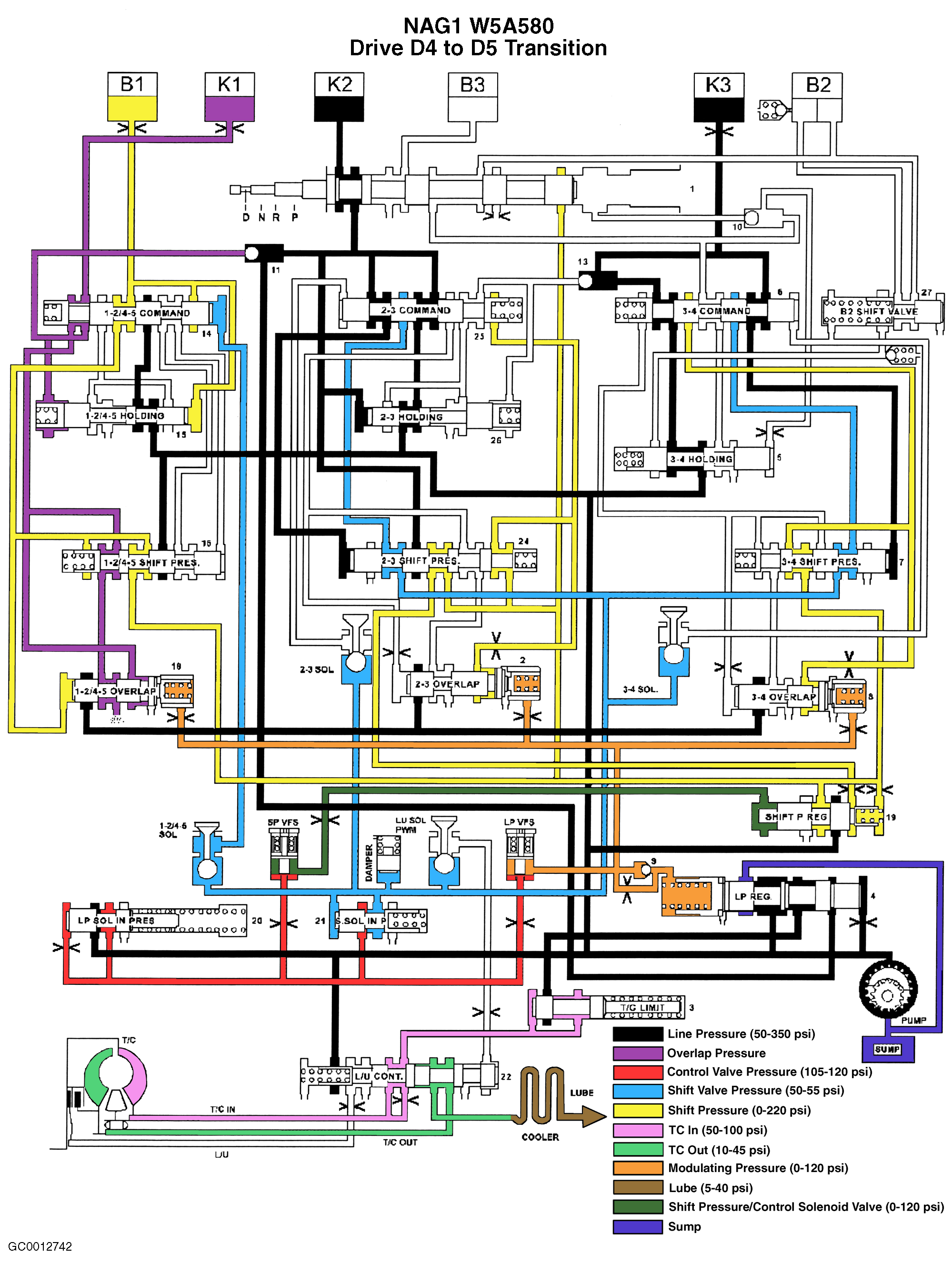

Fig 15: Hydraulic Flow In Drive - Fourth to Fifth Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

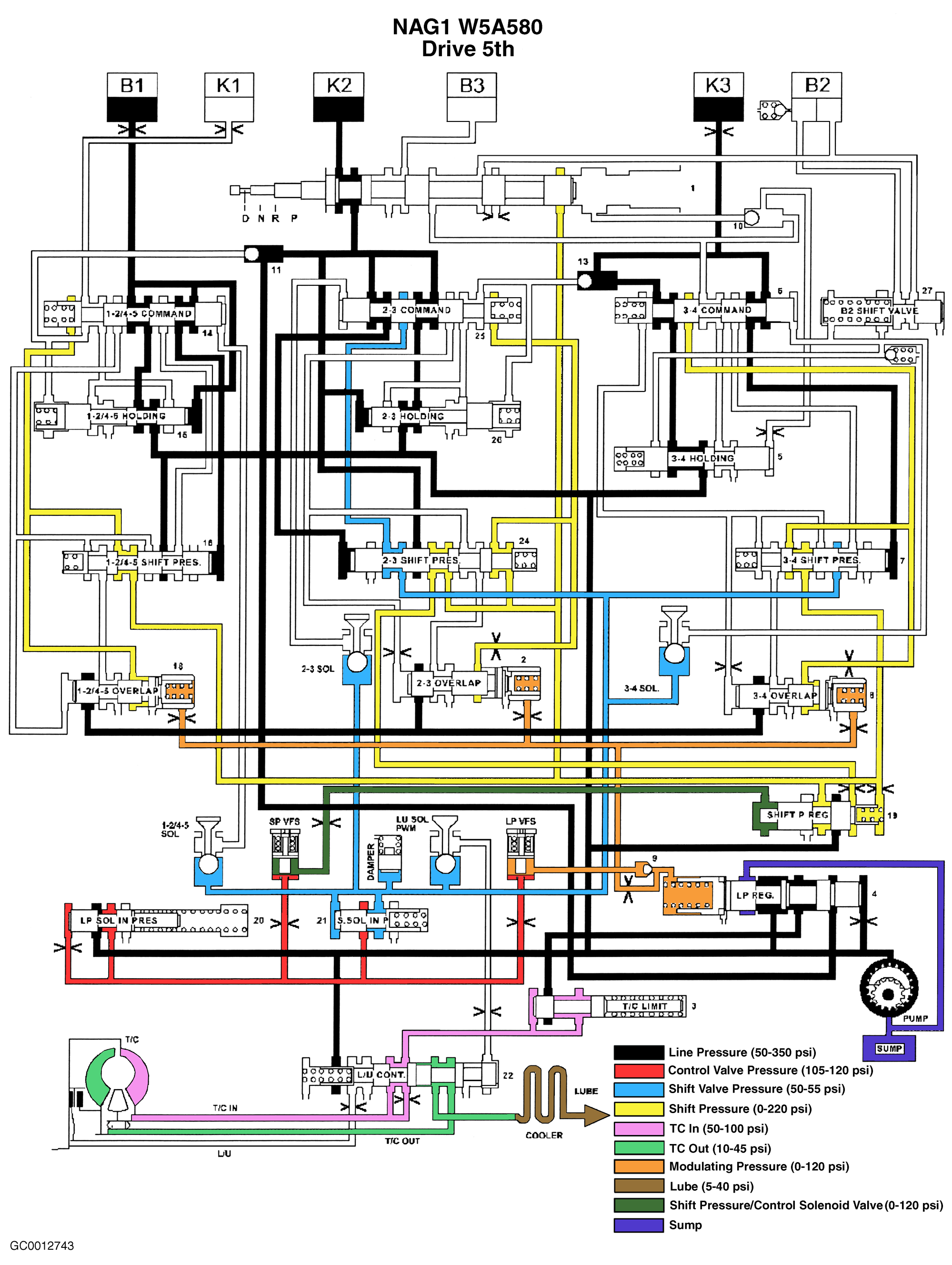

Fig 16: Hydraulic Flow In Drive - Fifth Gear
Courtesy of DAIMLERCHRYSLER CORP.

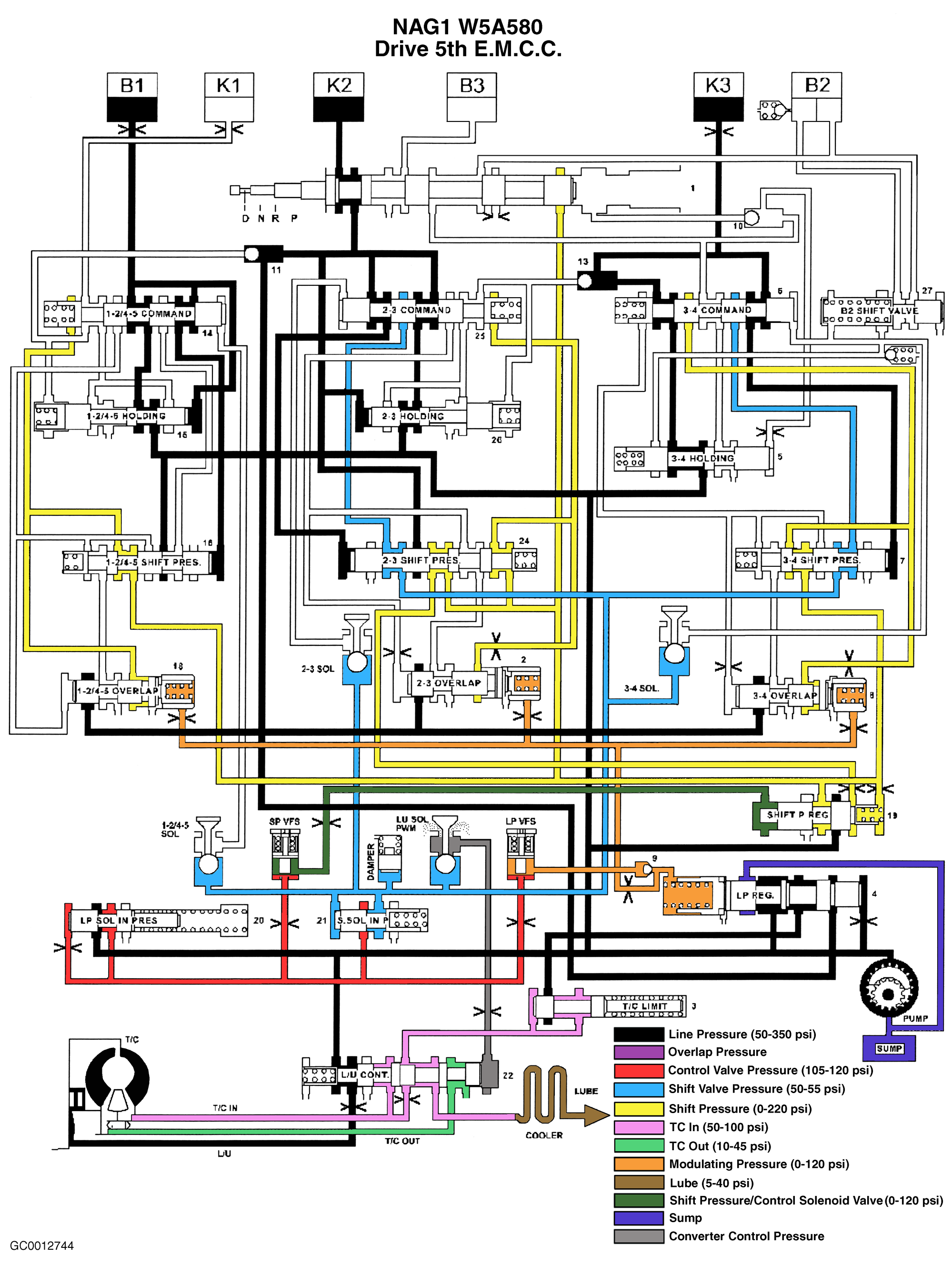

Fig 17: Hydraulic Flow In Drive - Fifth Gear - EMCC
Courtesy of DAIMLERCHRYSLER CORP.

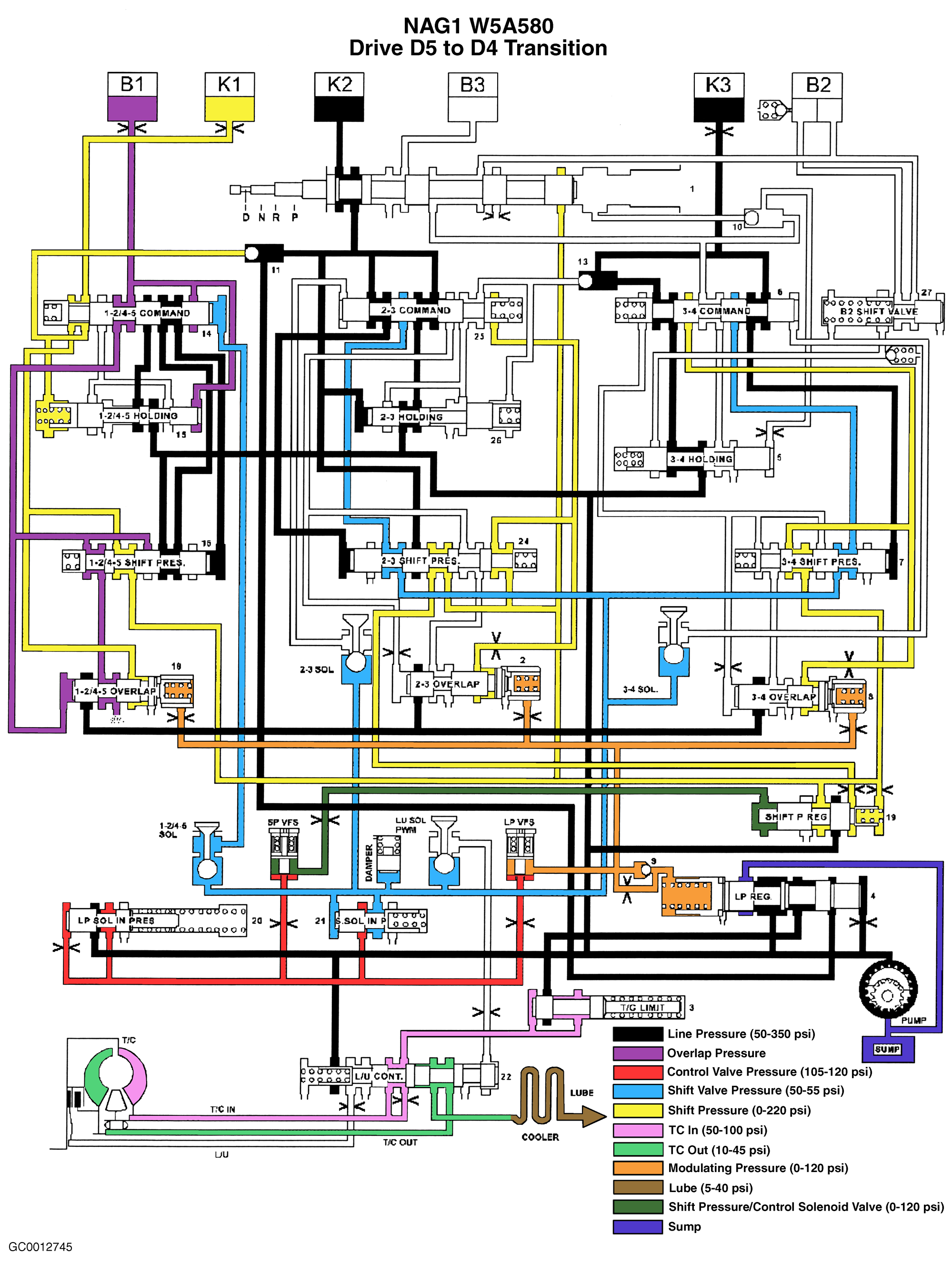

Fig 18: Hydraulic Flow In Drive - Fifth to Fourth Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

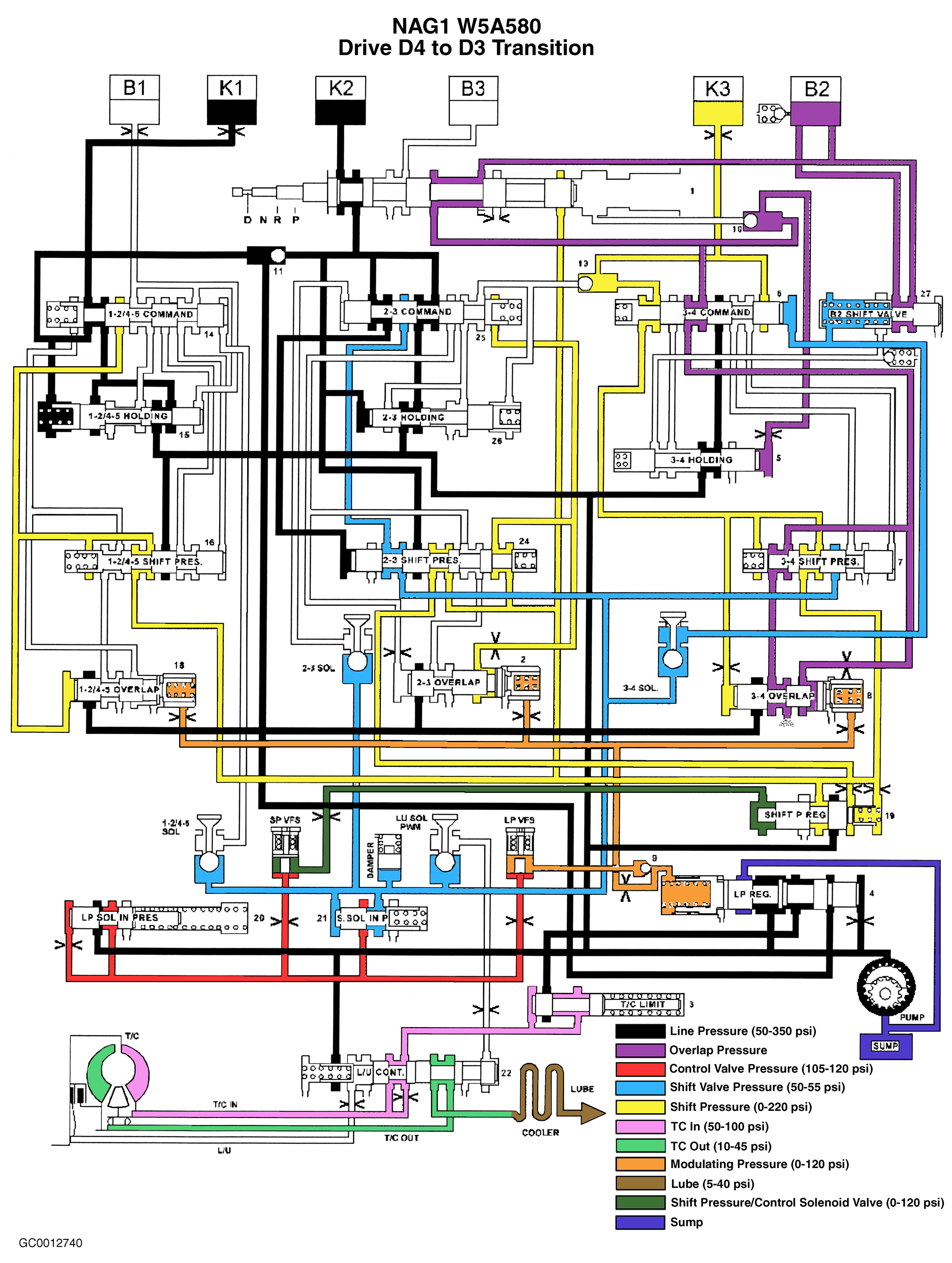

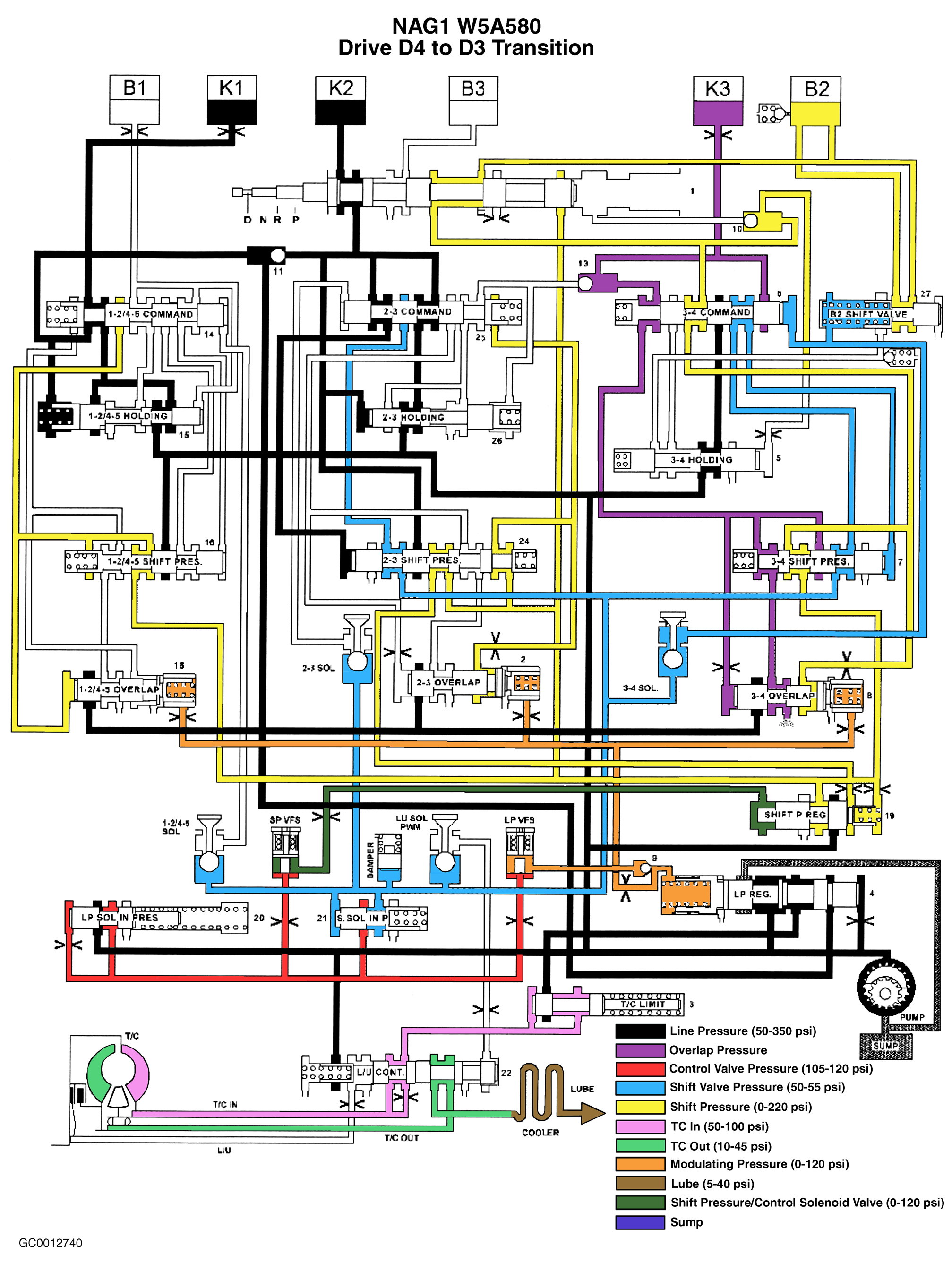

Fig 19: Hydraulic Flow In Drive - Fourth to Third Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

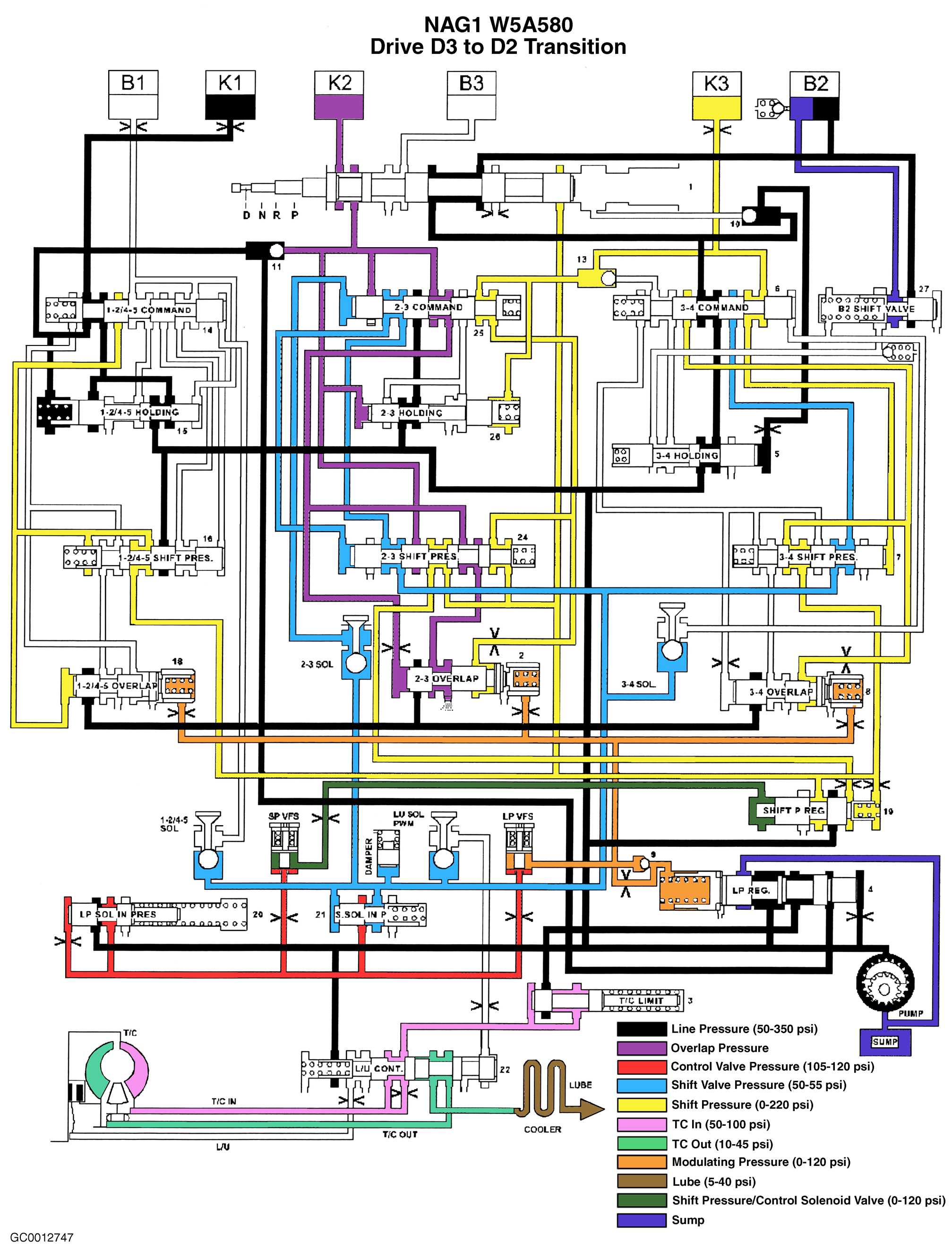

Fig 20: Hydraulic Flow In Drive - Third to Second Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

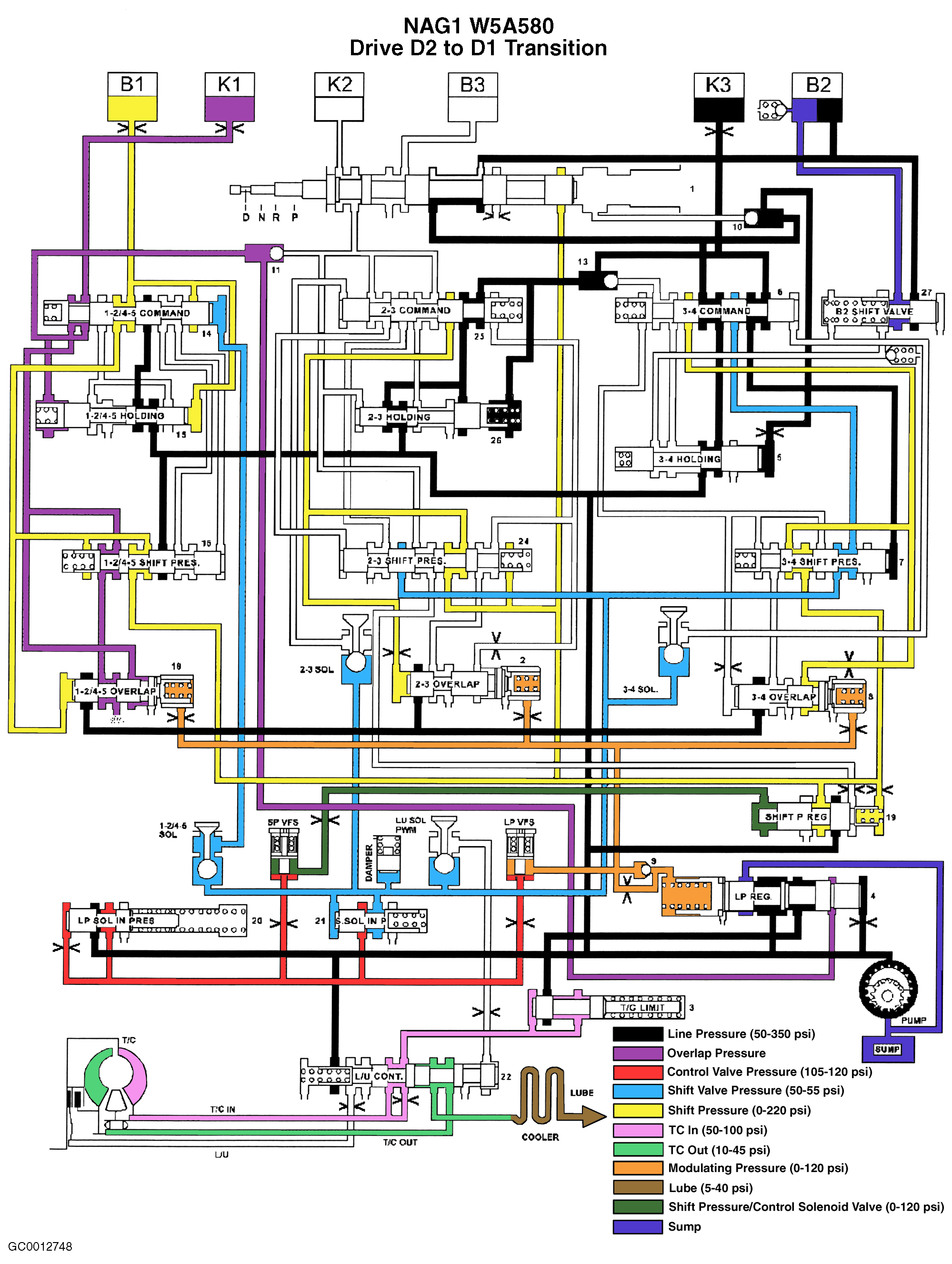

Fig 21: Hydraulic Flow In Drive - Second to First Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.
