Sensor-Ambient Air Temperature: Description

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

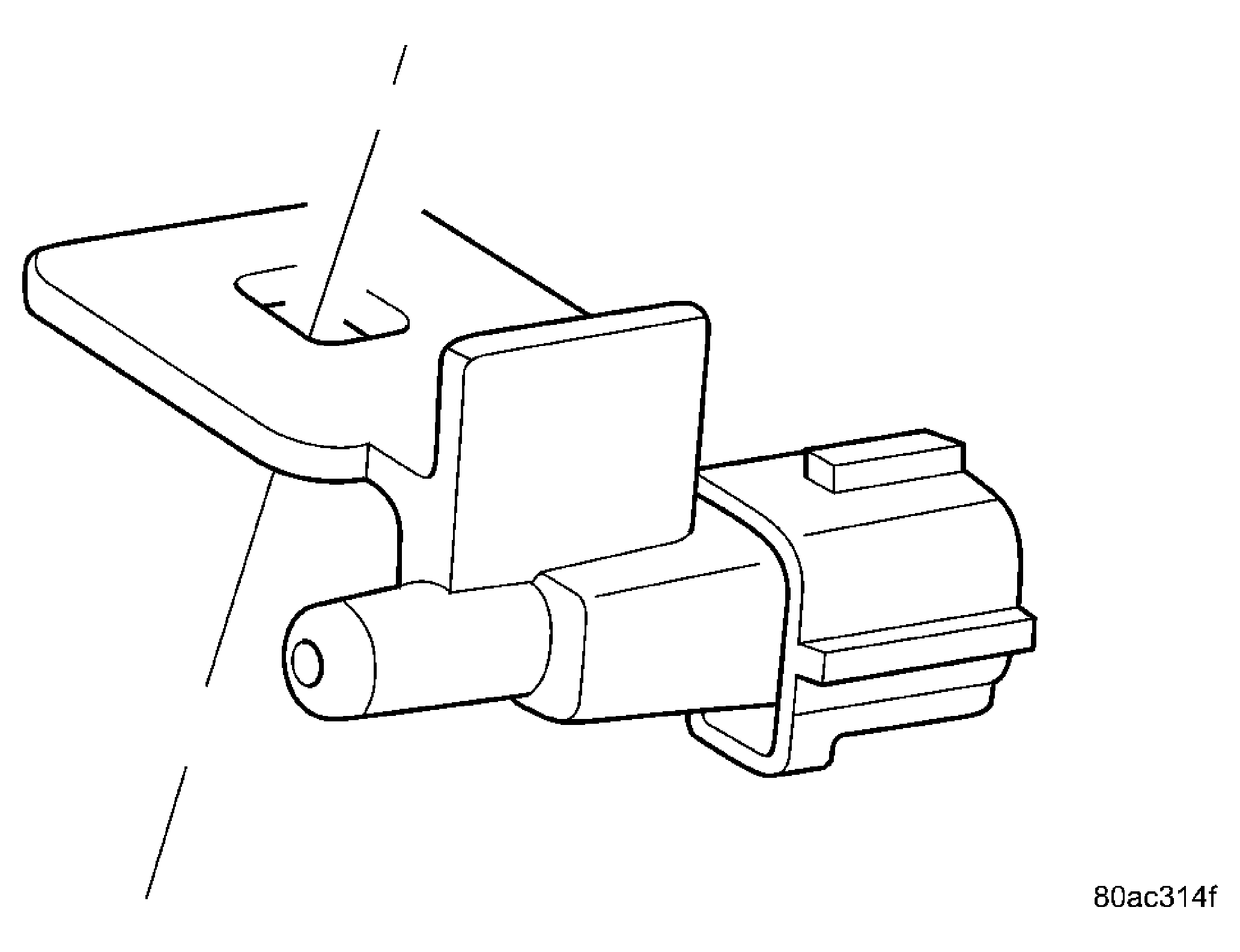

Fig 1: Identifying Ambient Air Temperature Sensor
GC0010259Courtesy of CHRYSLER LLC

The ambient air temperature sensor is a variable resistor that monitors the air temperature outside of the vehicle. The ATC system uses the sensor data to maintain optimum cabin temperature levels. The ambient air temperature sensor is mounted onto the top of the front bumper beam.
