Intrusion Module: Removal

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

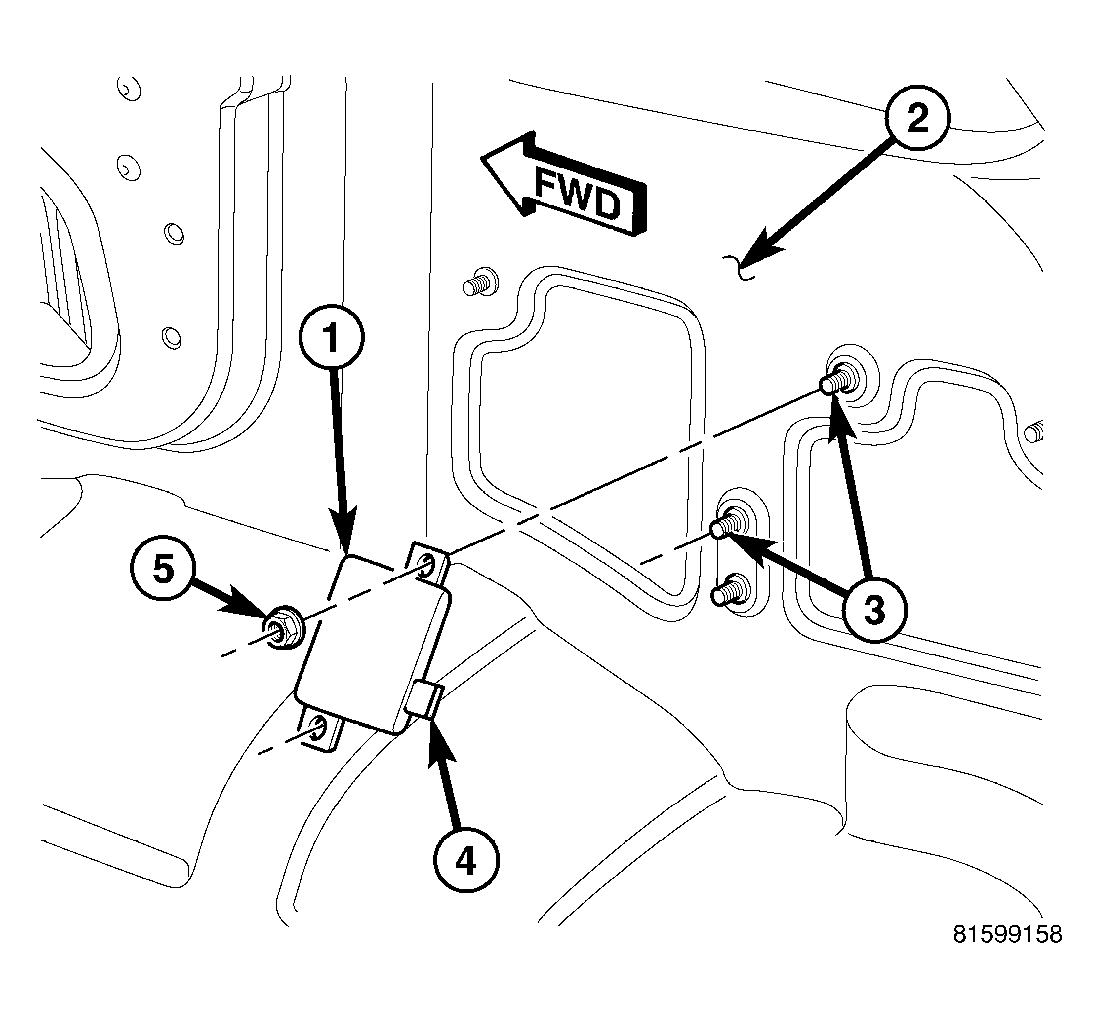

Fig 1: Removing/Installing Intrusion Module
GC0047371Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim from the inside of the right quarter inner panel (2). Refer to REMOVAL .
  3. Disconnect the take out of the body wire harness from the connector receptacle (4) on the rearward side of the intrusion module (1).
  4. Remove the two nuts (5) that secure the module to the studs (3) on the quarter inner panel.
  5. Remove the module from the studs on the quarter inner panel.
