Emission System: Emissions-Evaporative: Solenoid-EVAP/Purge: Installation

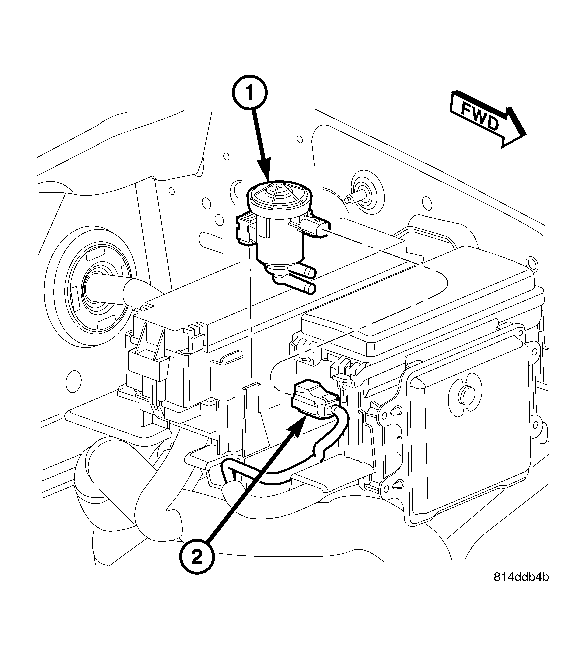

Fig 1: EVAP Solenoid Location
GC0028373Courtesy of DAIMLERCHRYSLER CORP.
  1. Install solenoid assembly (1) to mounting bracket.
  2. Connect vacuum harness.
  3. Connect electrical connector (2).
