Crankshaft Position Sensor (Diesel) Connector End View

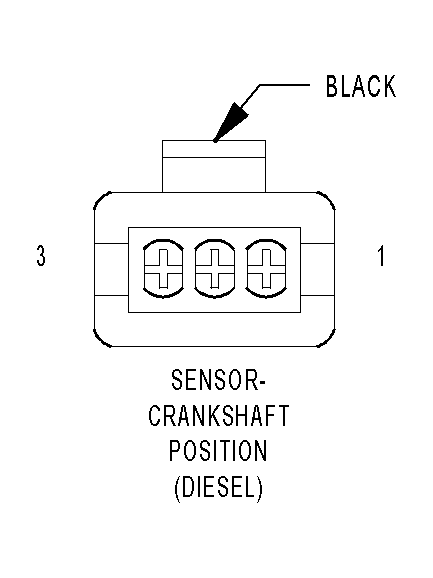

SENSOR-CRANKSHAFT POSITION (DIESEL) - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z753 20RD/VT |
CRANKSHAFT POSITION SENSOR GROUND |
| 2 |
K24 16DG/WT |
CRANKSHAFT POSITION SENSOR SIGNAL |
| 3 |
K853 16BR/BK |
CRANKSHAFT POSITION SENSOR 5 VOLT SUPPLY |
