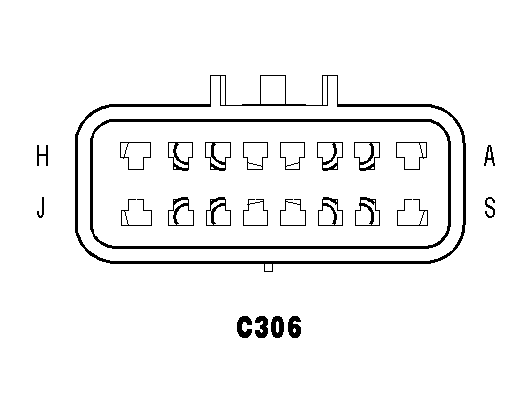

Driver Seat Side Inline Connector End View (C306)
C306 - (DRIVER SEAT SIDE)
| CAV | CIRCUIT |
| A | A33 16RD/YL |
| B | P205 16LG/DB (MEMORY) |
| C | G12 20VT/BR (MEMORY) |
| D | P206 16LG/TN (MEMORY) |
| E | P187 16LG/BR (HEATED SEATS) |
| F | G912 20VT/WT (MEMORY) |
| G | G11 20VT/TN (MEMORY) |
| H | Z911 14BK |
| J | - |
| K | D54 20WT (MEMORY/HEATED SEATS) |
| L | D55 20WT/OR (MEMORY/HEATED SEATS) |
| M | - |
| N | Q102 20OR/DB (MEMORY) |
| P | Q103 20OR/LG (MEMORY) |
| R | Q101 20OR/LB (MEMORY) |
| S | - |
