Commander Base, 3.7 K, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - Electrical Diagnostics
>>
DTC Troubleshooting
>>
C1073-Abs Pump Motor Control Circuit
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

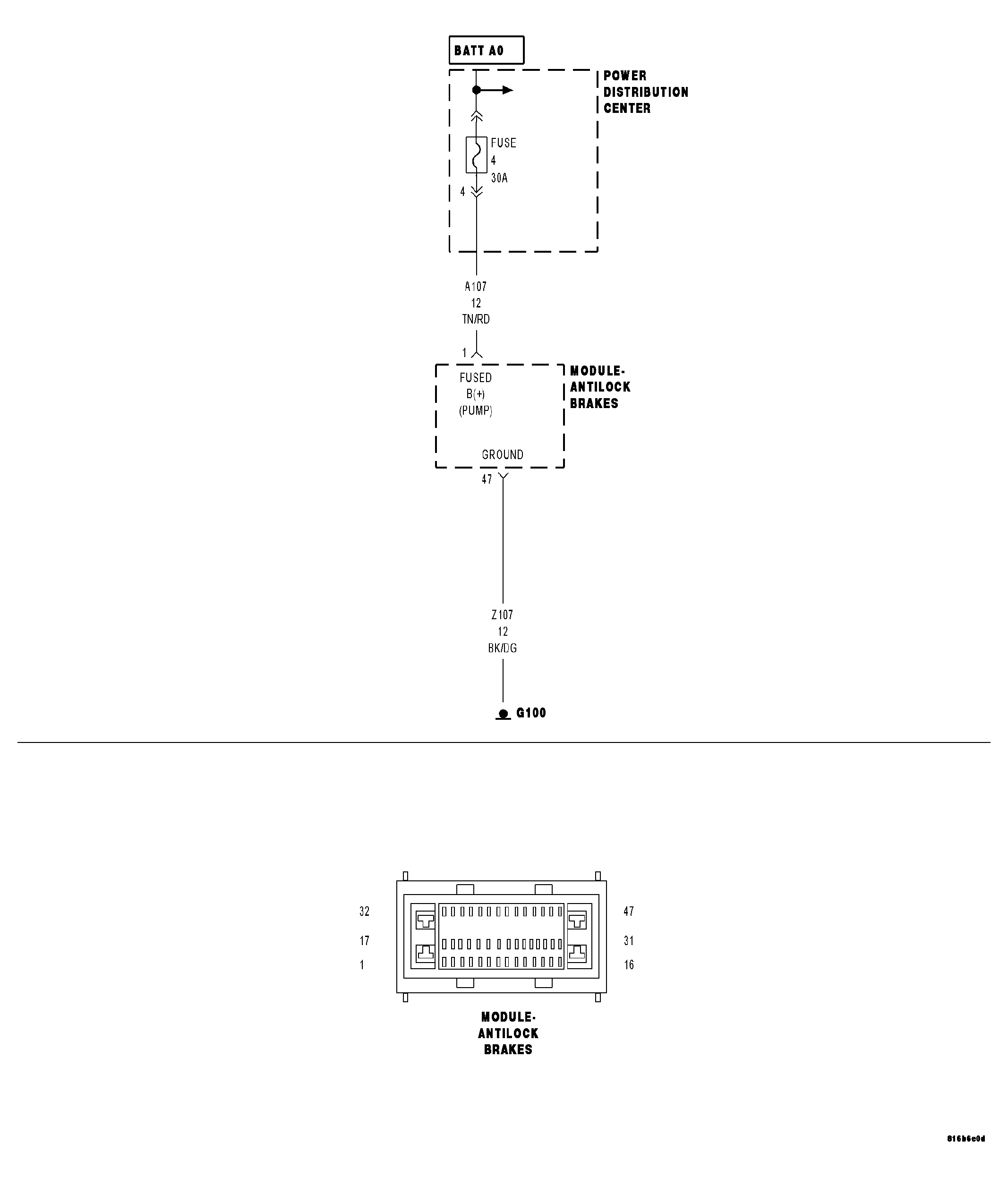

Fig 1: ABS Pump Motor Circuit Schematic
Courtesy of DAIMLERCHRYSLER CORP.
