Body - Interior & Exterior: Liftgate: Panel-Trim: Installation

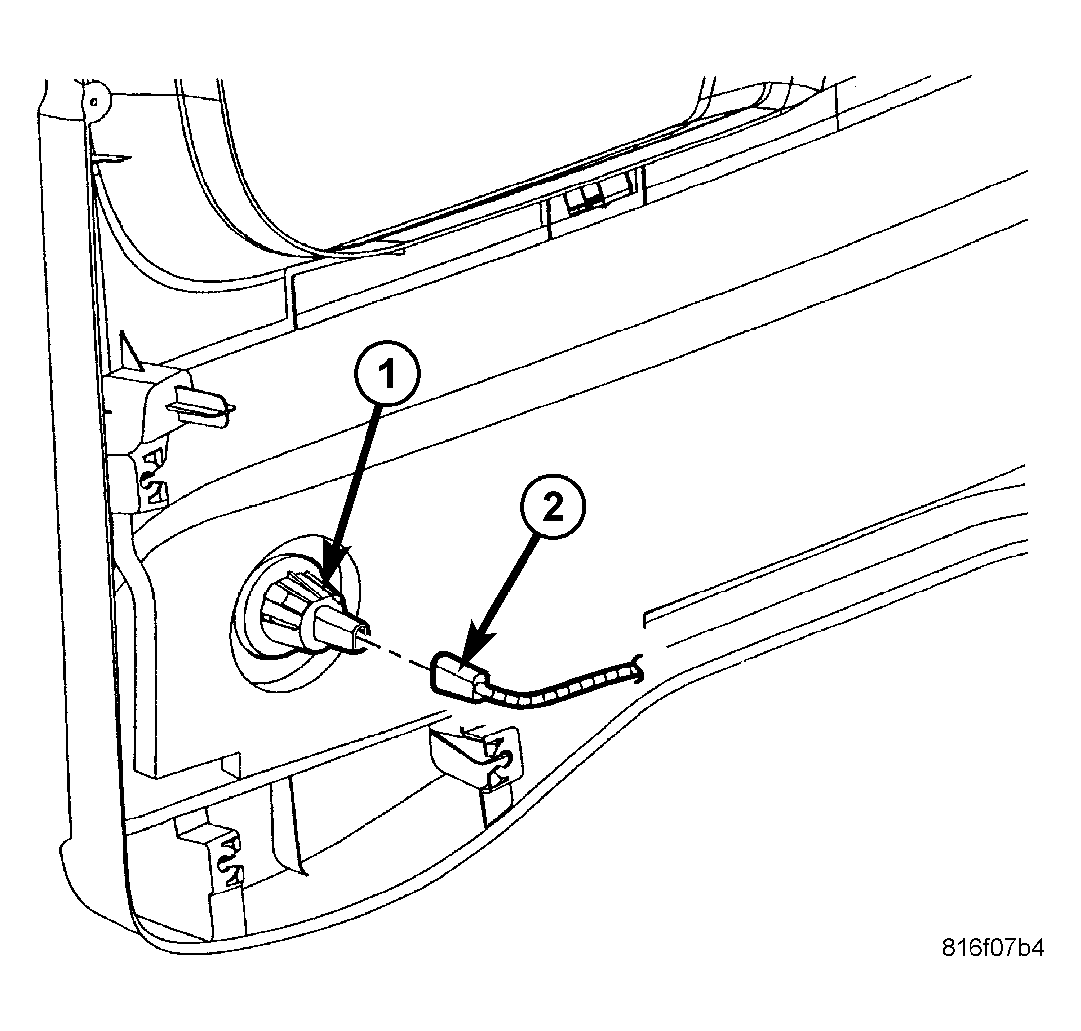

Fig 1: Disconnect/Connect Electrical Connection

Courtesy of DAIMLERCHRYSLER CORP.

Check to be certain that the push-in plastic fasteners are properly installed and in good condition on the inside of the trim panel.
Connect the courtesy lamp (1) electrical connector (2)

Fig 2: Remove/Install Liftgate Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.
Using hand pressure, press firmly and evenly on the trim panel (1) over each of the push-in plastic fastener locations until the fasteners are fully engaged in the holes on the inside of the liftgate.
Install and tighten the five screws (3) that secure the trim panel to the inside of the liftgate.
Connect the battery negative cable.
