Body - Interior & Exterior: Liftgate: Handle: Installation

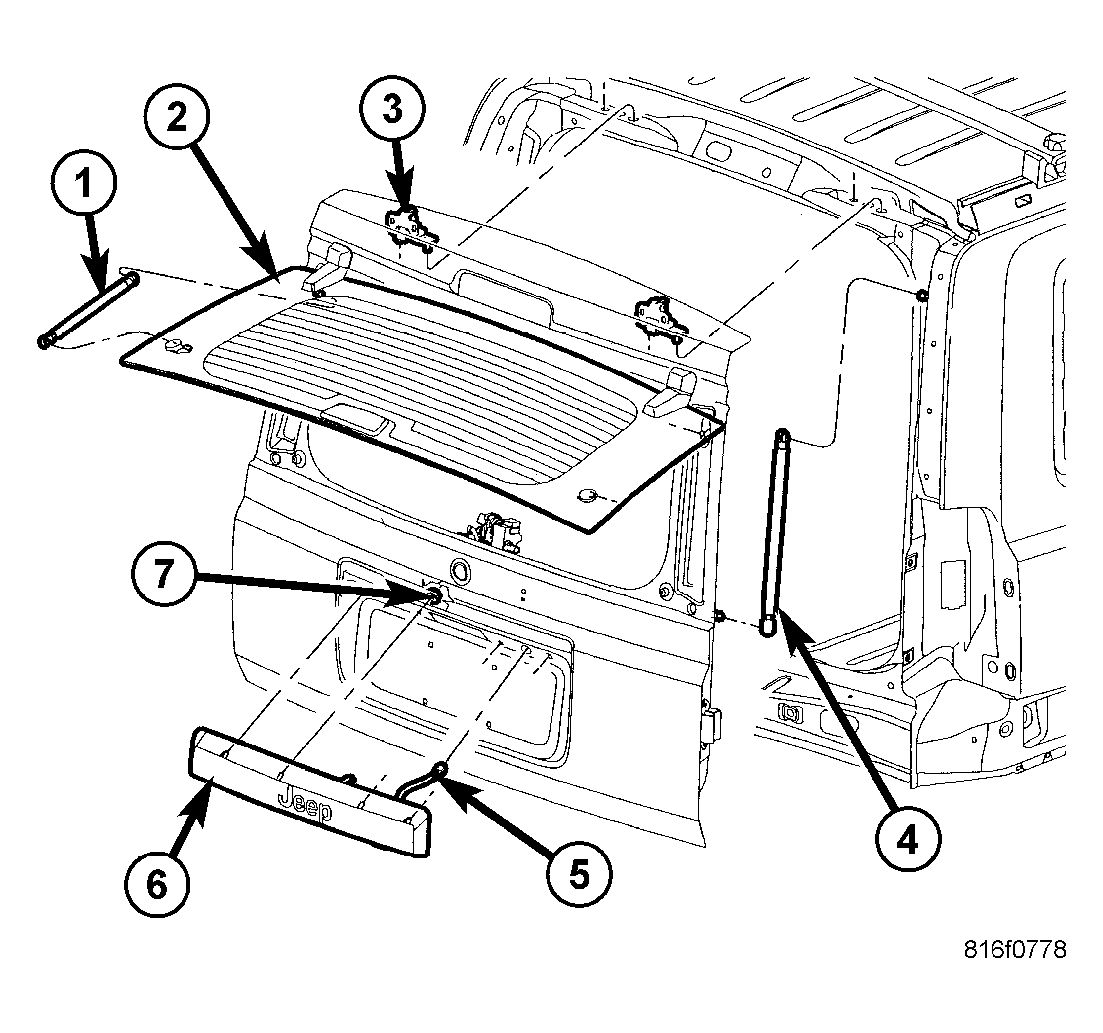

Fig 1: Identifying Liftgate Components
GC0044988Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the latch handle (6) onto the outside of the liftgate and seat the wiring grommet.
  2. Seat the latch cable clips.
  3. Working through the clearance hole in the inside of the liftgate panel, install the liftgate release cable bracket and install the nuts (7).
  4. Tighten the nuts to 6 N.m (55 in. lbs.).
  5. Connect the latch cable to the handle.
  6. Connect the electrical connector of the latch handle on the inside of the liftgate.
    Fig 2: Remove/Install Liftgate Trim Panel
    GC0044989Courtesy of DAIMLERCHRYSLER CORP.
  7. Install the watershield.
  8. Install the lower trim panel onto the inside of the liftgate. (Refer to BODY/LIFTGATE/PANEL-TRIM - INSTALLATION) .
  9. Connect the battery negative cable.
