Body - Interior & Exterior: Exterior: CROSSMEMBER-Radiator: Removal

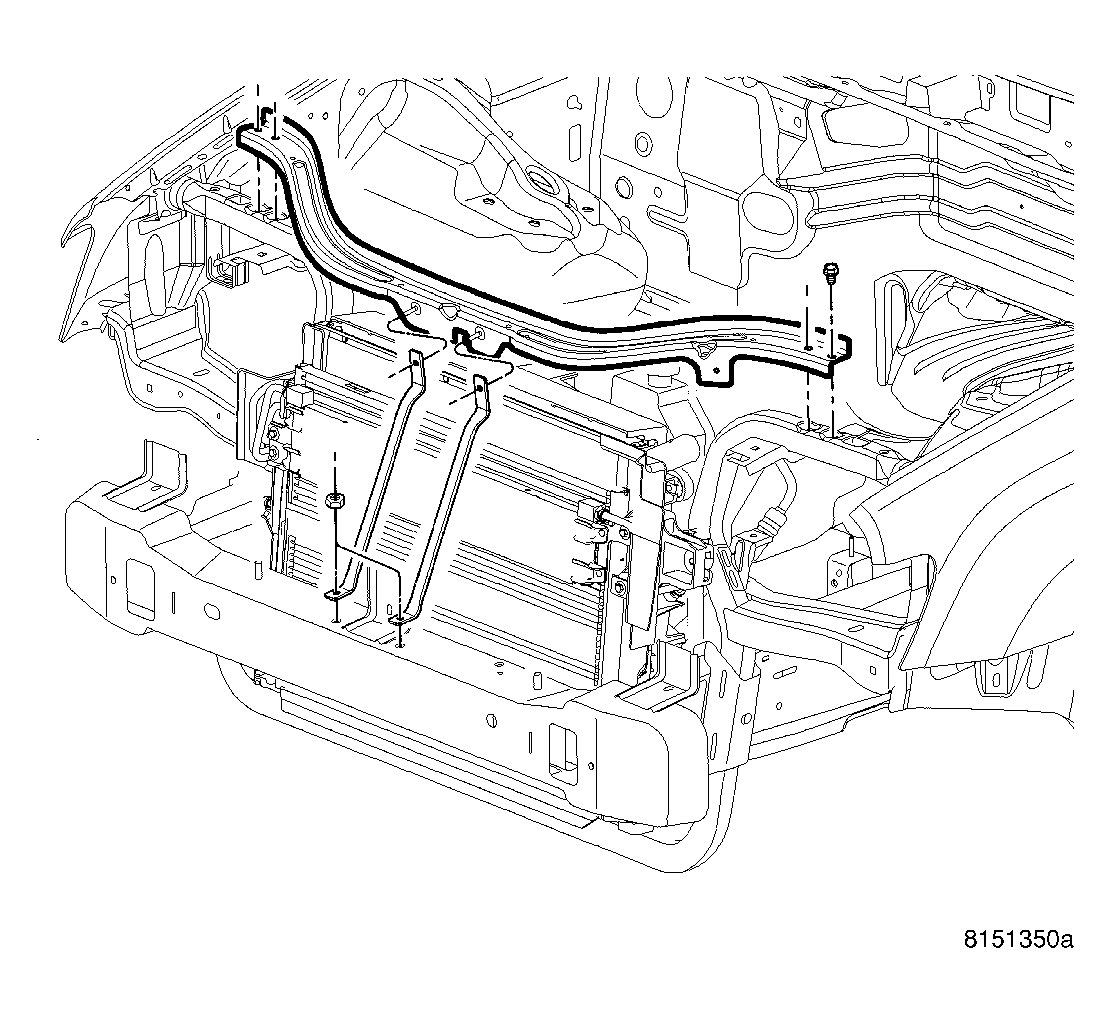

Fig 1: Upper Crossmember
GC0027883Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the grille assembly, (Refer to BODY/EXTERIOR/GRILLE - REMOVAL) .
  2. Remove the front hood seal.
  3. Remove the center brace mounting nuts and remove hood latch.
  4. Remove the outer crossmember mounting bolts.
  5. Remove crossmember.
