Control Module, Transfer Case

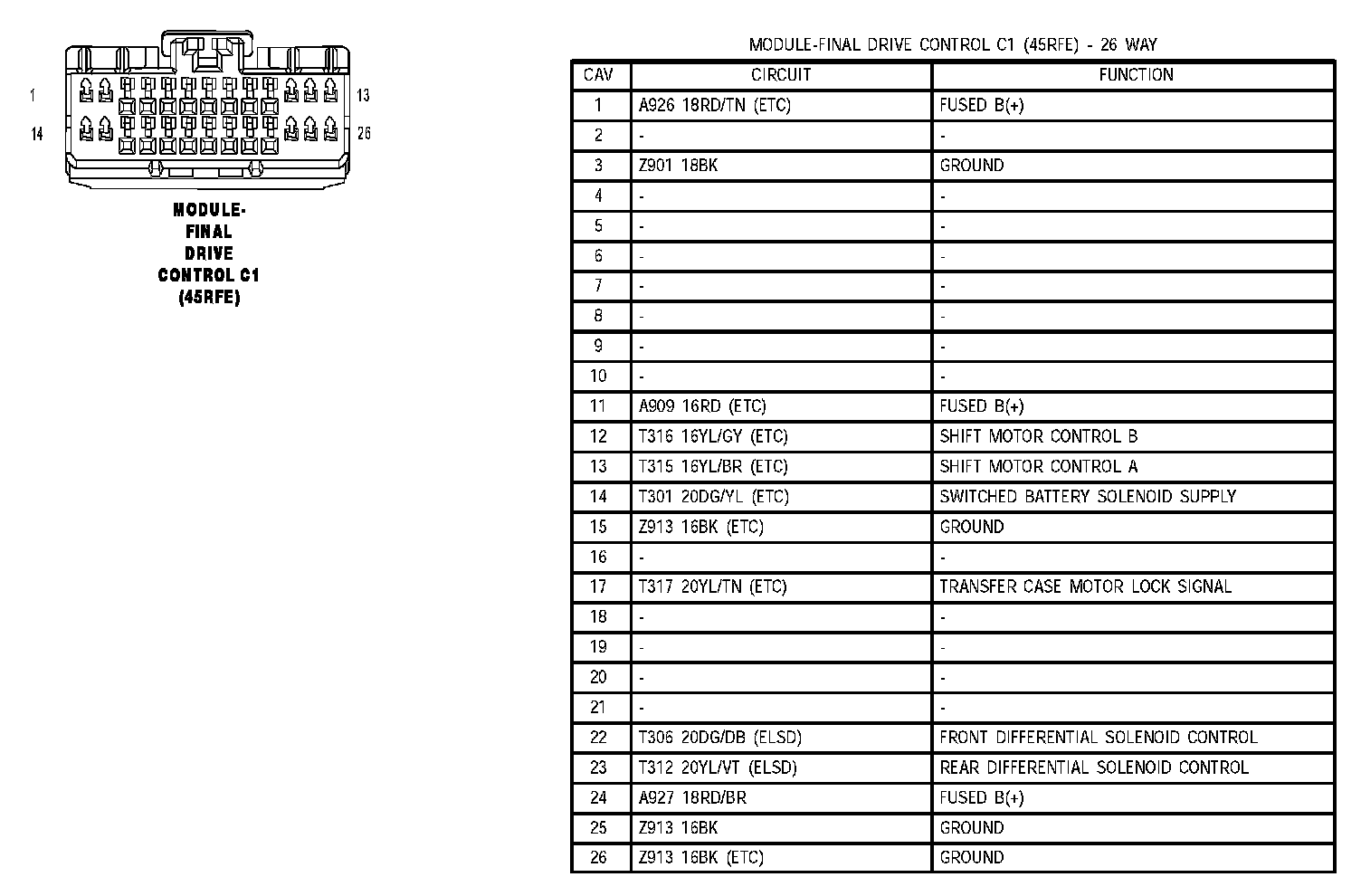

Module Final Drive Control C1 (45RFE):
Module Final Drive Control C2 (45RFE):
