Speed Sensor-Input

SENSOR-INPUT SPEED

REMOVAL
1. Raise vehicle.





2. Place a suitable fluid catch pan under the transmission.

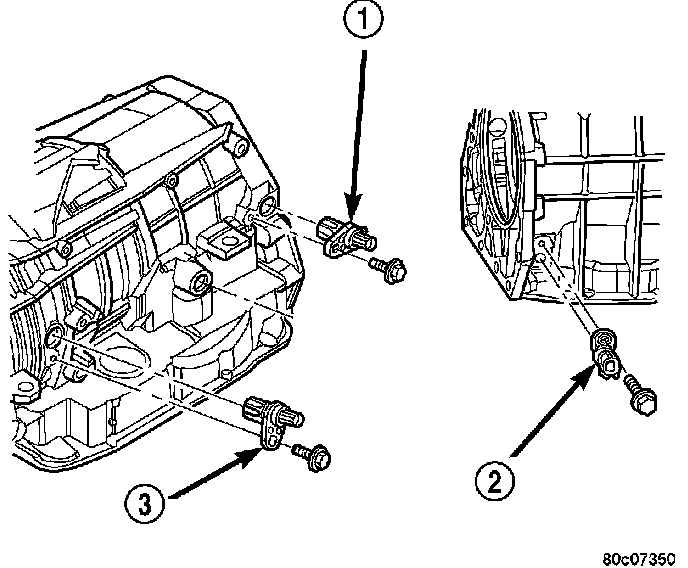

3. Remove the wiring connector from the input speed sensor (3).
4. Remove the bolt holding the input speed sensor to the transmission case.
5. Remove the input speed sensor (3) from the transmission case.

INSTALLATION

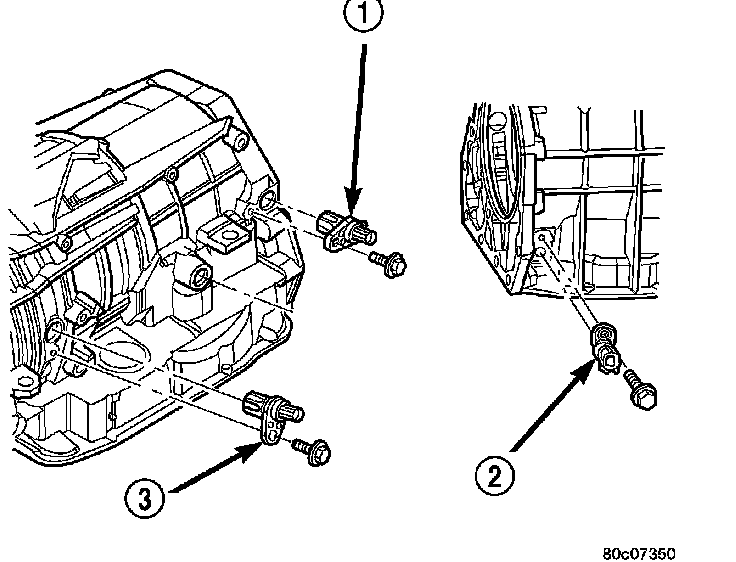

1. Install the input speed sensor (3) into the transmission case.
2. Install the bolt to hold the input speed sensor (3) into the transmission case. Tighten the bolt to 12 Nm (105 inch lbs.).
3. Install the wiring connector onto the input speed sensor.
4. Verify the transmission fluid level. Add fluid as necessary.
5. Lower vehicle.
