Smartbeam

SMARTBEAM

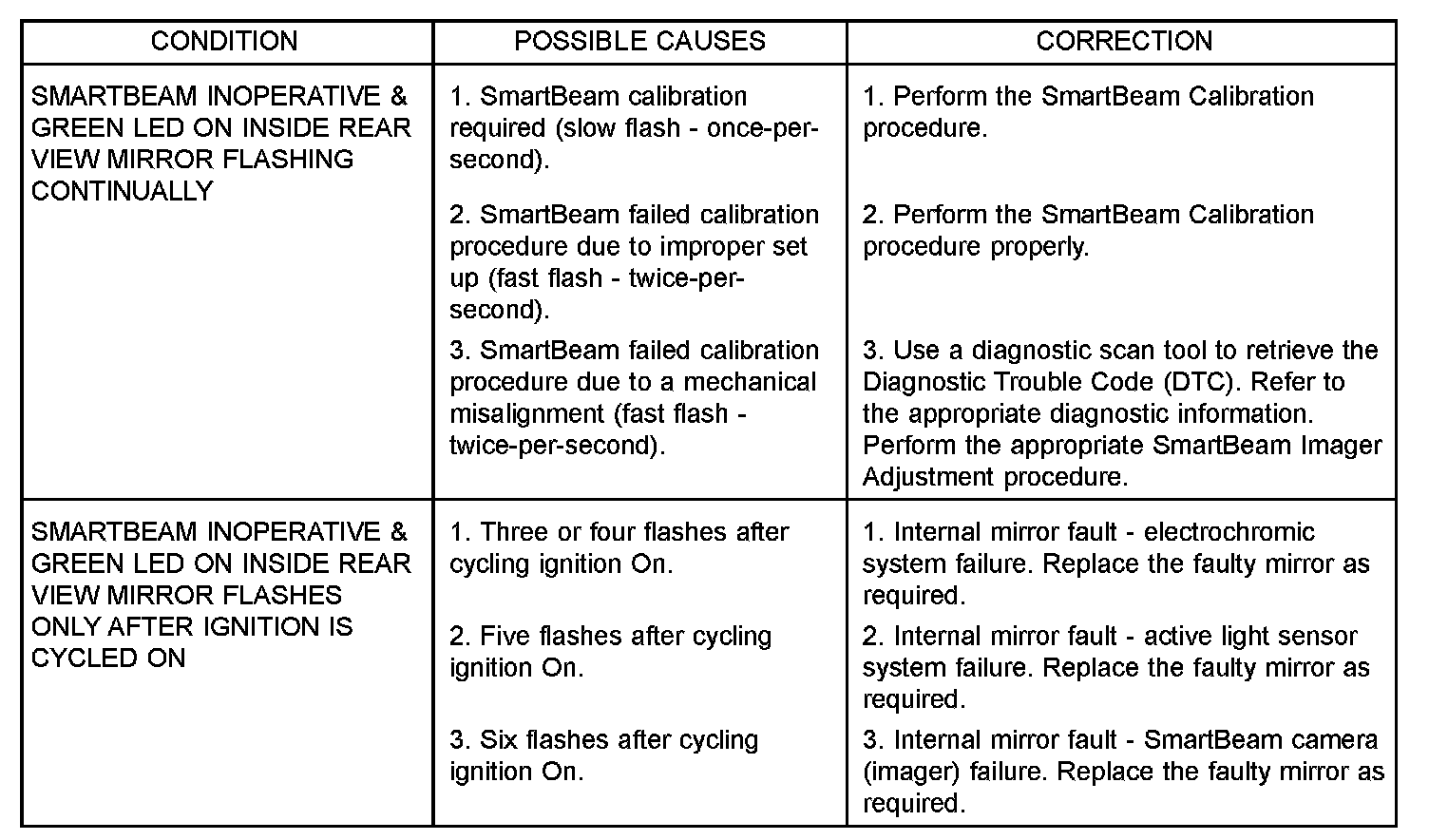

Smartbeam Part 1:

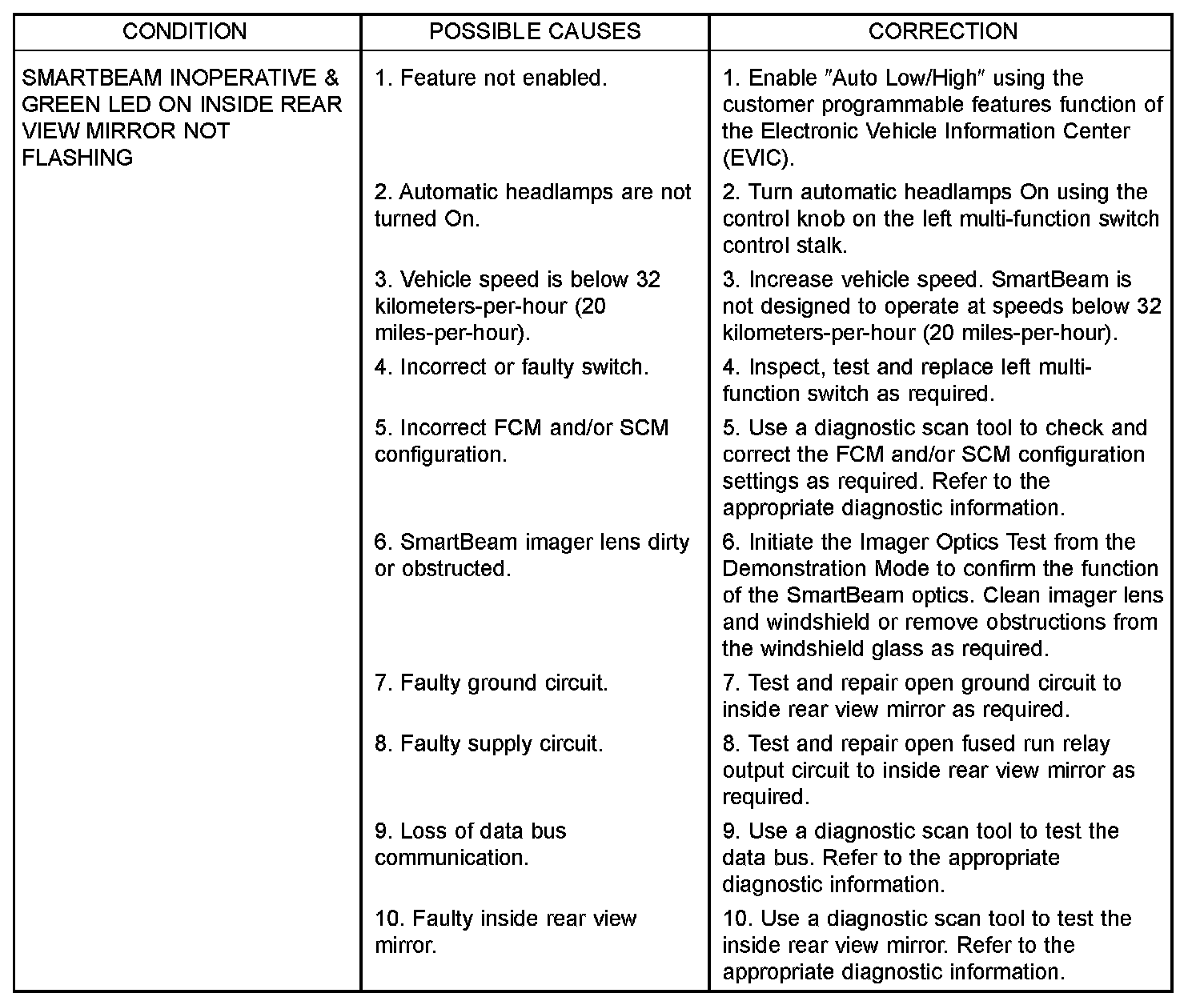

Smartbeam Part 2:

NOTE: For SmartBeam to operate, the vehicle must have the appropriate left multi-function switch installed and the "Auto Low/High" option must be enabled using the customer programmable features function of the Electronic Vehicle Information Center (EVIC). Also, both the Front Control Module (FCM) and the Steering Control Module (SCM) must be properly configured for the automatic headlamps option using a diagnostic scan tool.
