Front Fender Liner: Service and Repair
LINER-FENDER & QUARTER PANELREMOVAL

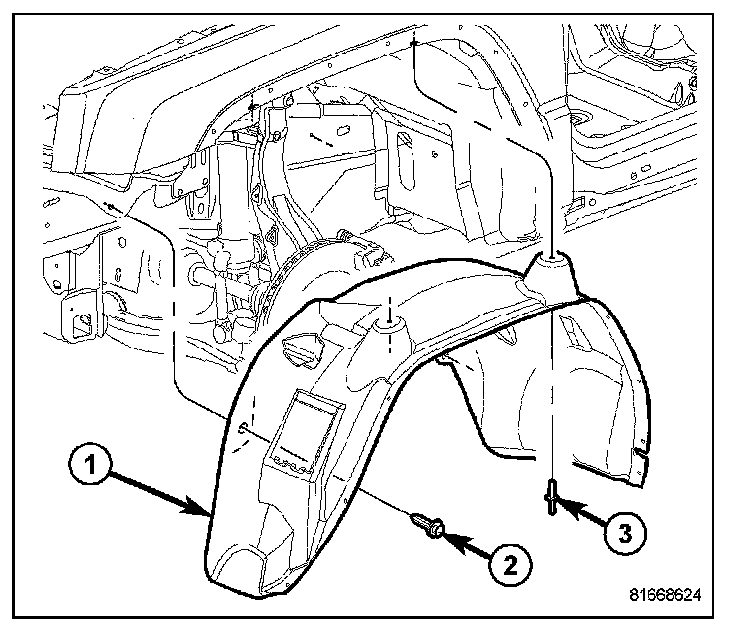

Front
1. If required remove wheel.
2. Remove the pushpins (2).
3. Remove the rivets (3).
4. Remove the eight rivets attaching the liner to the wheel flare molding.
5. Remove liner (1).

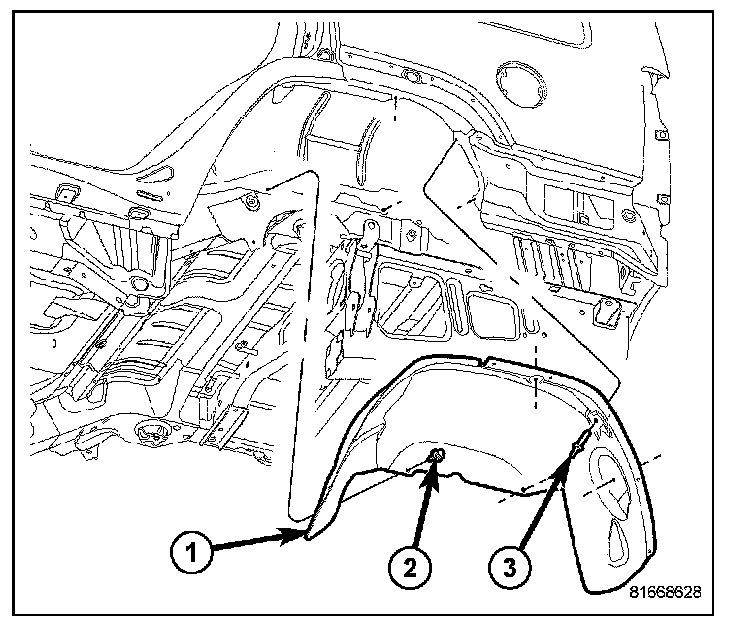

Rear
1. Install the liner (1).
2. Install the rivets attaching the flare molding to the wheel liner.
3. Install the pushpins (2).
4. Install new rivets. rivets (3).
5. If required install the wheel.
INSTALLATION

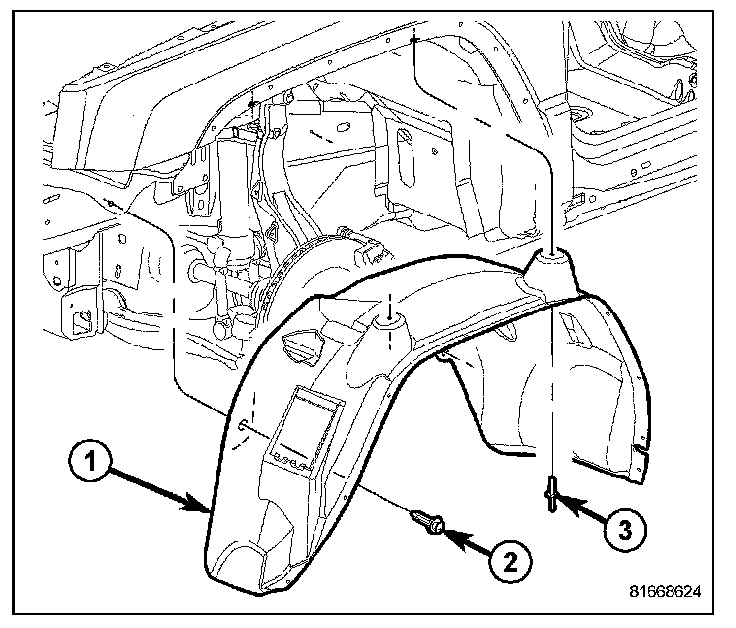

Front
1. Install the liner (1).
2. Install the rivets attaching the flare molding to the wheel liner.
3. Install the pushpins (2).
4. Install new rivets. rivets (3).
5. If required install the wheel.

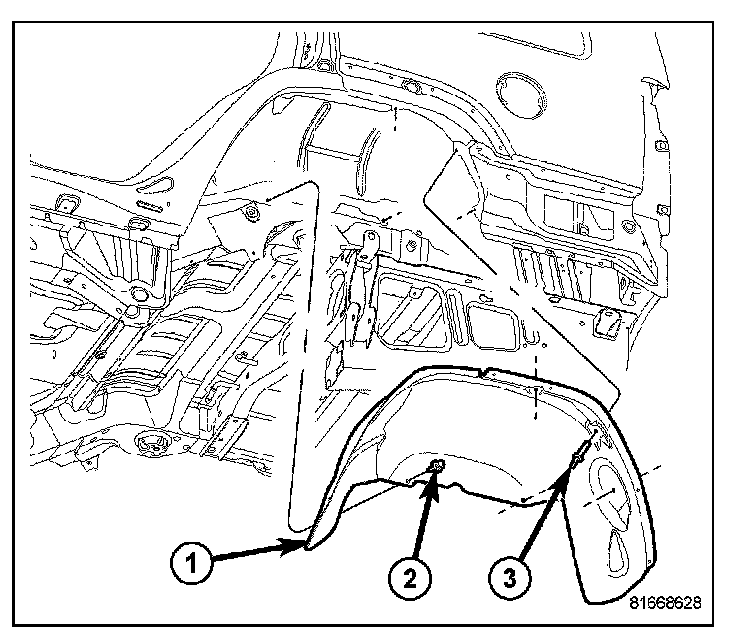

Rear
1. If required remove wheel.
2. Remove the pushpins (2).
3. Remove the rivets (3).
4. Remove the rivets attaching the liner to the wheel flare molding.
5. Remove liner (1).
