Rear Door Channel-Glass

CHANNEL-GLASS

REMOVAL

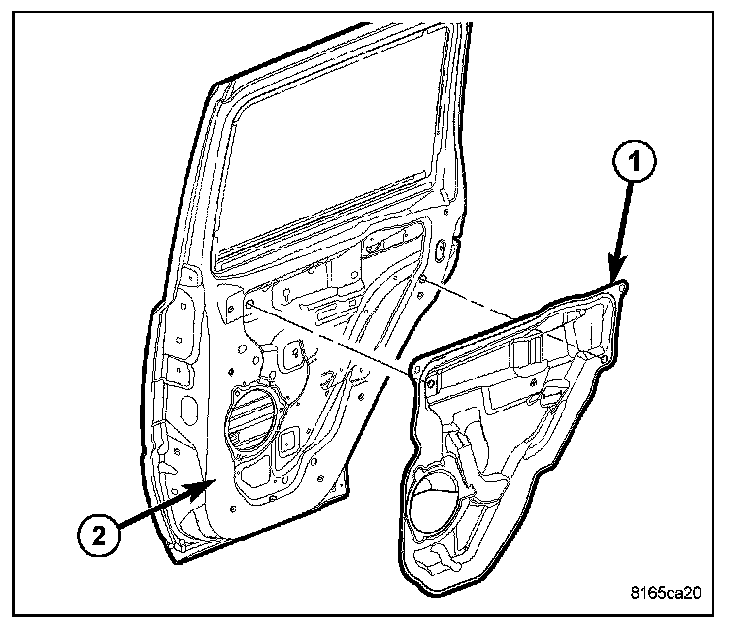

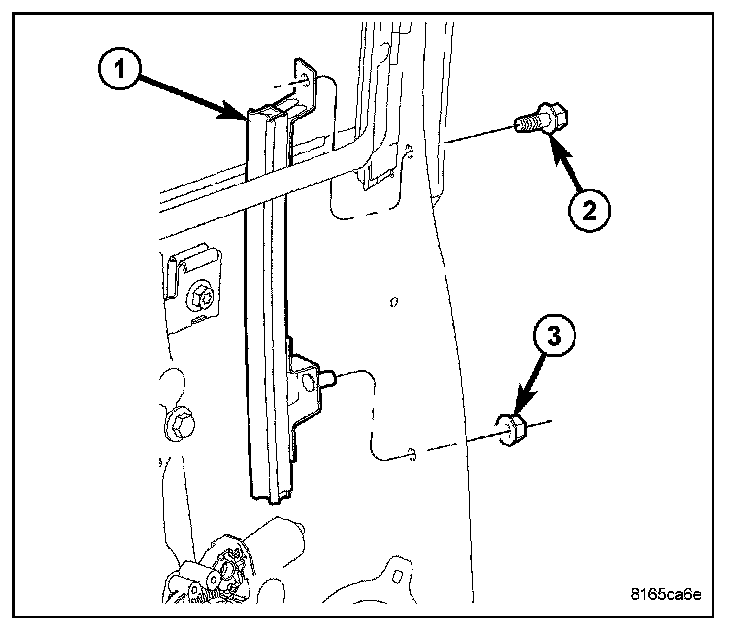

1. Remove the watershield. Refer to Rear Door Panel.




2. Remove the weatherstrip from the rear glass run channel (2).
3. Loosen the bolt (2) that secures the top of the rear glass run channel to the keyed hole on the inside door panel.
4. Remove the nut (4) that secures the bottom of the run channel to the inside door panel.
5. Remove the rear glass run channel from the door.

INSTALLATION

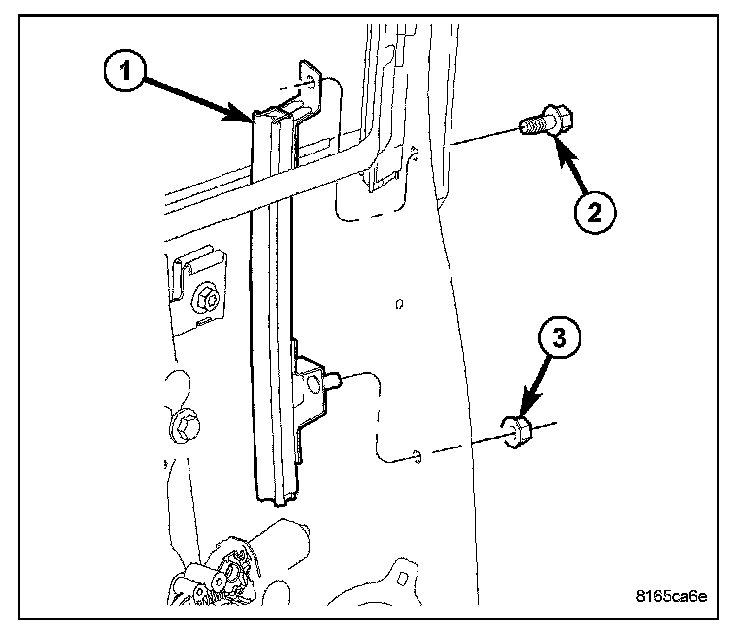

1. Position the front glass run channel (1) onto the rear door.
2. Install the nut (3) that secures the bottom of the rear glass run channel to the inside door panel. Tighten the bolt to 12 N.m (105 in.lbs).
3. Tighten the bolt that secures the top of the rear glass run channel to the inside door panel to 7 N.m (60 in.lbs).
4. Install the weatherstrip into the rear glass run channel.

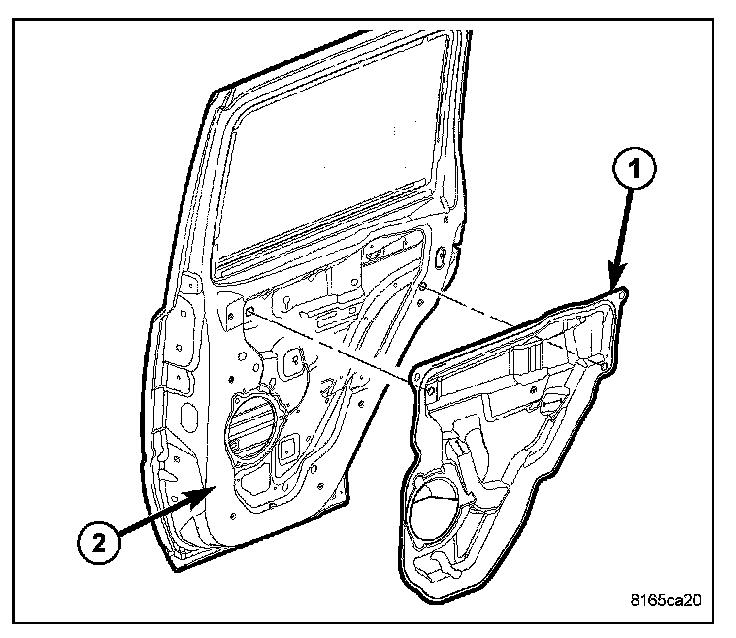

5. Install the watershield.
