Fuse Block

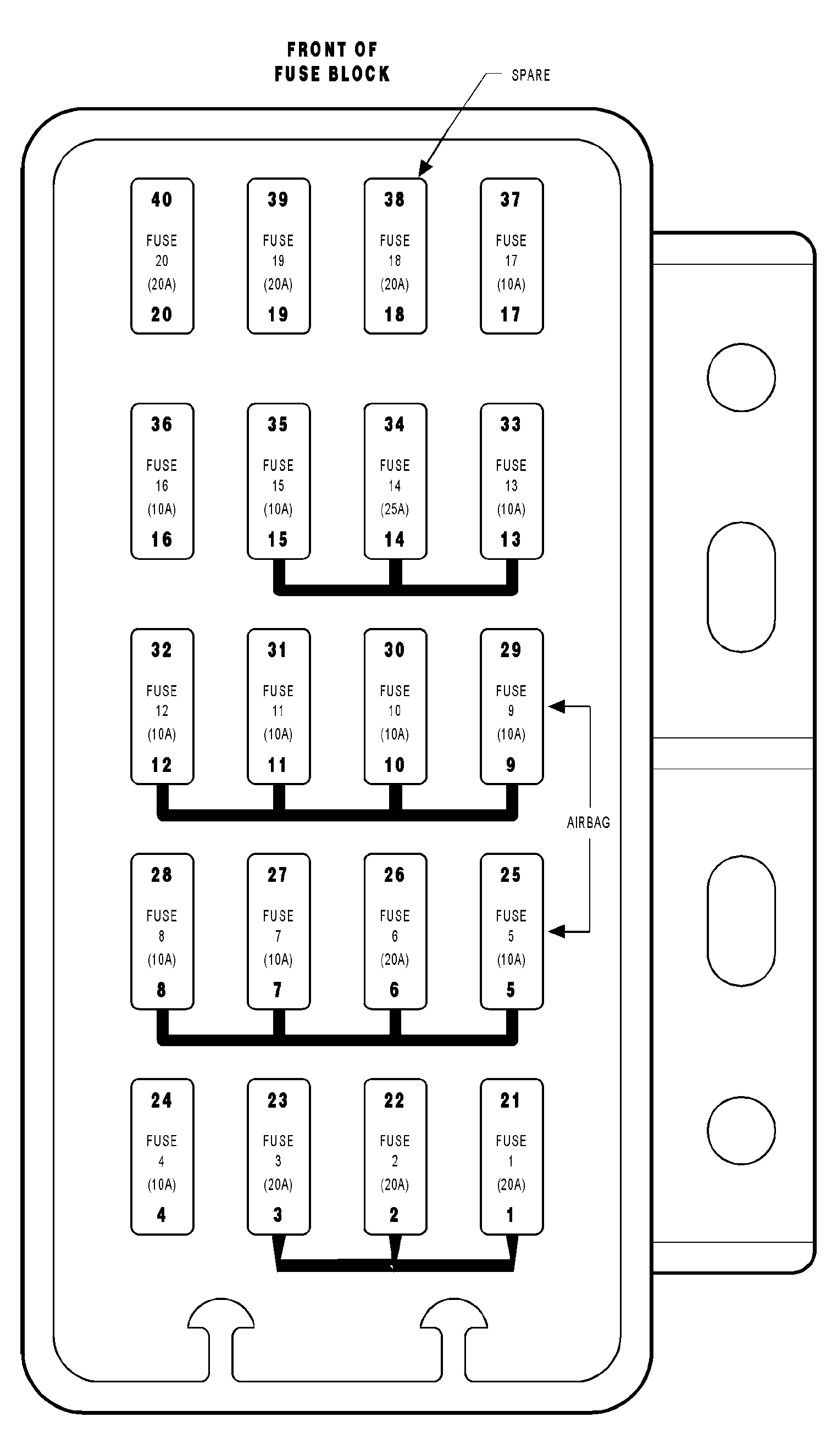

Fig 1: Identifying Fuse Block
G04550680Courtesy of DAIMLERCHRYSLER CORP.

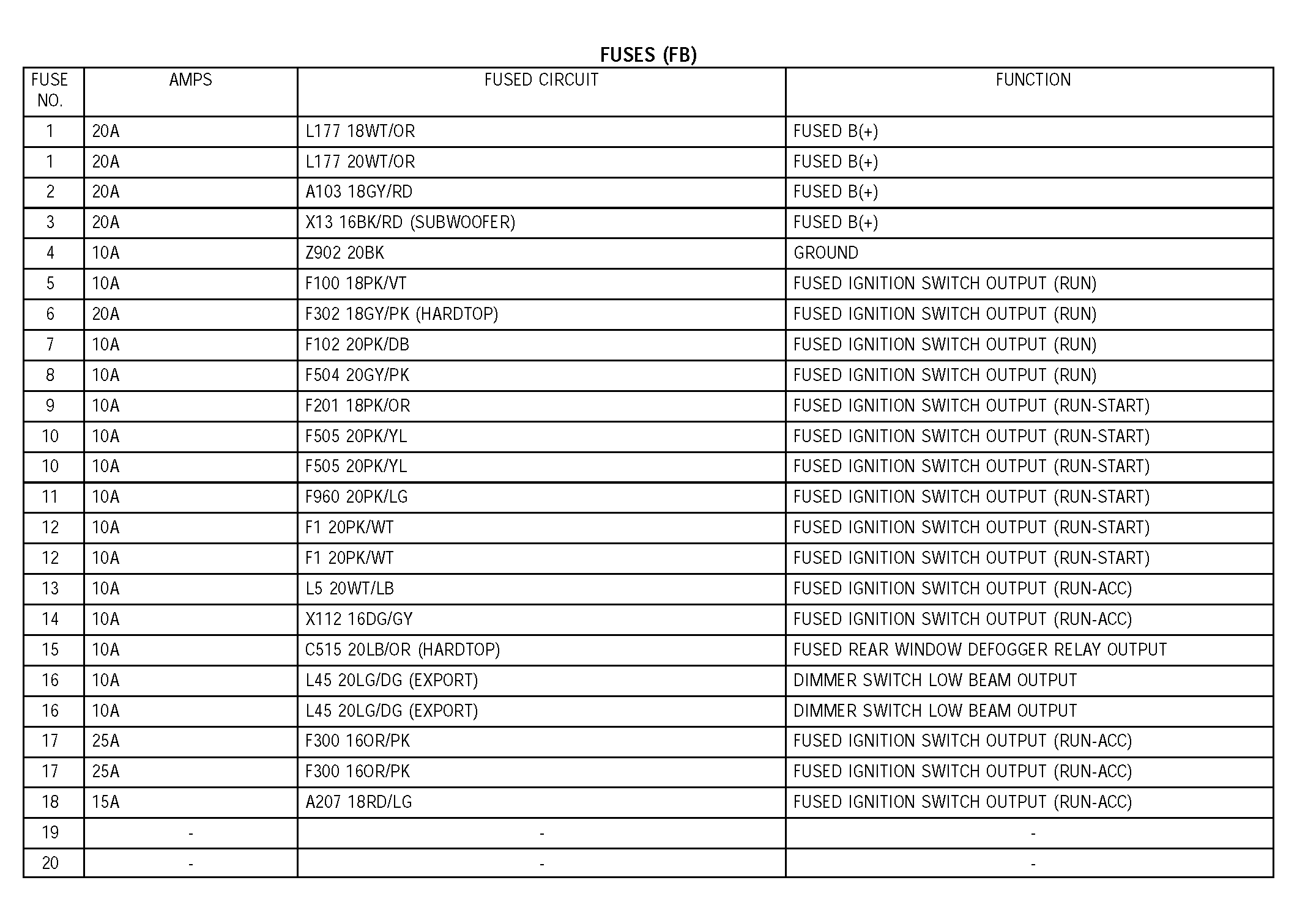

Fig 2: Fuse Block Fuses Chart
G04550681Courtesy of DAIMLERCHRYSLER CORP.
