Transmission Control Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

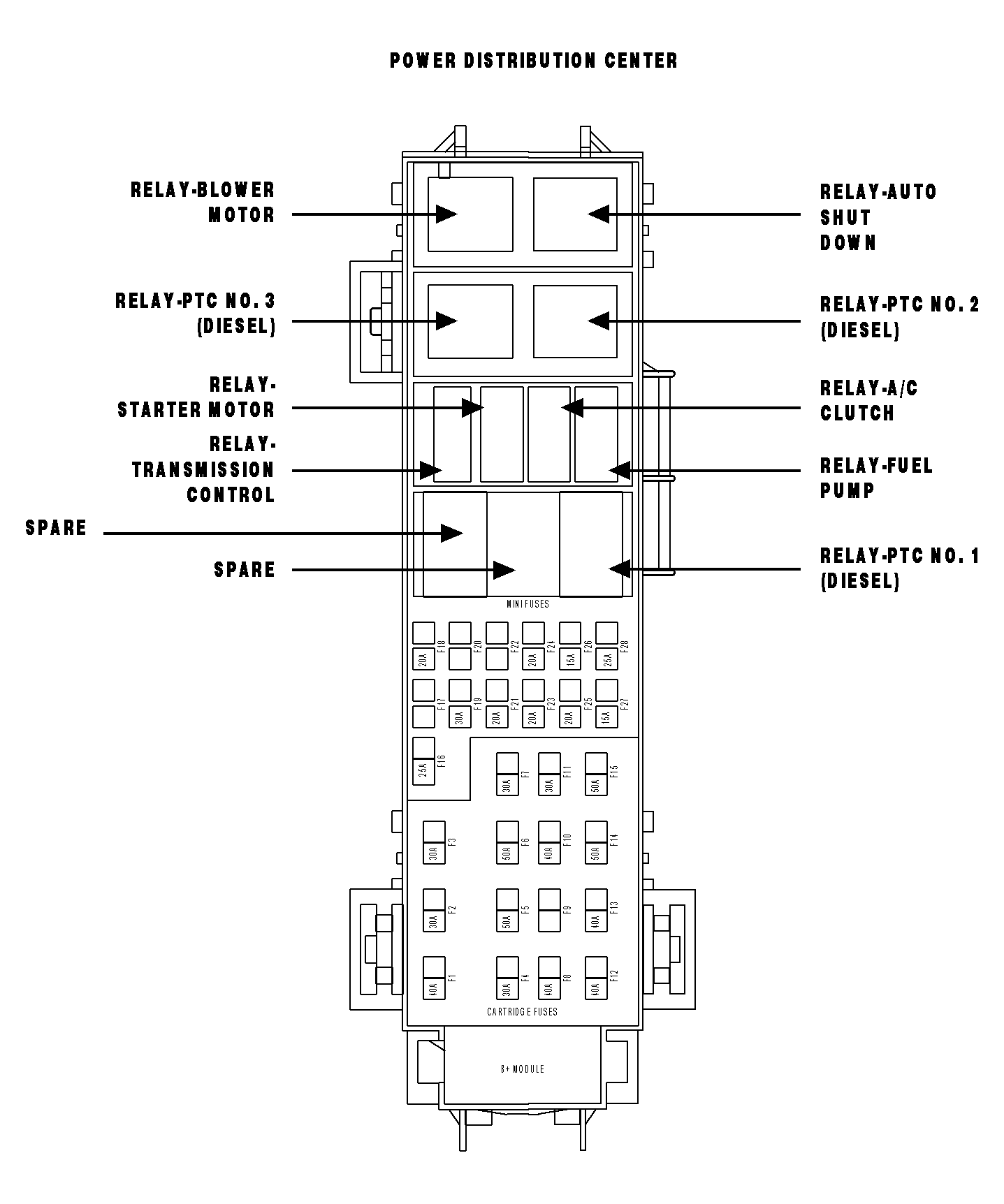

RELAY-TRANSMISSION CONTROL
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A917 18RD |
FUSED B(+) |
| 85 |
Z387 20BK |
GROUND |
| 86 |
T15 20YL/BR |
TRANSMISSION CONTROL RELAY CONTROL |
| 87 |
T16 16YL/OR |
TRANSMISSION CONTROL RELAY OUTPUT |
| 87A |
- |
- |
