Integrated Power Module Connector End View (C1)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

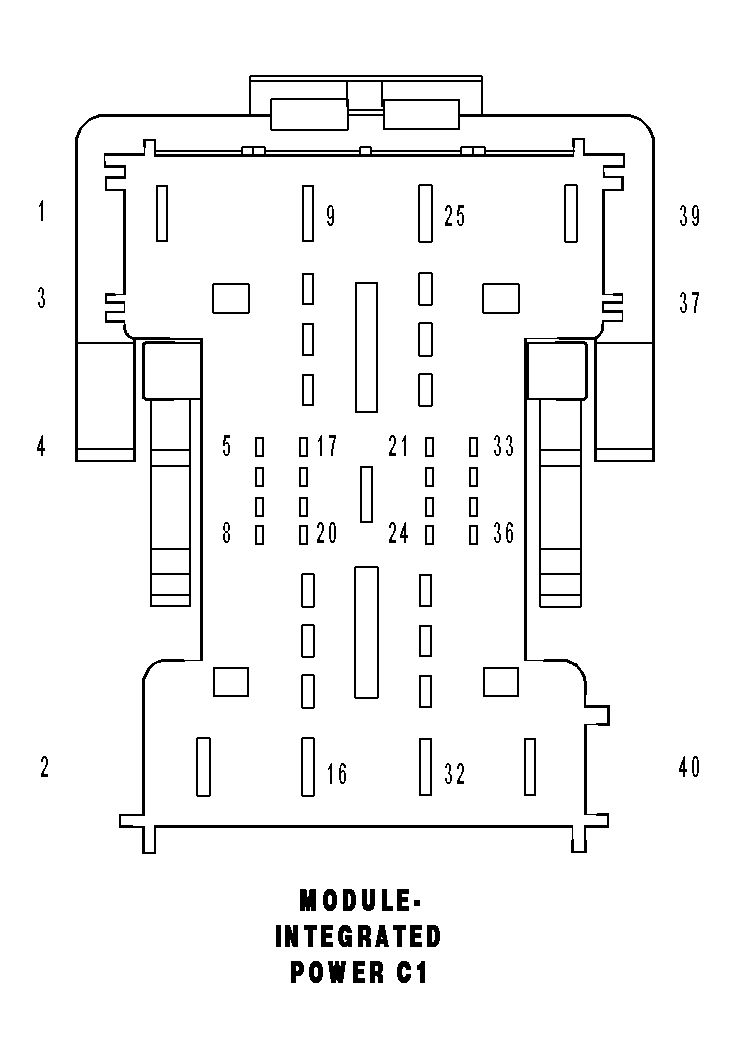

MODULE-INTEGRATED POWER C1 - 40 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A118 16RD/OR	FUSED B(+)
2	A909 14RD	FUSED B(+)
3	-	-
4	-	-
5	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
6	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
7	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
8	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
9	N23 10DB/DG (3.7L/4.7L)	HIGH SPEED RADIATOR FAN RELAY OUTPUT
10	W7 20BR/GY	FRONT WIPER PARK SWITCH SENSE
11	F20 20PK/GY	FUSED IGNITION SWITCH OUTPUT (RUN-START)
12	F944 18PK/TN	IGNITION SWITCH OUTPUT (RUN-START)
13	L76 18WT/BR	FUSED PARK LAMP RELAY OUTPUT
14	A114 18GY/RD (EXPORT)	FUSED B(+)
15	Z387 18BK	GROUND
16	L614 18WT/DB	TRAILER TOW TURN SIGNAL
17	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
18	C918 20BK/LB	FCM SENSOR RETURN
19	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
20	-	-
21	-	-
22	-	-
23	L62 18WT/OR	RIGHT REAR TURN SIGNAL CONTROL
24	K361 20BR/WT (DIESEL)	PTC NO. 2 RELAY CONTROL
25	N24 10DG/DB (3.7L/4.7L)	LOW SPEED RADIATOR FAN RELAY OUTPUT
26	F100 20PK/VT	FUSED RUN RELAY OUTPUT
27	F923 14PK/YL	RUN RELAY OUTPUT
28	Z131 18BK/DG	GROUND
29	W10 18BR	FRONT WASHER PUMP MOTOR CONTROL
30	K360 20GY/BR (DIESEL)	PTC NO. 1 RELAY CONTROL
31	W20 18BR/YL	REAR WASHER PUMP MOTOR CONTROL
32	A15 16RD/TN	FUSED ASD RELAY OUTPUT
33	A109 16TN/RD	FUEL PUMP RELAY OUTPUT
34	A109 16TN/RD	FUEL PUMP RELAY OUTPUT
35	-	-
36	F1 18PK/WT	FUSED IGNITION SWITCH OUTPUT (RUN-START)
37	-	-
38	-	-
39	Z387 18BK	GROUND
40	A114 18GY/RD	FUSED B(+)
