Checking A/C System Operation With No DTCs

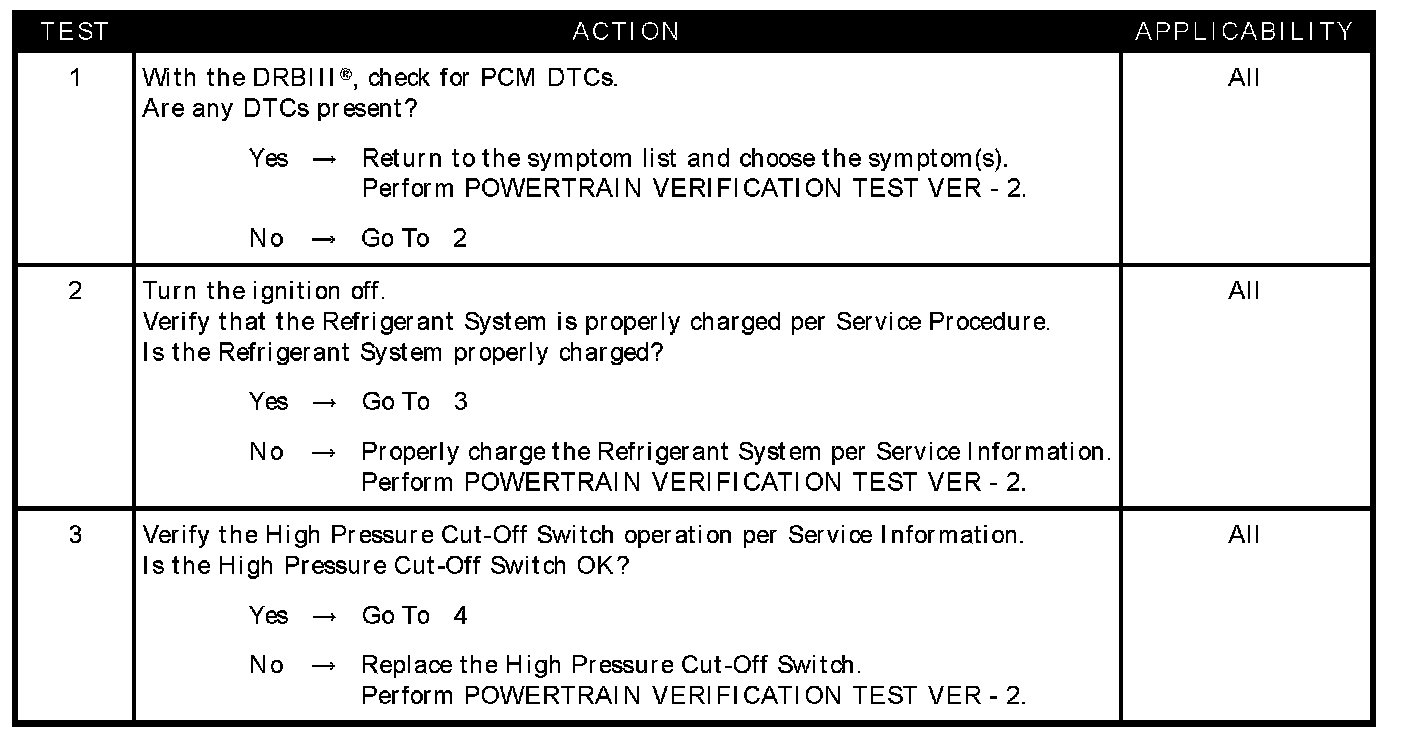

Test 1 - 3:

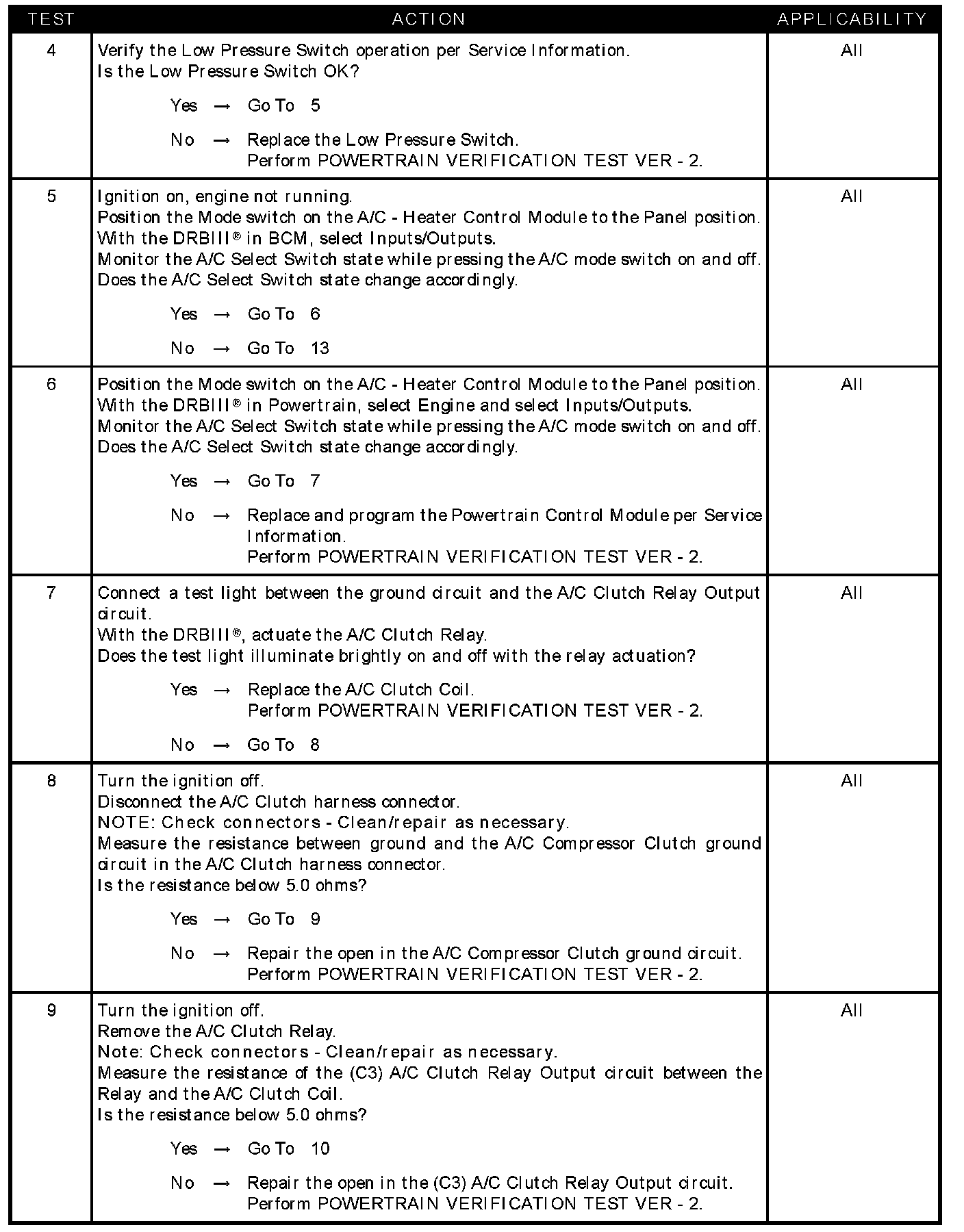

Test 4 - 9:

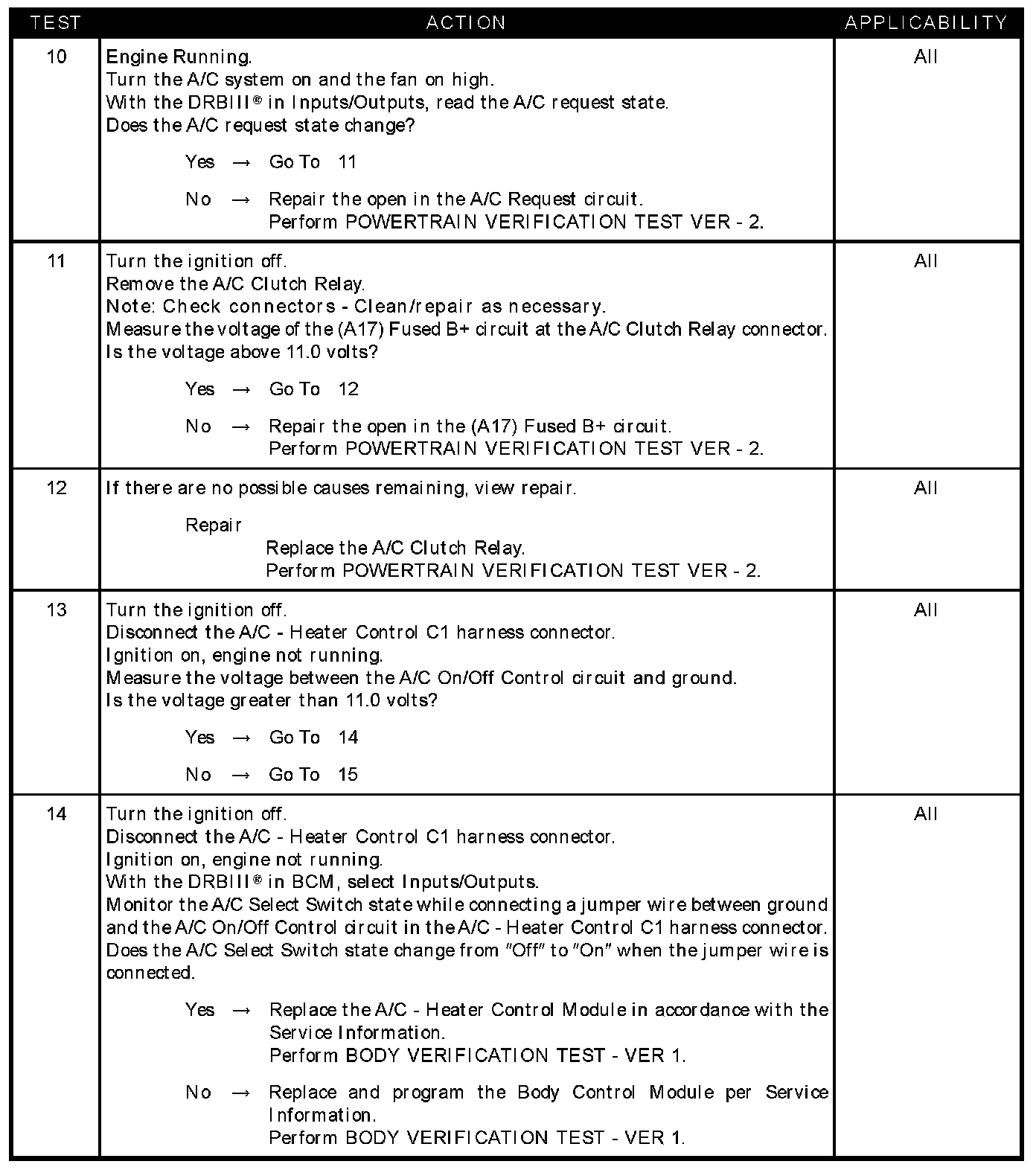

Test 10 - 14:

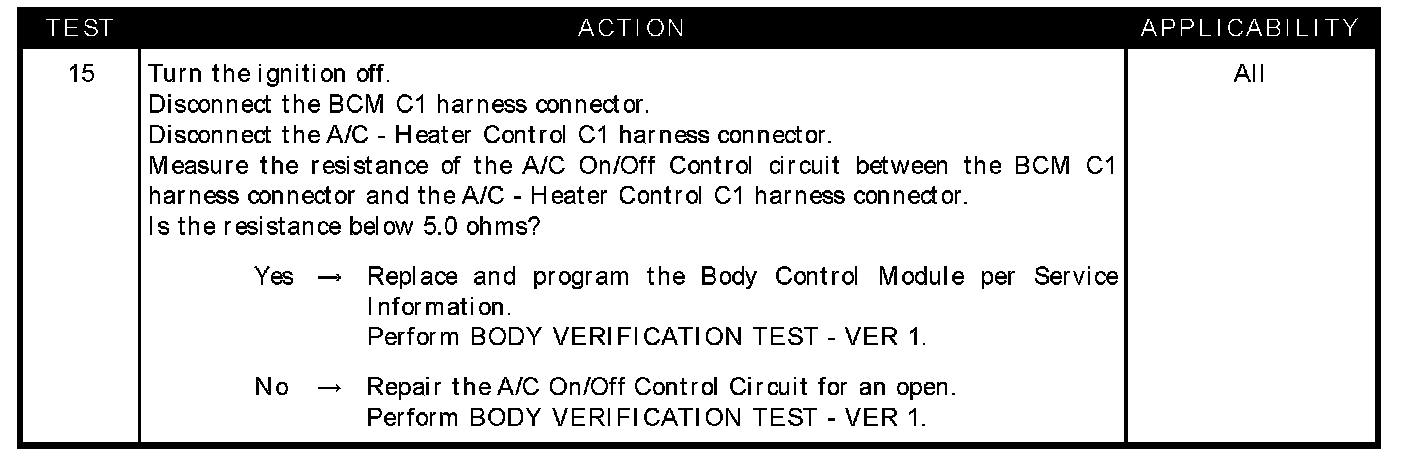

Test 15:

SYMPTOM
CHECKING A/C SYSTEM OPERATION WITH NO DTCs

POSSIBLE CAUSES
- Check for PCM DTC's
- Refrigeration system not properly charged
- High press cut-off switch
- Low pressure switch
- Powertrain control module
- A/C clutch coil
- A/C compressor clutch ground circuit open
- (C3) A/C clutch relay output circuit open
- A/C request circuit open
- (A17) fused B++ circuit open
- A/C clutch relay
- A/C - heater control module
- Body control module
- A/C on/off control circuit open
- A/C on/off control circuit open
