Connector Locations

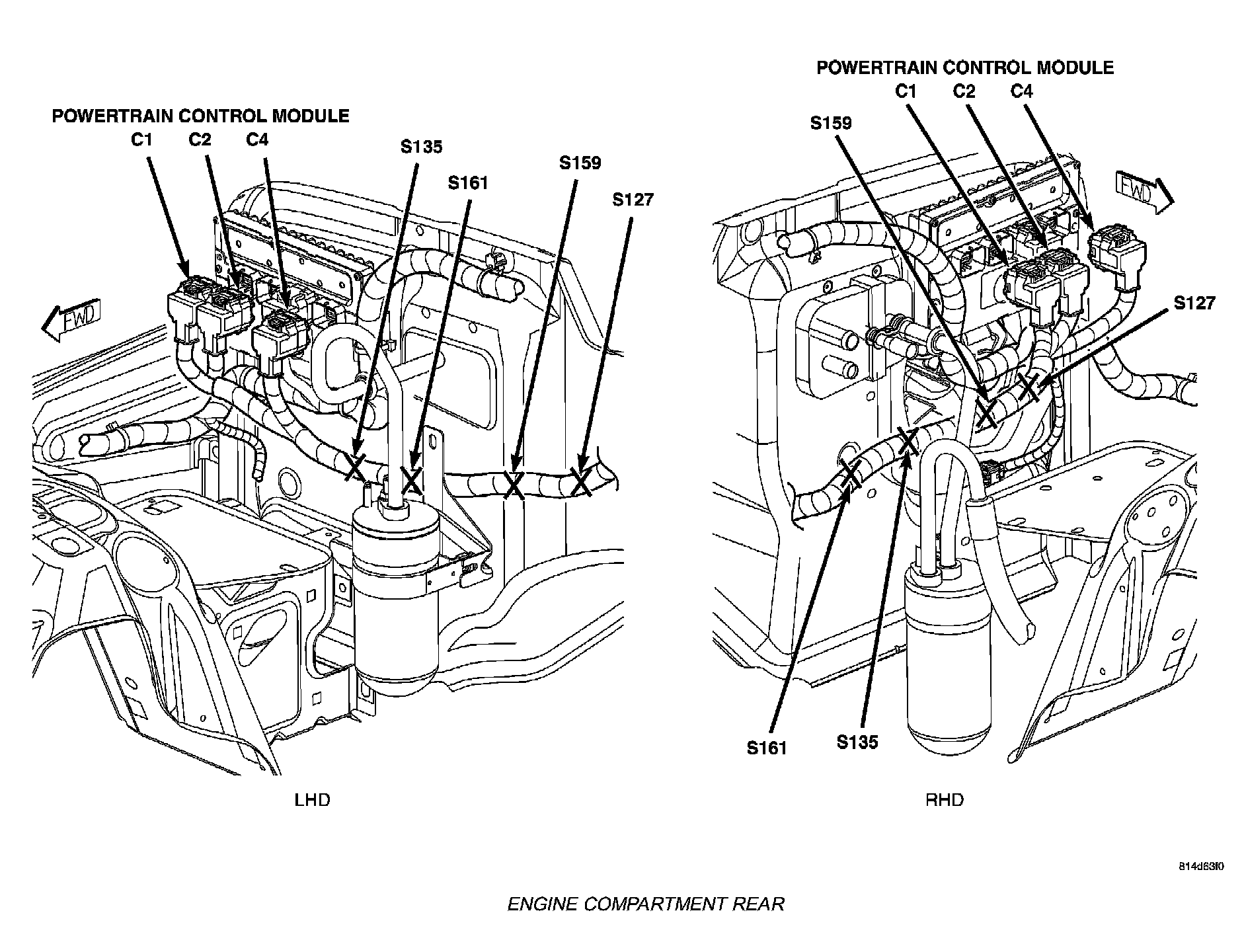

Engine Compartment Rear:

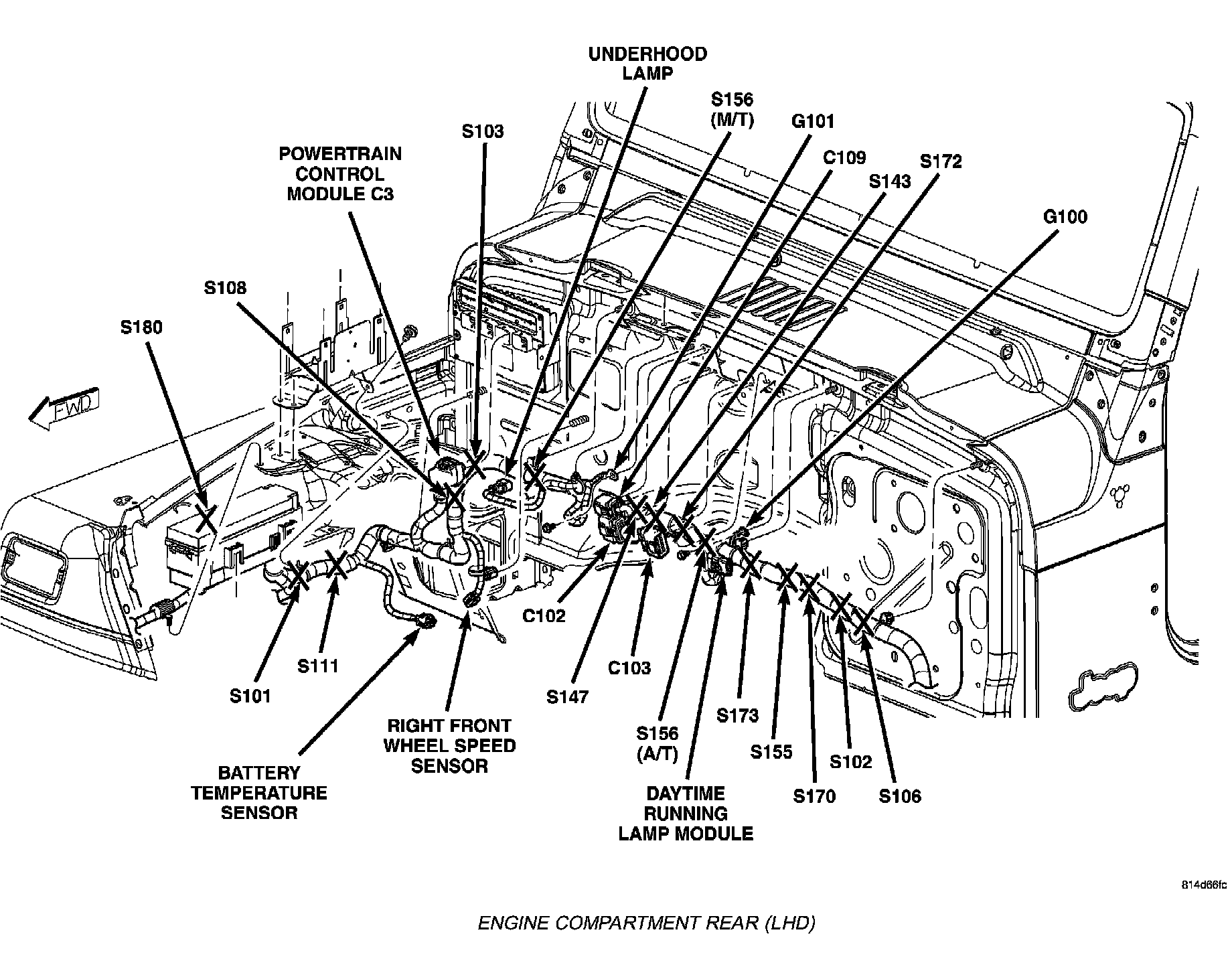

Engine Compartment Rear (LHD):

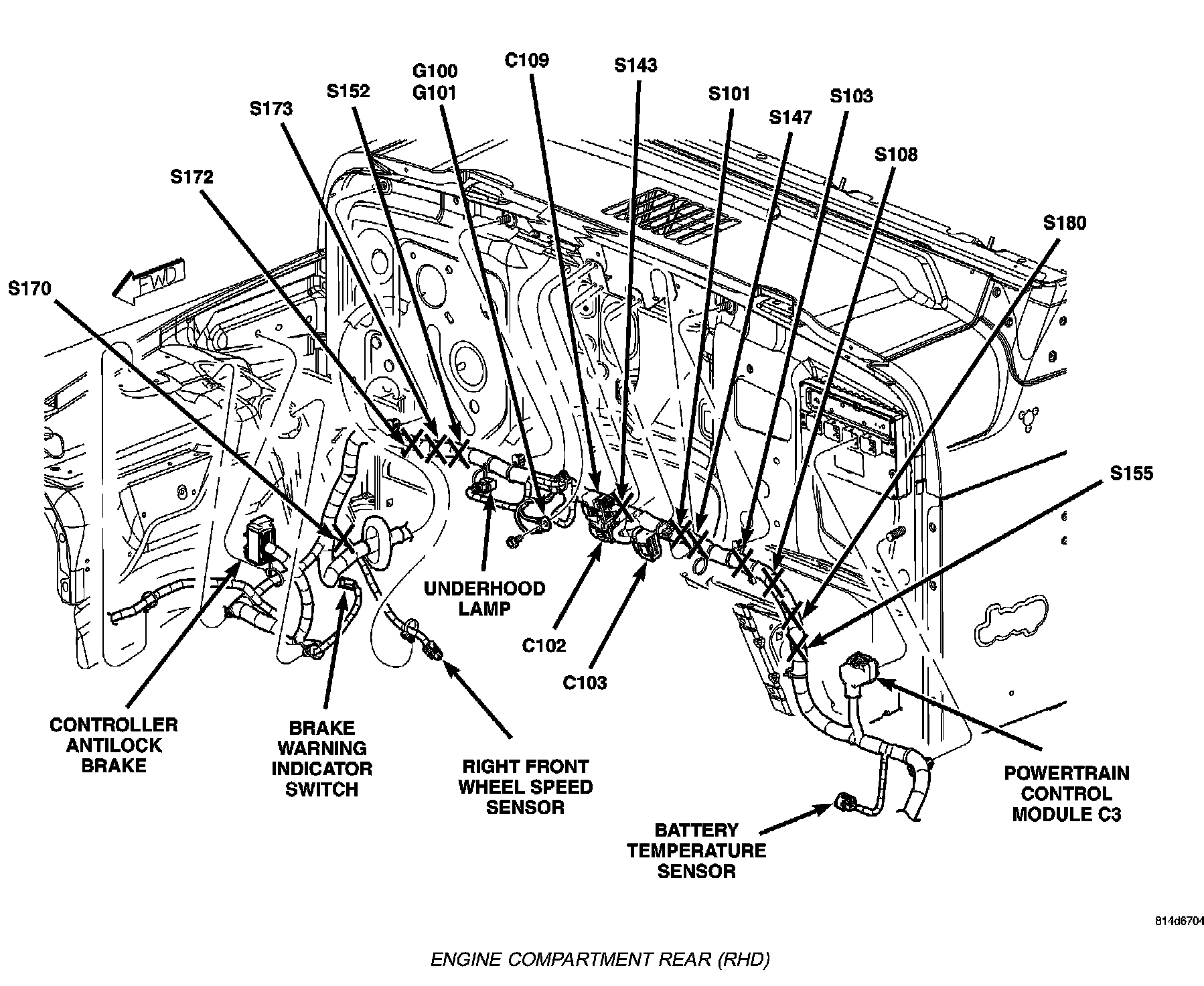

Engine Compartment Rear (RHD):

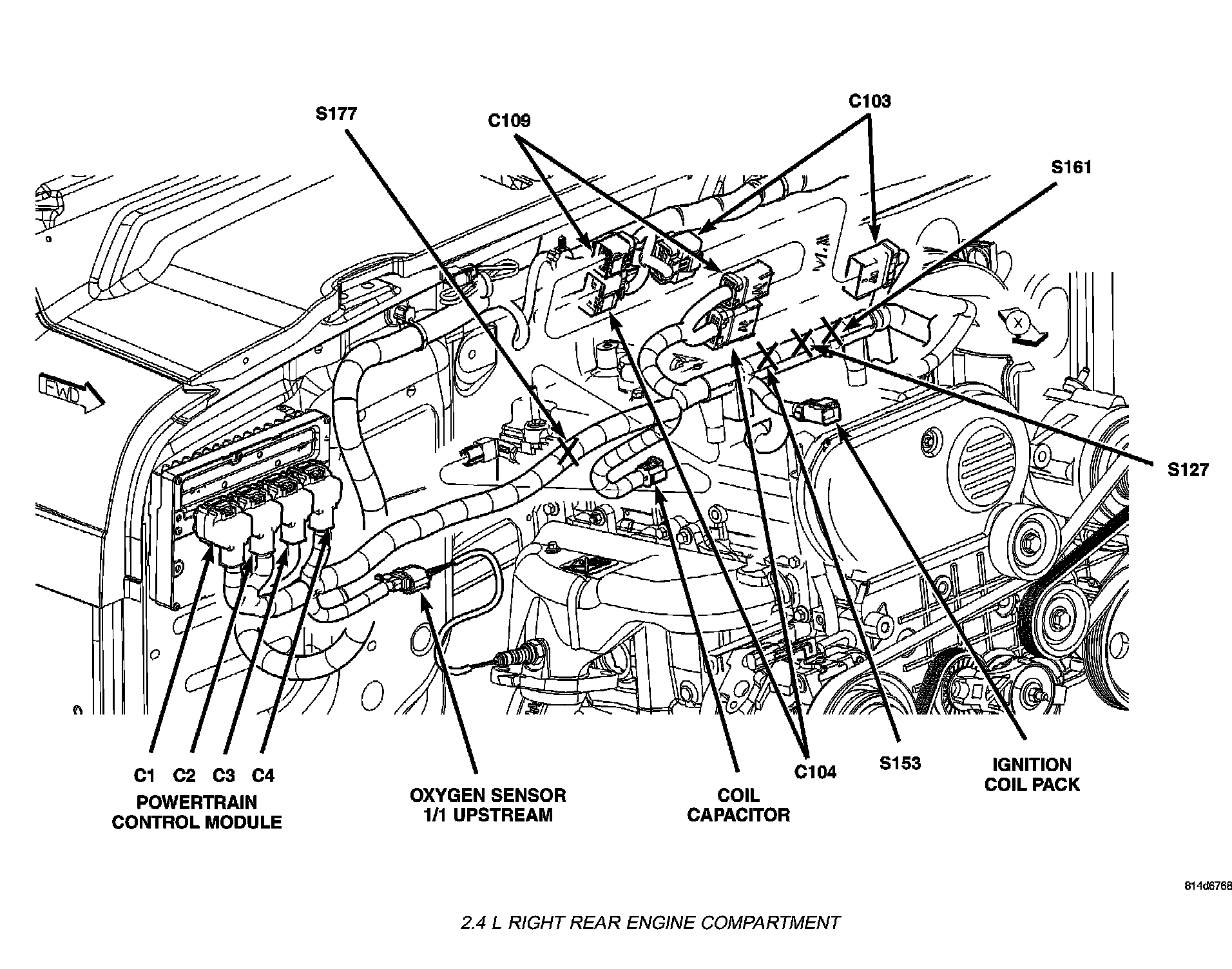

2.4L Right Rear Engine Compartment:
