PCV Valve: Removal: 2.4L

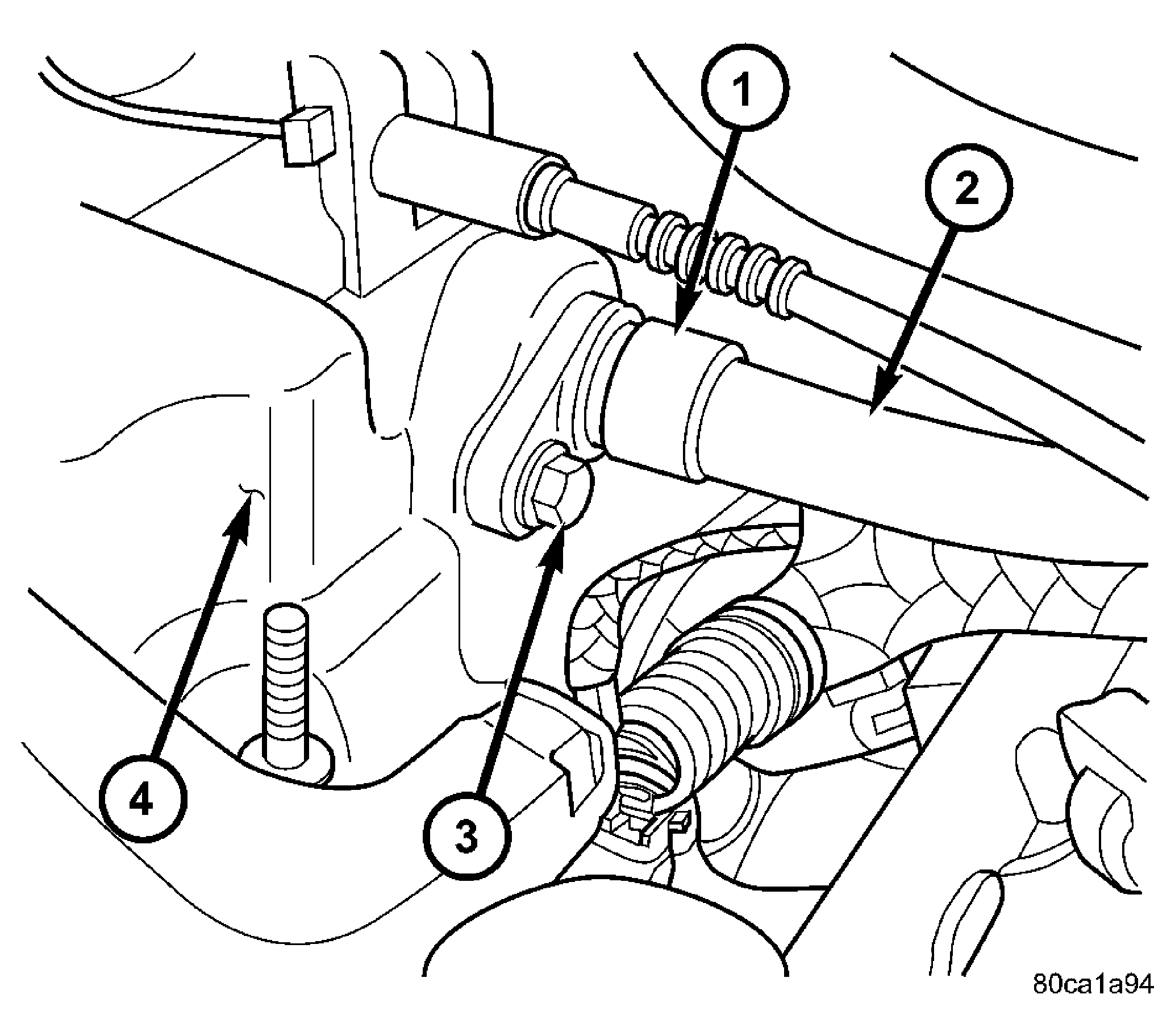

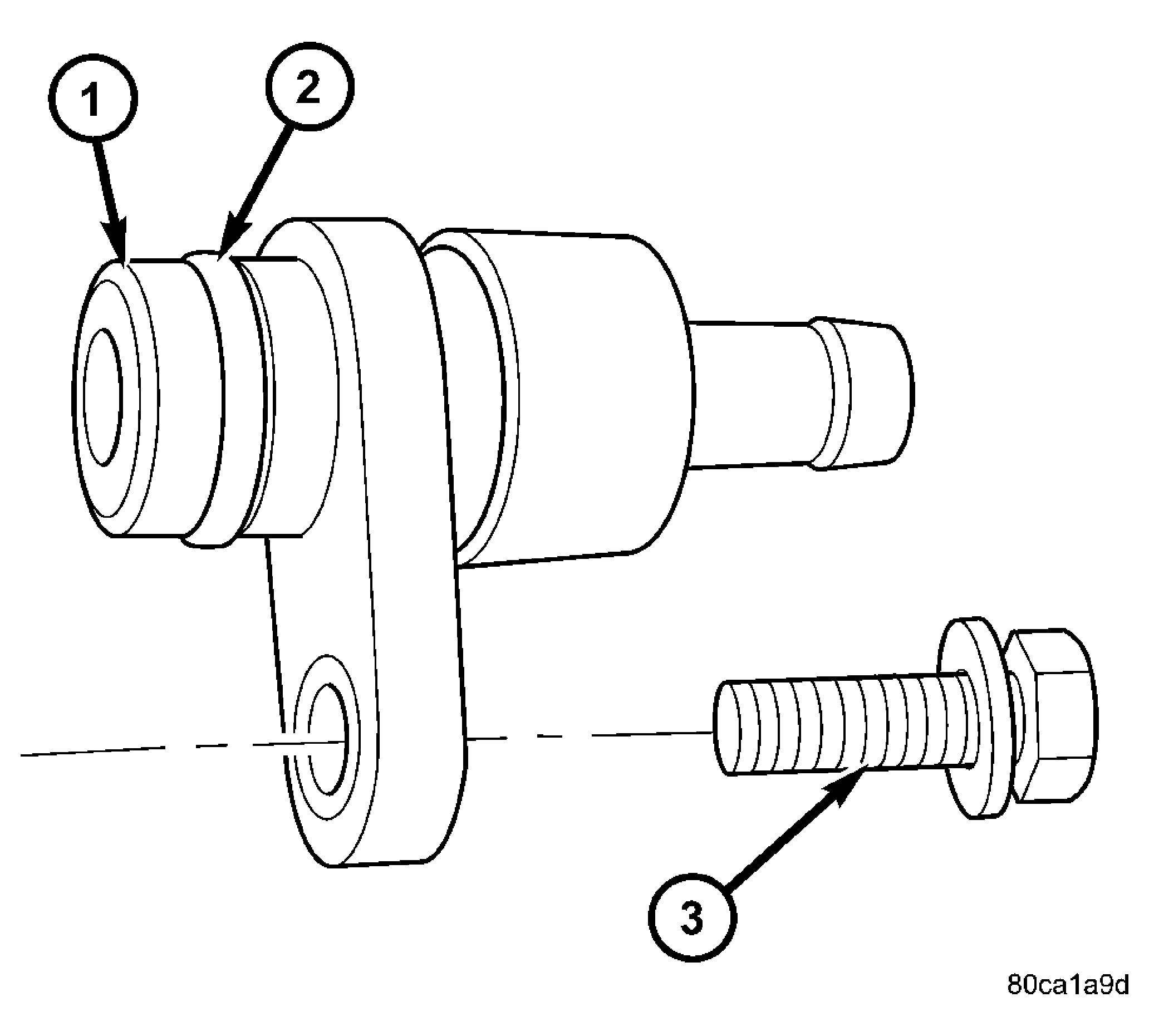

The PCV valve is attached to the left/front side of the valve cover. See Figure. It is secured with 1 bolt. An o-ring is used to seal valve to valve cover. See Figure.

1. Remove hose from valve. See Figure. Check condition of hose.
2. Remove 1 bolt.
3. Remove PCV valve from valve cover.
4. Check condition of valve o-ring.
