Transmission Temperature Sensor Specifications

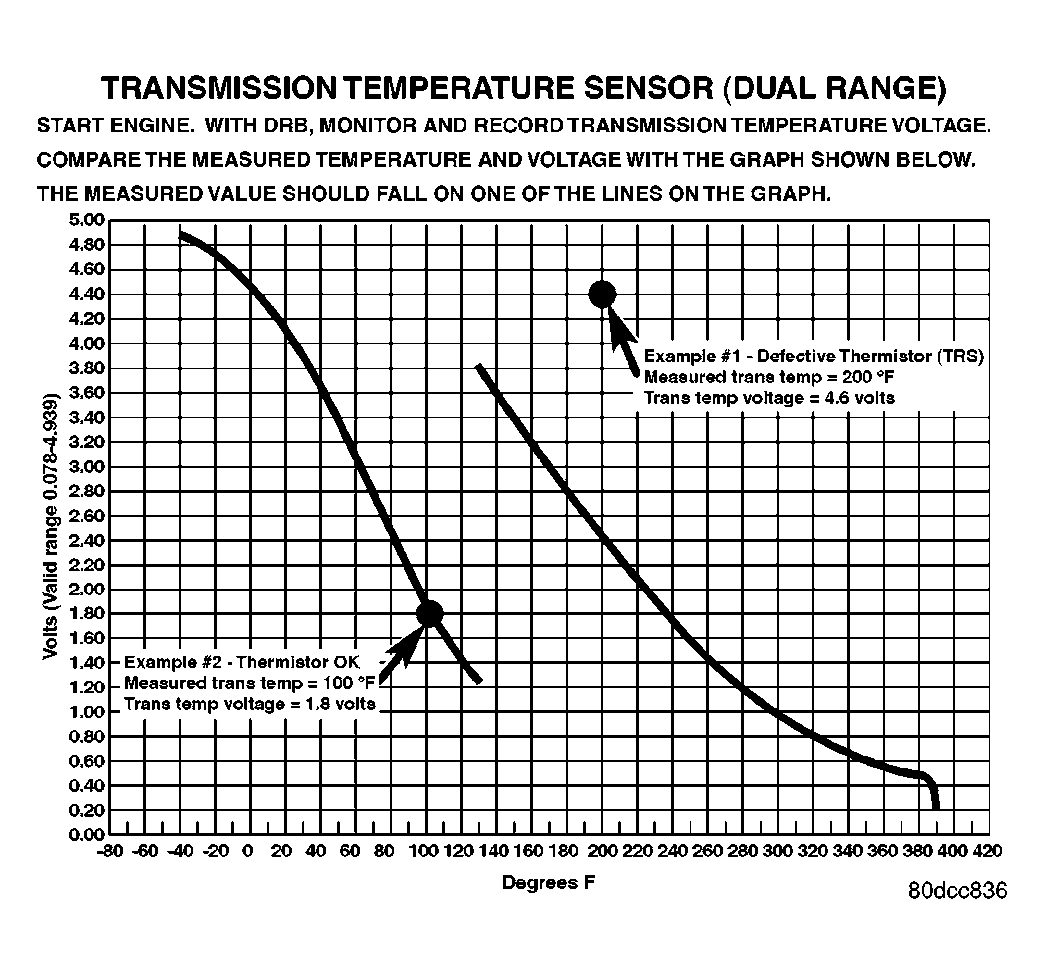

Fig 1: Transmission Temperature Sensor Voltage Graph
G04550021Courtesy of DAIMLERCHRYSLER CORP.
