Liberty Renegade, 4WD, Part Time, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures - Gas
>>
Charts And Graphs
>>
Other Charts And Graphs
>>
O2 Sensor Configuration & Location Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
O2 Sensor Configuration & Location Chart

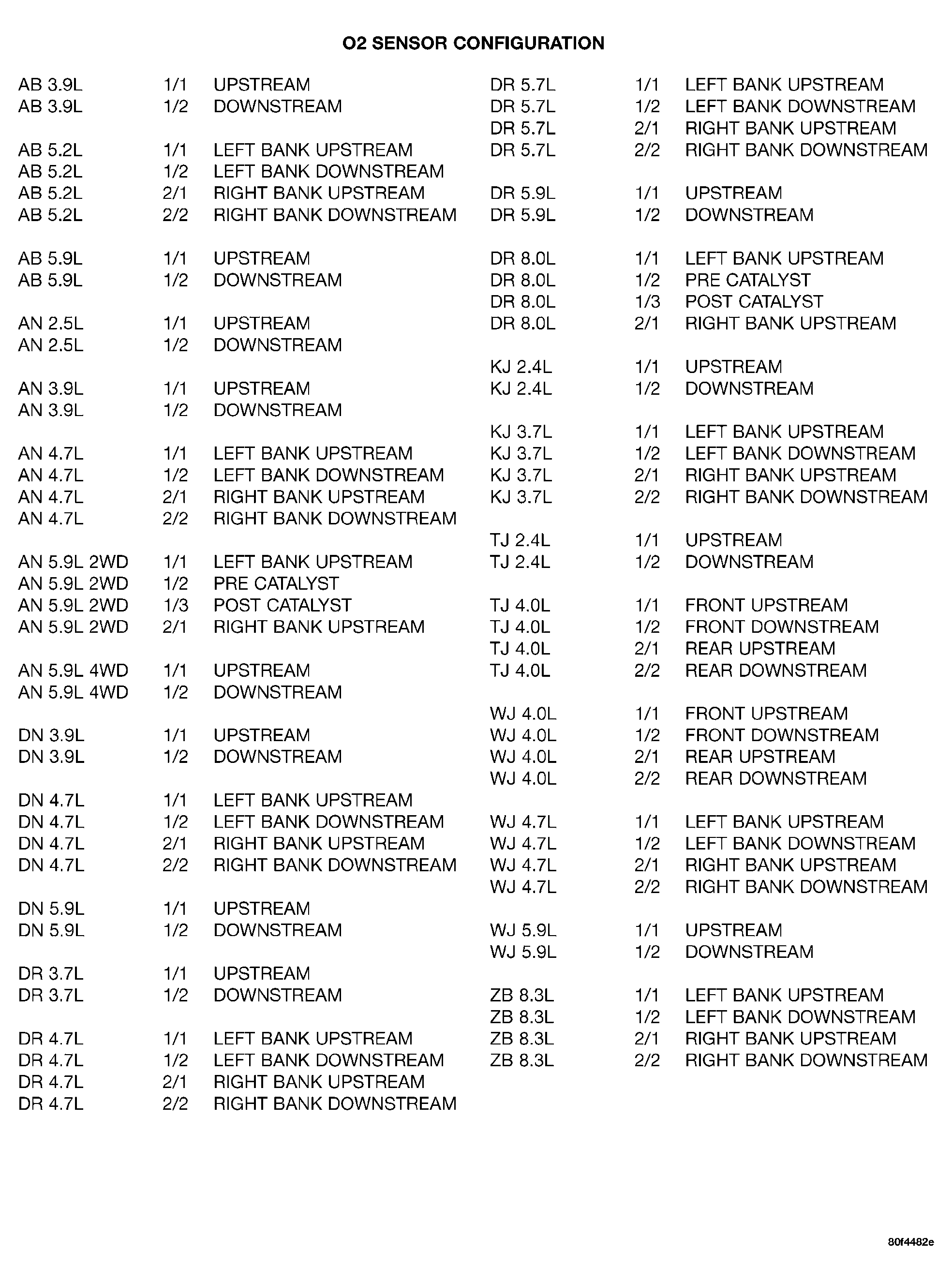

Fig 1: O2 Sensor Configuration Chart
Courtesy of DAIMLERCHRYSLER CORP.
