Clutch Switch Relay: Service and Repair

Clutch Switch Override Relay

REMOVAL

NOTE: Refer to label on PDC cover for relay location.

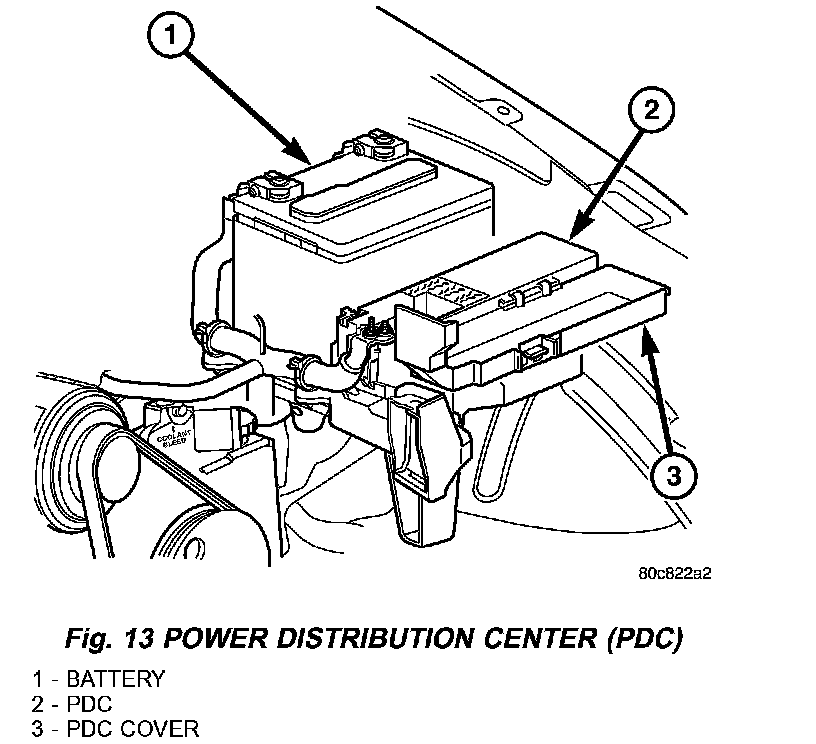

1. Remove PDC (2) cover (3) (Fig. 13).
2. Remove relay from PDC.
3. Check relay and PDC terminals for:
^ Damage or corrosion
^ Pin height (all terminals should be same height)

INSTALLATION
1. Install relay in PDC.
2. Install PDC cover.
3. Verify operation of relay.
