Compressor Clutch Relay: Service and Repair

REMOVAL
1. Disconnect and isolate the negative battery cable.

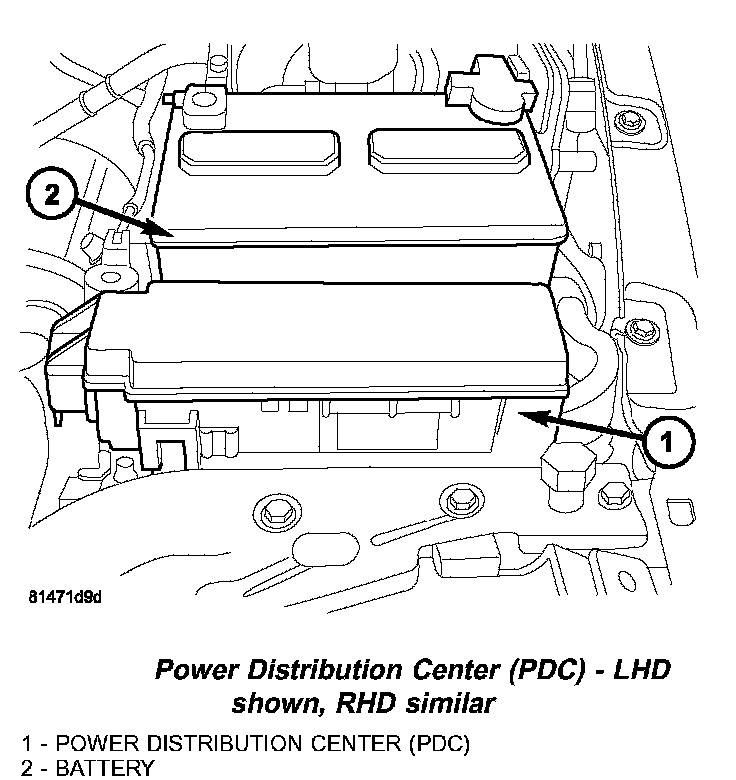

Power Distribution Center (PDC) - LHD Shown PHD Similar:

2. Open the cover of the power distribution center (PDC) located in the engine compartment.

NOTE: Refer to the fuse and relay layout map on the inside of the PDC cover for A/C clutch relay location.

3. Remove the A/C clutch relay from the PDC.

INSTALLATION

NOTE: Refer to the fuse and relay layout map on the inside of the power distribution center (PDC) cover for A/C clutch relay location.

1. Position the A/C clutch relay into the receptacle of the PDC.
2. Align the A/C clutch relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the cover of the PDC.
4. Reconnect the negative battery cable.
