Front Locker Indicator Switch (Off-Road Package) Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Locker Indicator Switch (Off-Road Package) Connector End View

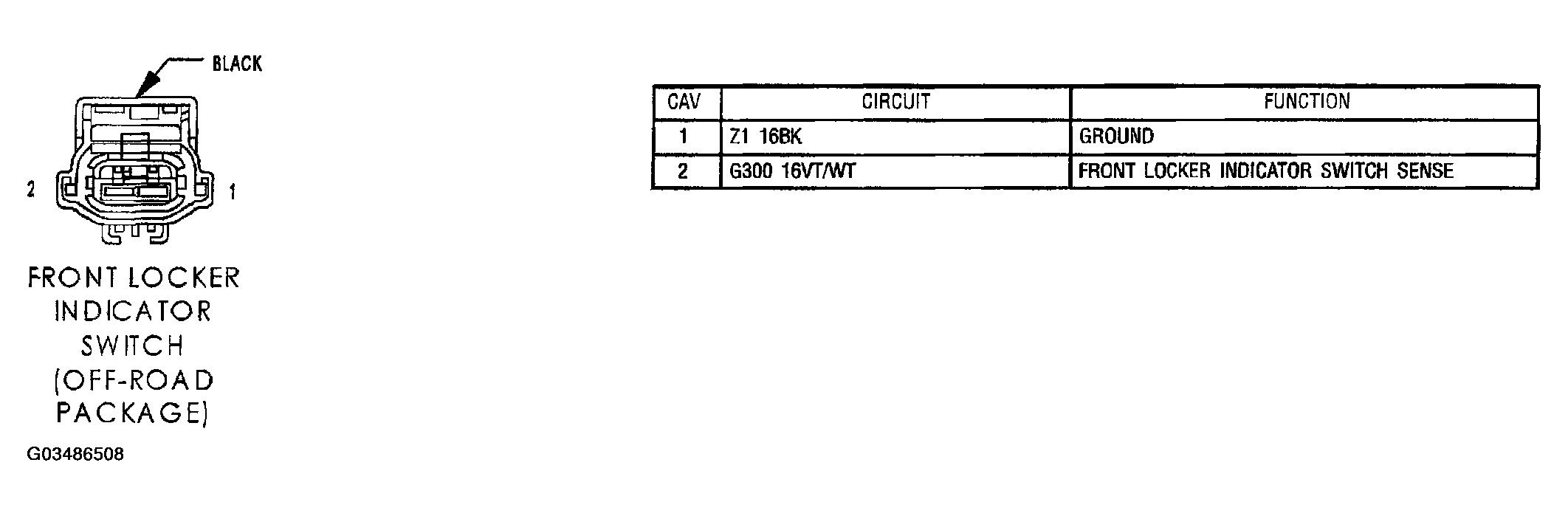

Fig 1: Front Locker Indicator Switch (Off Road Package) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
