Grounds
>>
Figure 11
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Figure 11

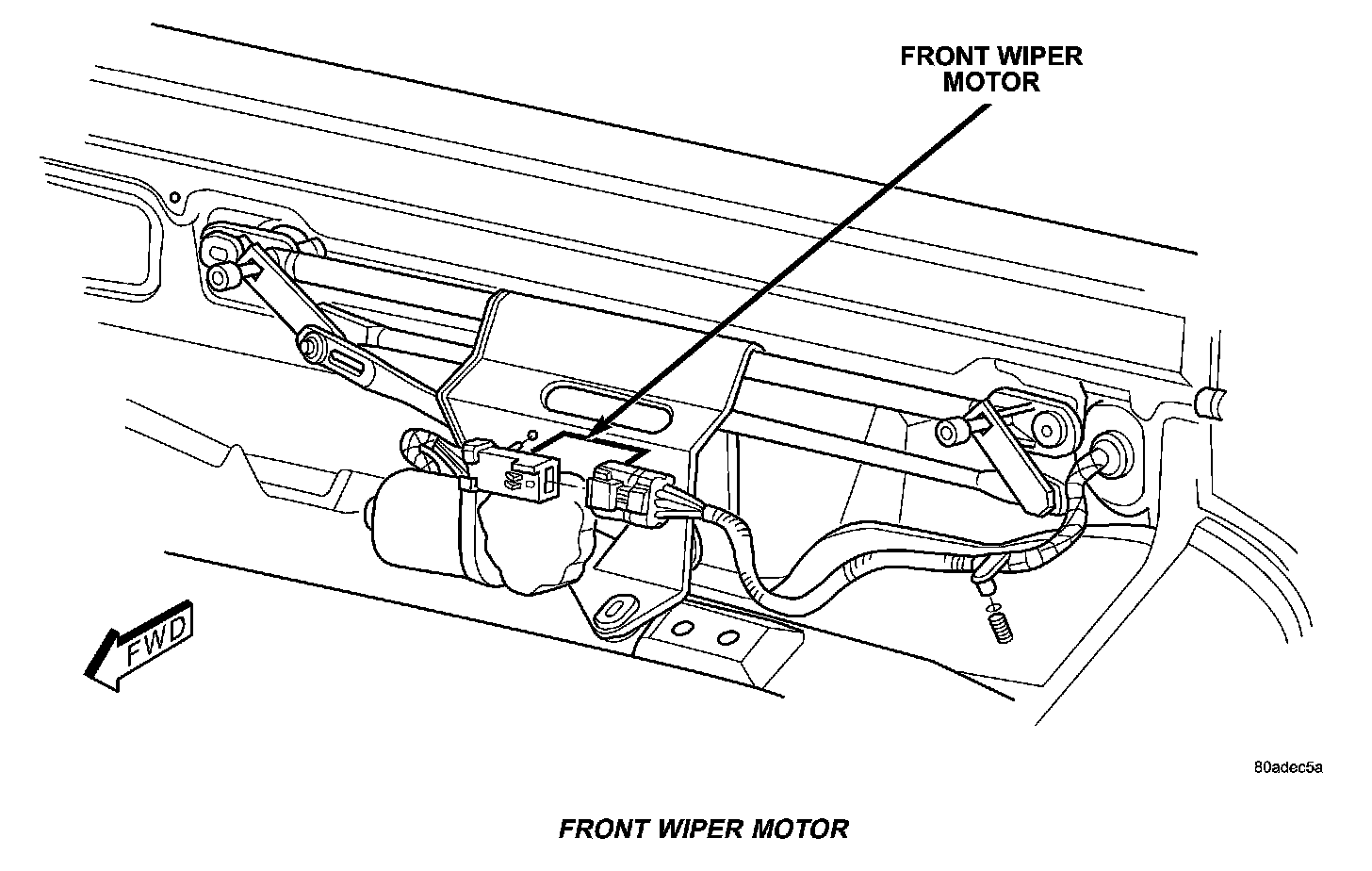

Front Wiper Motor:

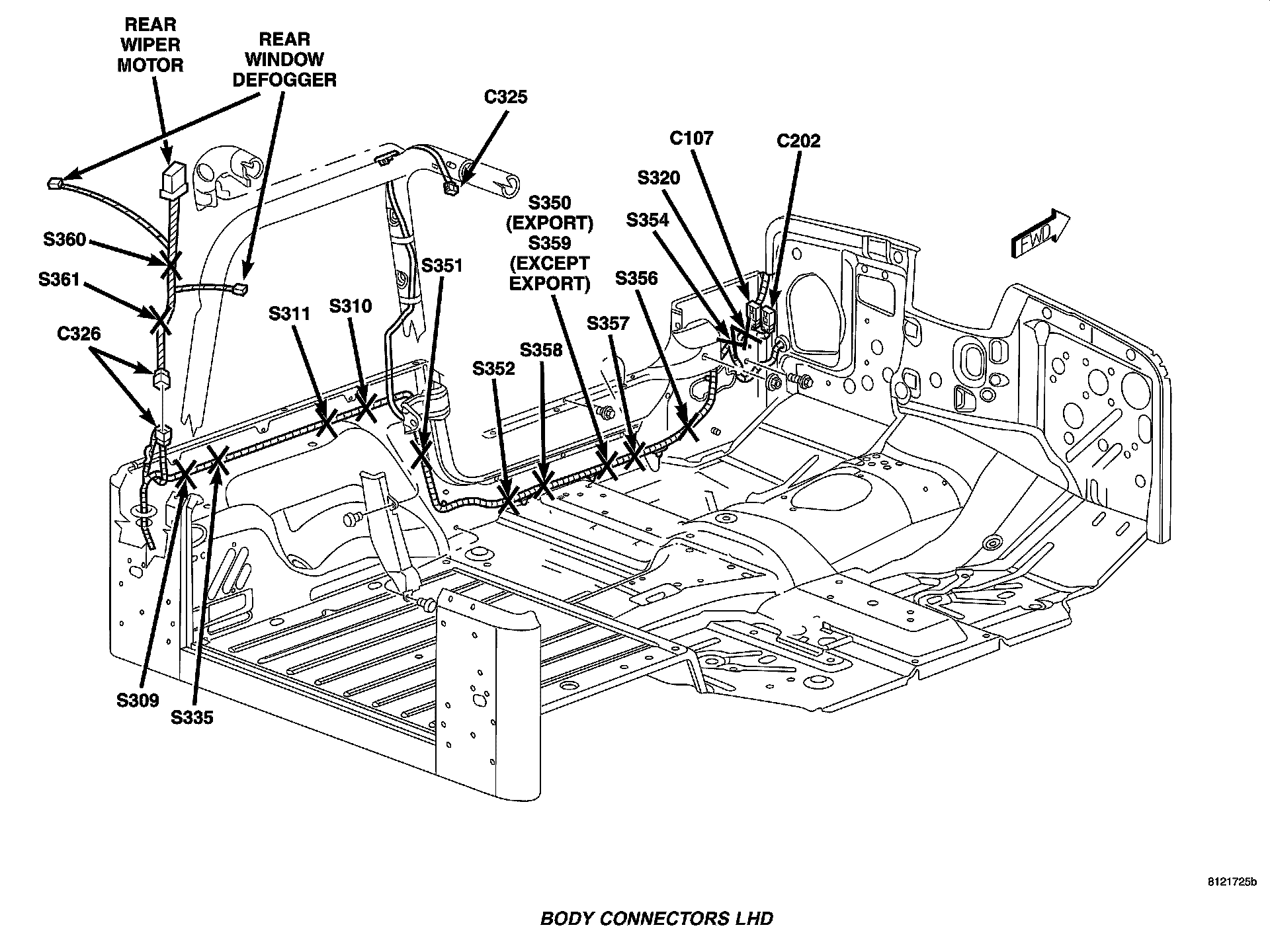

Body Connectors (LHD):
Body Connectors RHD:
