Powertrain Verification Test VER-6
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Powertrain Verification Test VER-6

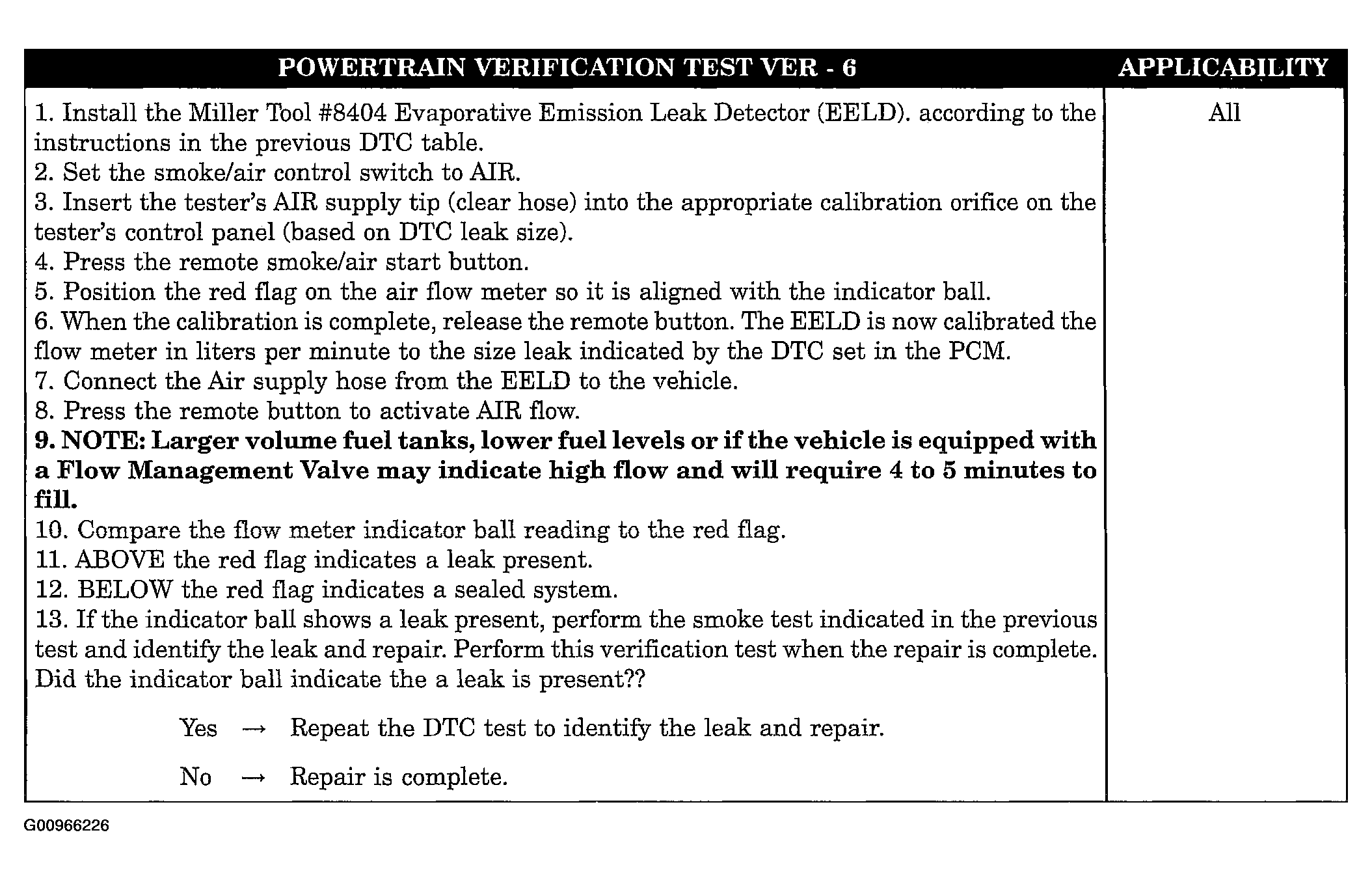

Fig 1: Powertrain Verification Test VER-6
Courtesy of DAIMLERCHRYSLER CORP.
