Powertrain Verification Test VER-5

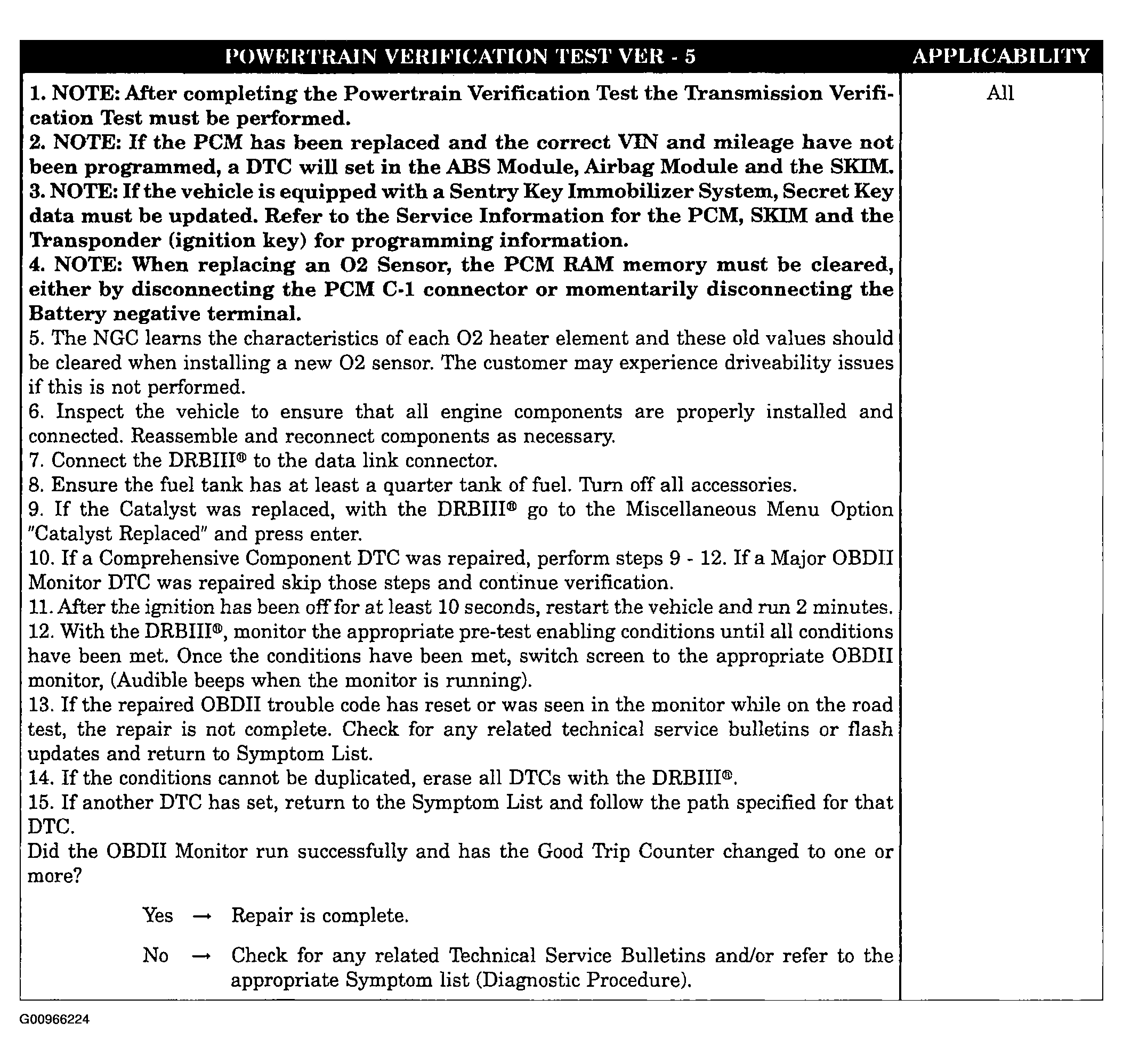

Fig 1: Powertrain Verification Test VER-5
G00966224Courtesy of DAIMLERCHRYSLER CORP.

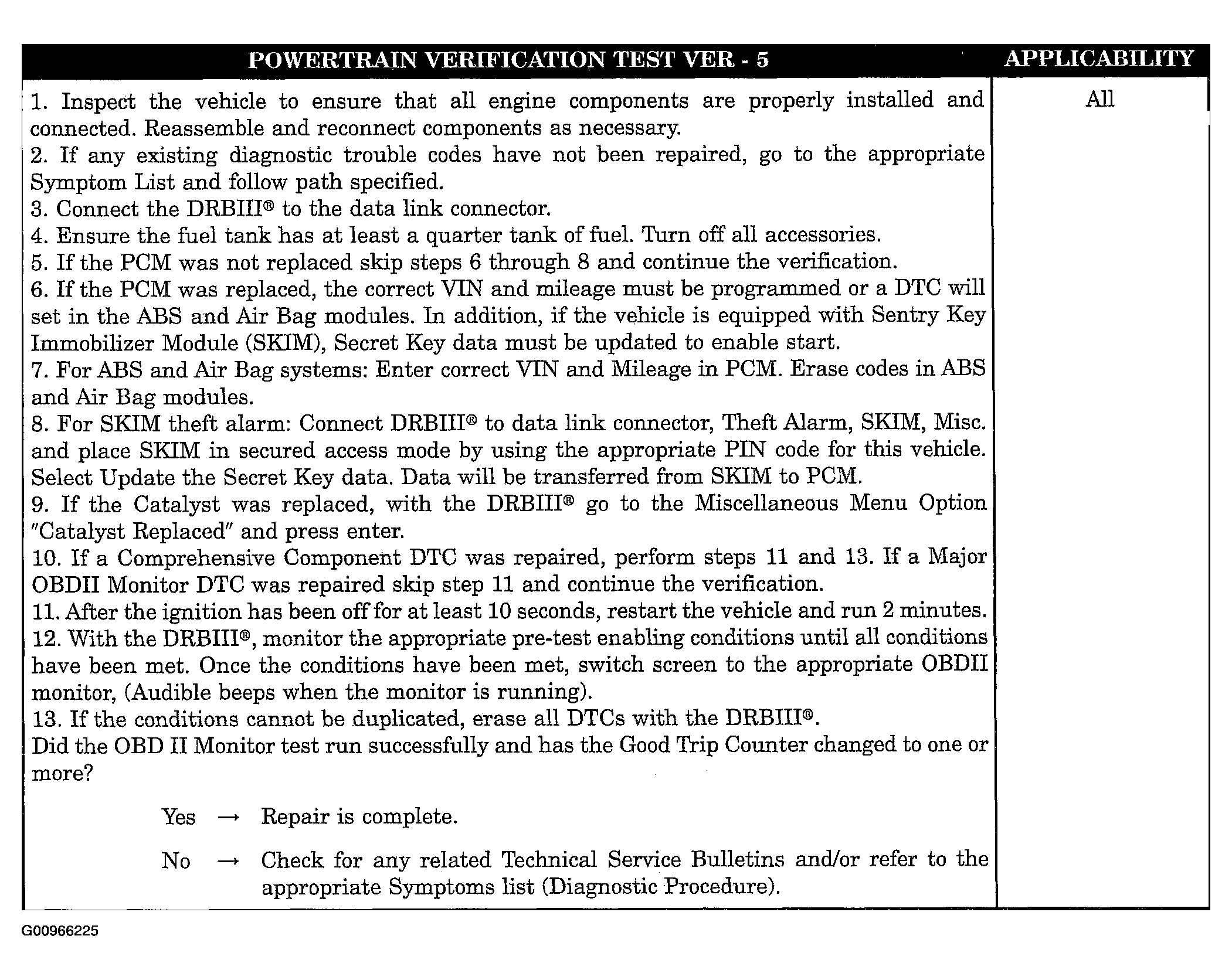

Fig 1: Powertrain Verification Test VER-5
G00966225Courtesy of DAIMLERCHRYSLER CORP.
