Symptom: *PCI BUS COMMUNICATION FAILURE: Testing

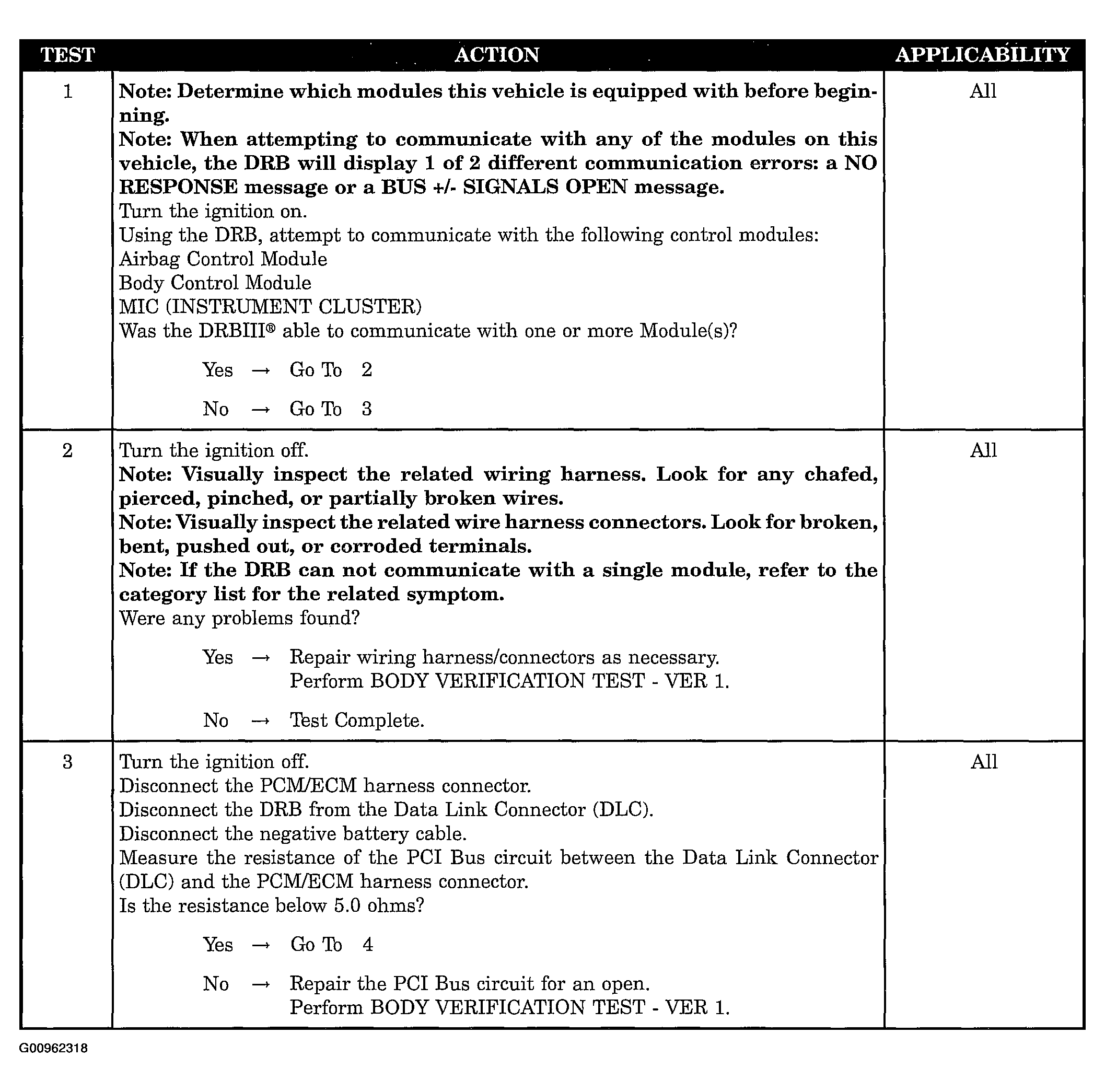

Fig 1: Testing: PCI BUS Communication Failure (1 Of 2)
G00962318Courtesy of DAIMLERCHRYSLER CORP.

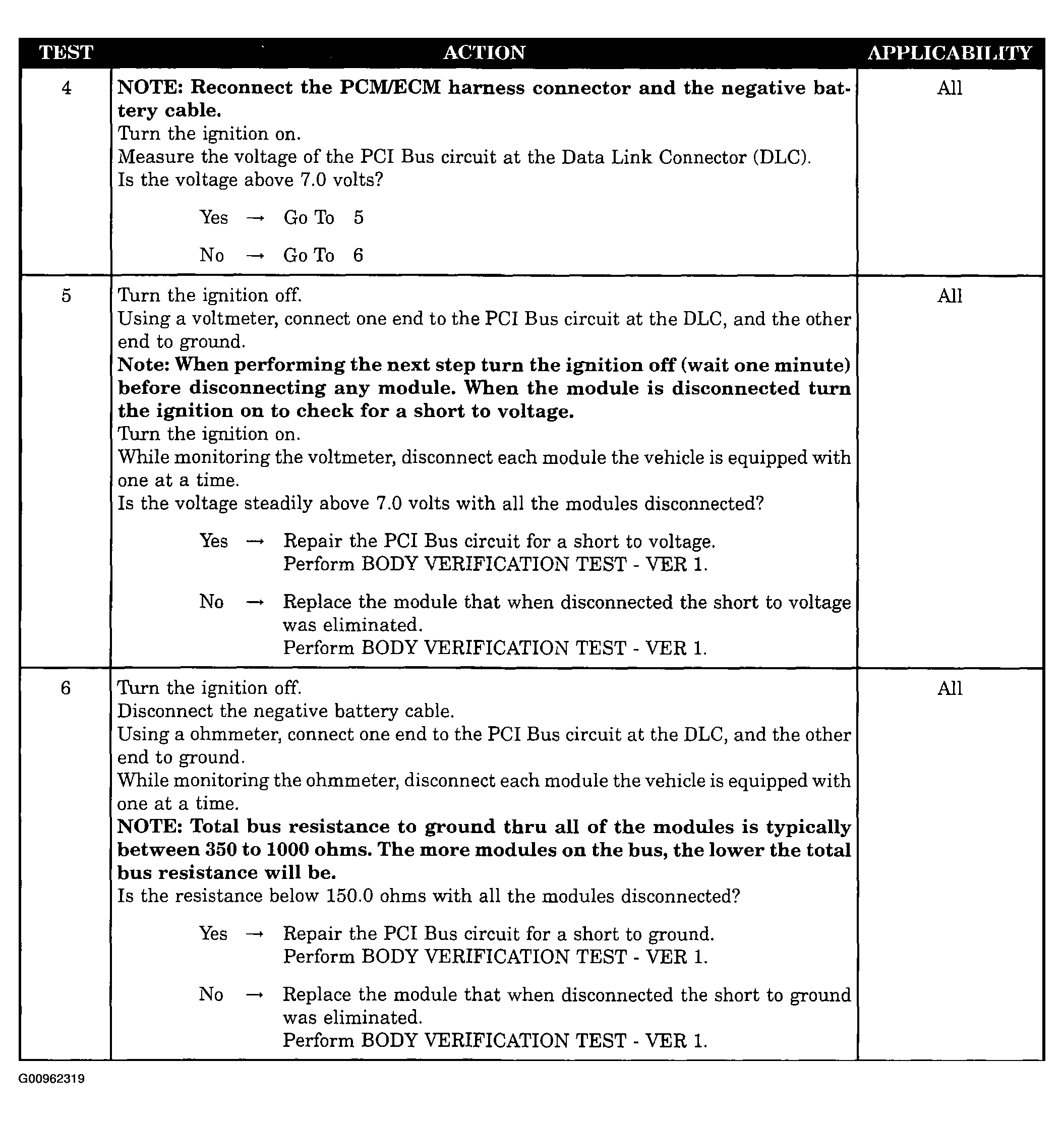

Fig 2: Testing: PCI BUS Communication Failure (2 Of 2)
G00962319Courtesy of DAIMLERCHRYSLER CORP.
