Crankshaft Position Sensor: Description: 3.7L

The Crankshaft Position (CKP) sensor is mounted into the right rear side of the cylinder block. It is positioned and bolted into a machined hole.

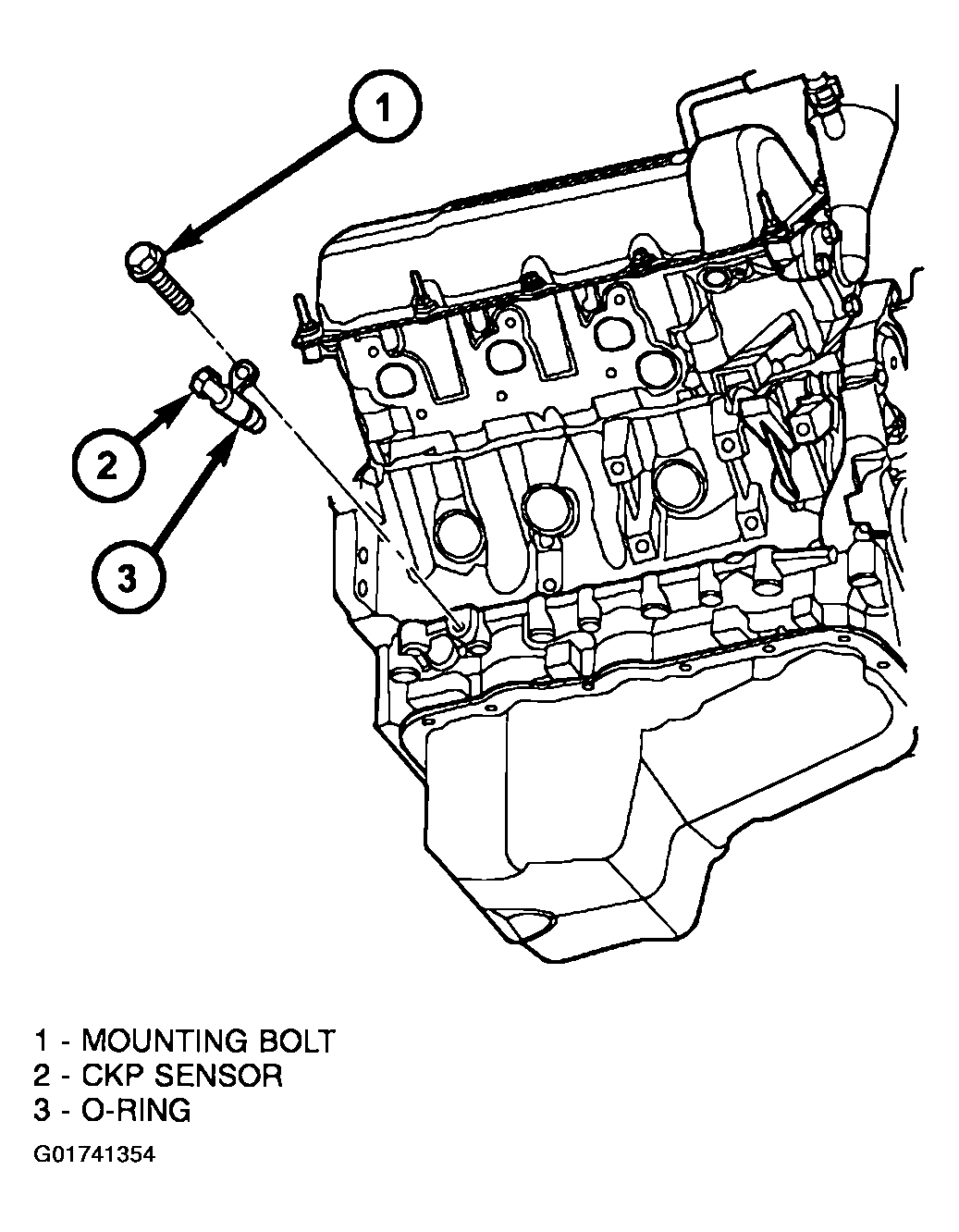

Fig 1: Locating CKP Sensor - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.
