RKE Inoperative

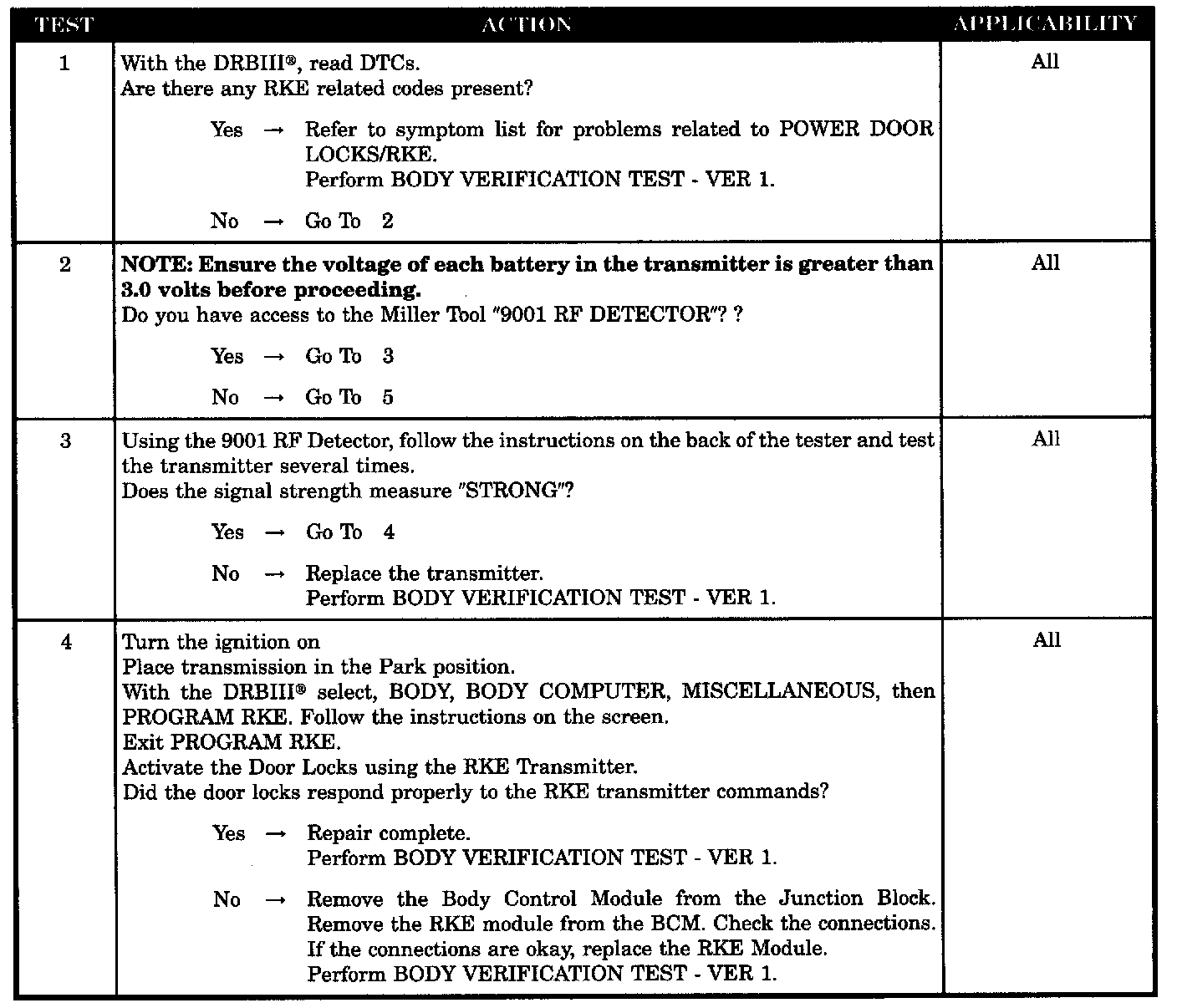

Test 1 - 4:

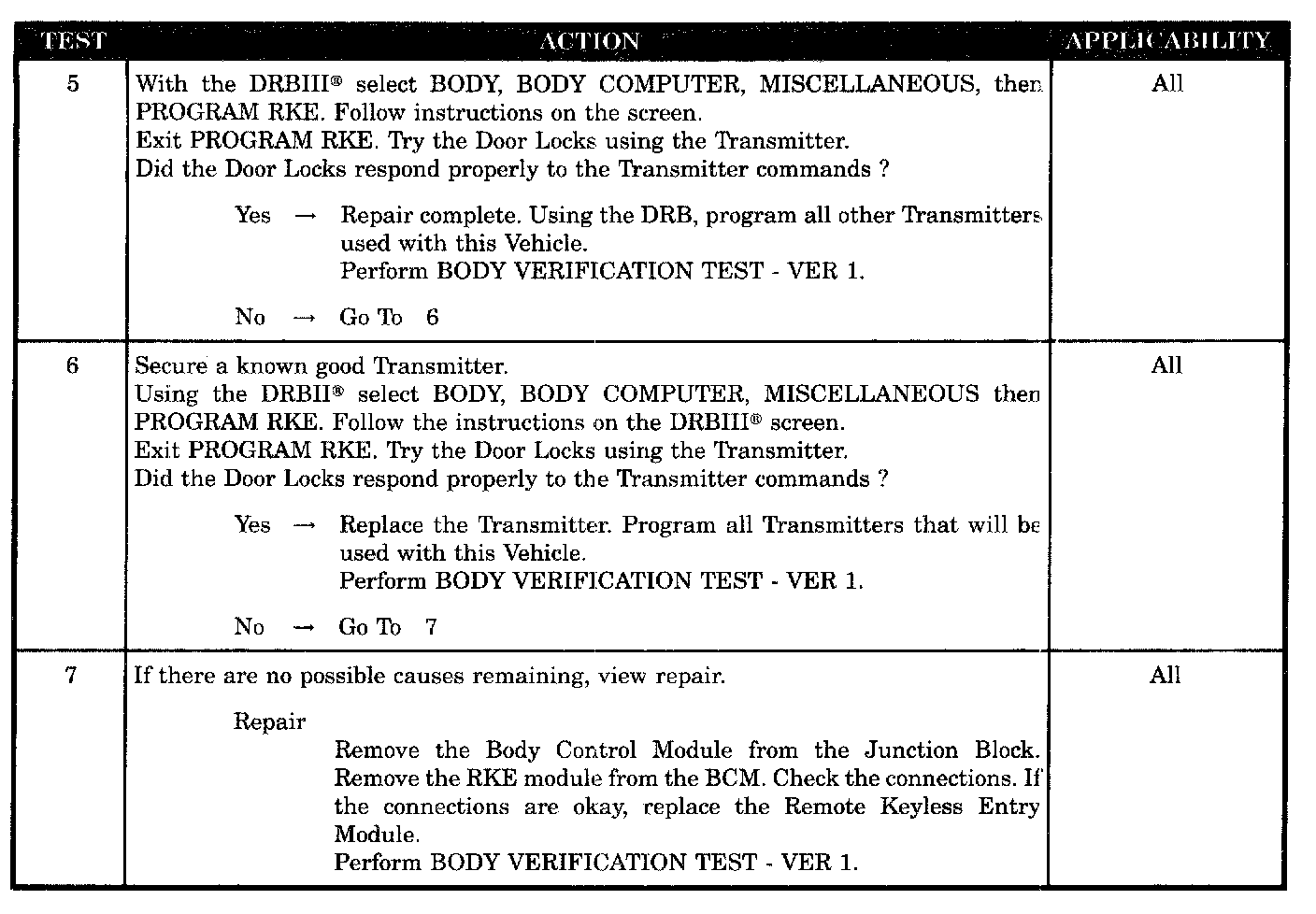

Test 5 - 7:






SYMPTOM
RKE INOPERATIVE

POSSIBLE CAUSES
- RKE DTC's present
- Test transmitter with tester
- RKE transmitter not programmed
- RKE transmitter not programmed
- RKE transmitter defective
- Remote keyless entry module
- RKE Module - receiver inoperable
