Speed Control Switch No. 2 Connector End View

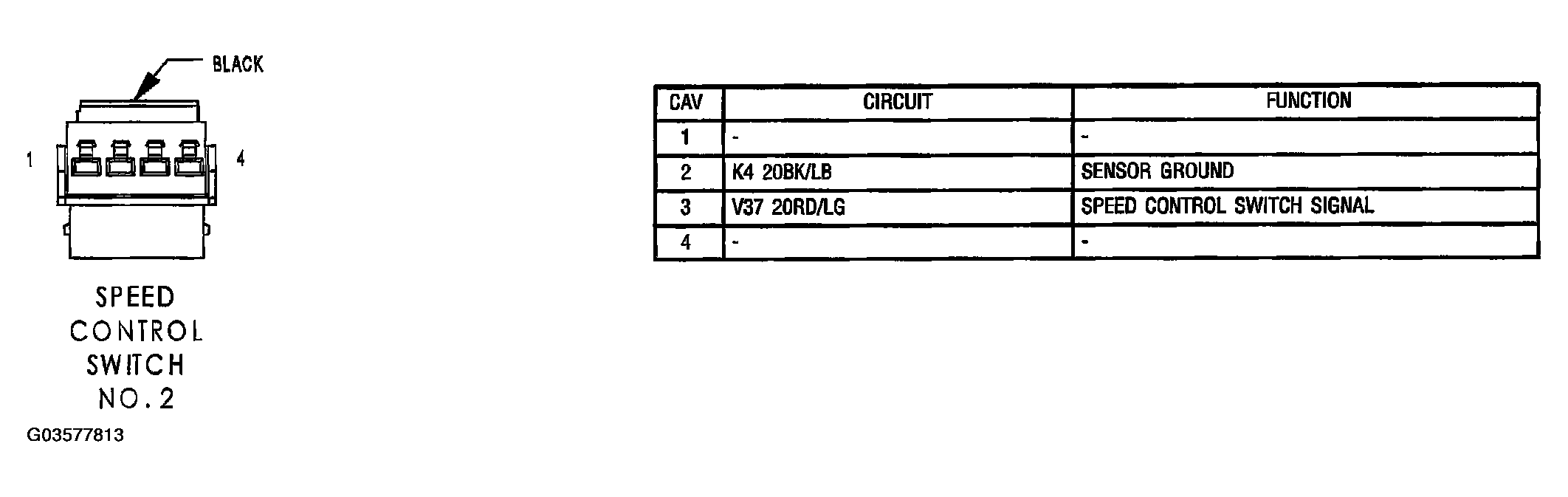

Fig 1: Speed Control Switch Connector End View (2)
G03577813Courtesy of DAIMLERCHRYSLER CORP.
