Grand Cherokee Overland, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission Diagnostic Procedures
>>
Connector PINOUTS
>>
Powertrain Control Module C3 (Gas) - Gray 32-Way
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Powertrain Control Module C3 (Gas) - Gray 32-Way

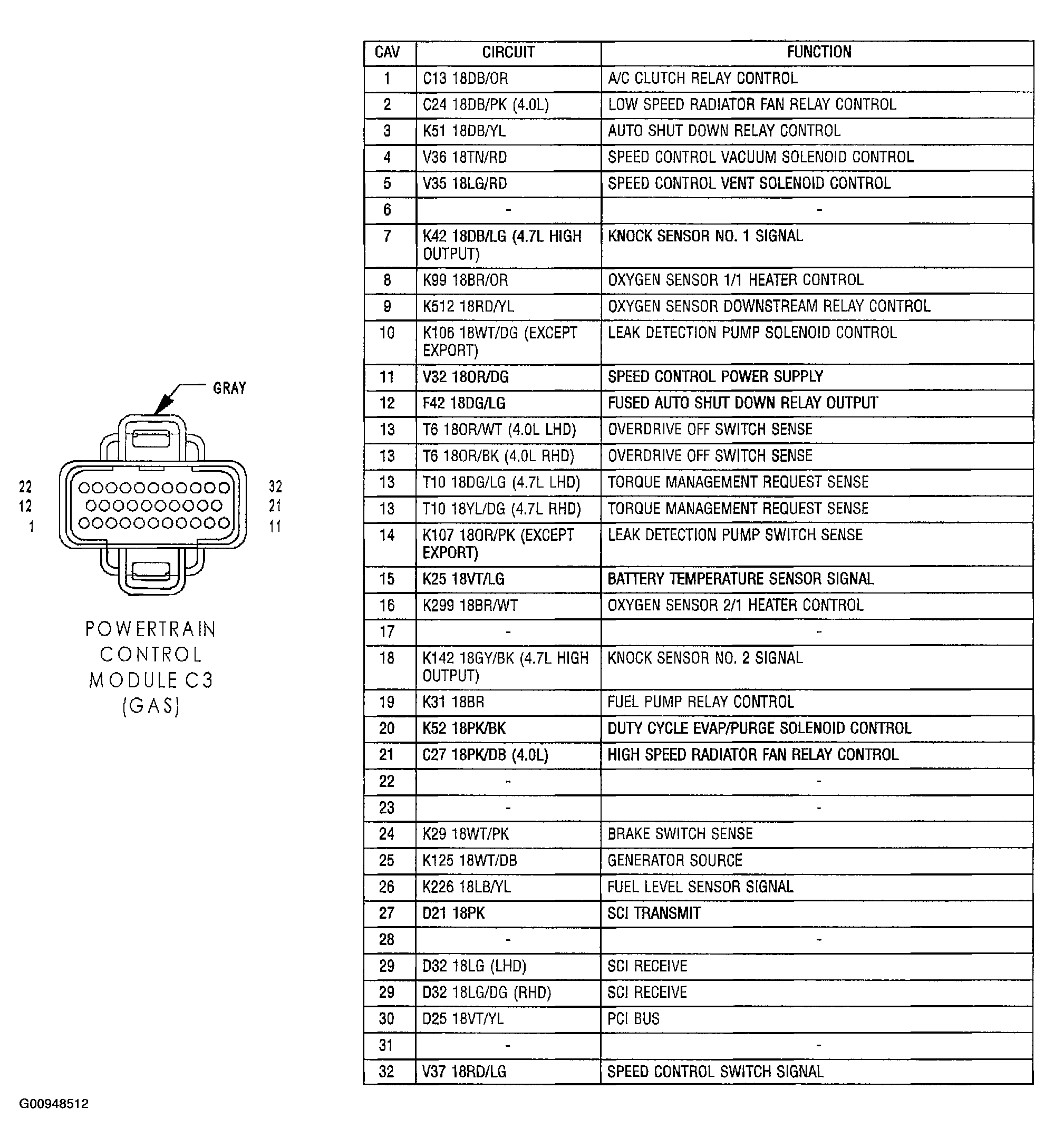

Fig 1: Identifying Connector Pinouts Of Powertrain Control Module C3 (Gas) - Gray 32-Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
