Possible Causes

  1. FUEL PUMP RELAY OPERATION
  2. FUEL PUMP RELAY
  3. (F991) FUSED IGNITION SWITCH OUTPUT CIRCUIT
  4. (K31) FUEL PUMP RELAY CONTROL CIRCUIT OPEN
  5. (K31) FUEL PUMP RELAY CONTROL CIRCUIT SHORTED TO GROUND
  6. PCM

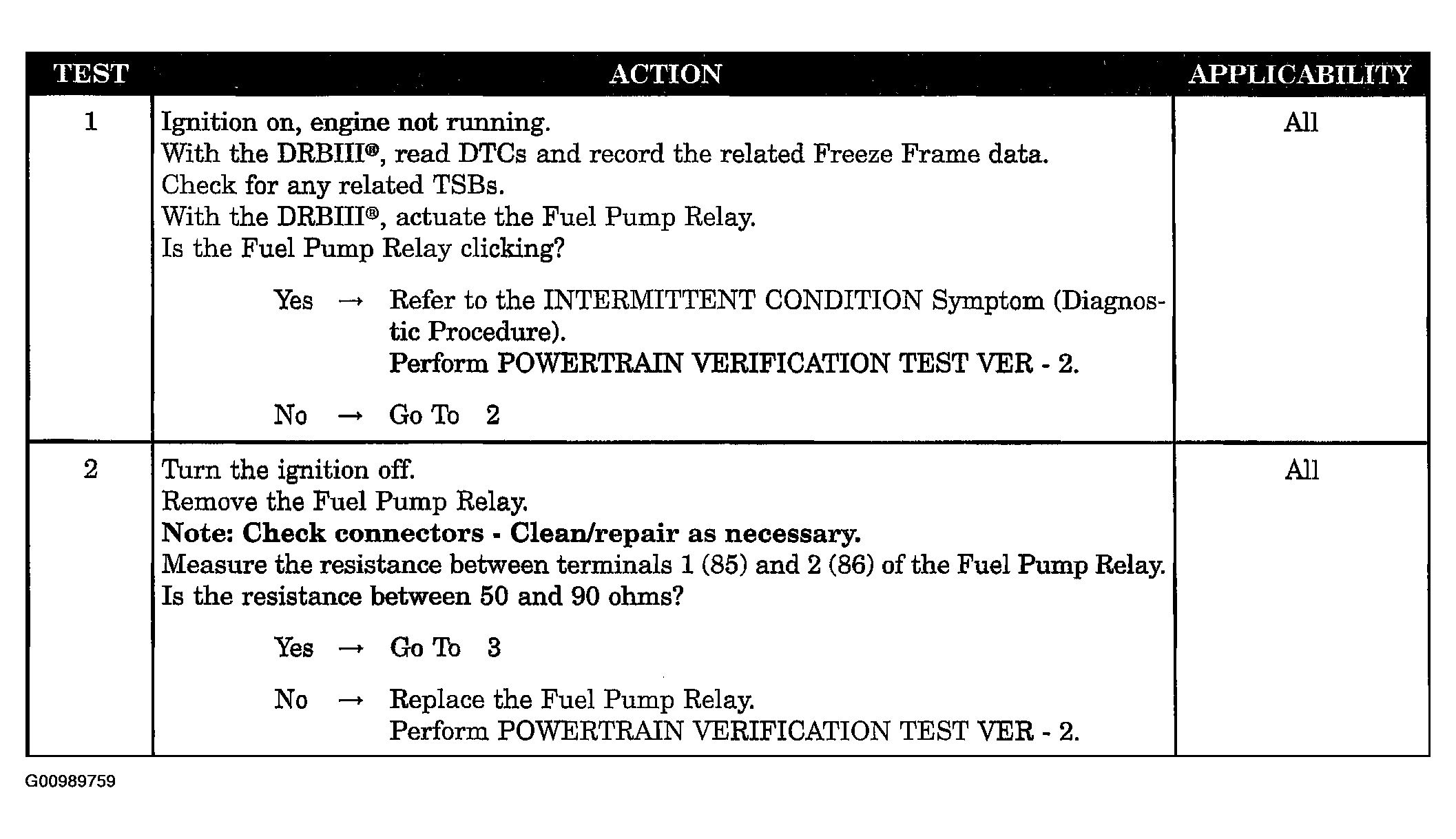

Fig 1: Diagnosis Procedure - P1282-Fuel Pump/System Relay Control Circuit (Test 1 To 2)
G00989759Courtesy of DAIMLERCHRYSLER CORP.

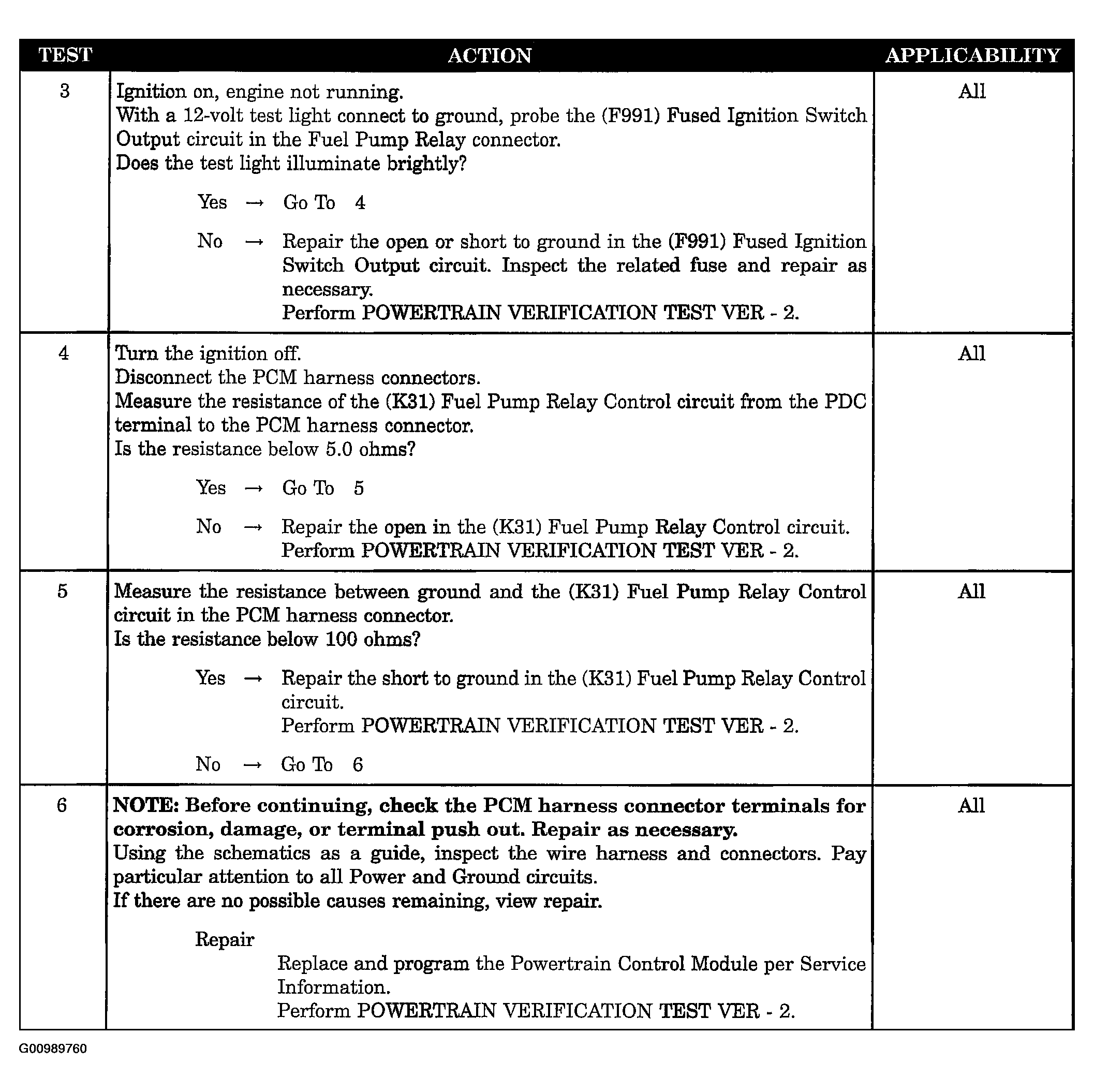

Fig 2: Diagnosis Procedure - P1282-Fuel Pump/System Relay Control Circuit (Test 3 To 6)
G00989760Courtesy of DAIMLERCHRYSLER CORP.
