H.O. Gap Adjustment

If equipped with the 4.7L H.O. engine, do not use a wire-type gapping tool as damage to the platinum rivet on the center electrode may occur. Use a tapered-type gauge (Fig 1 ).

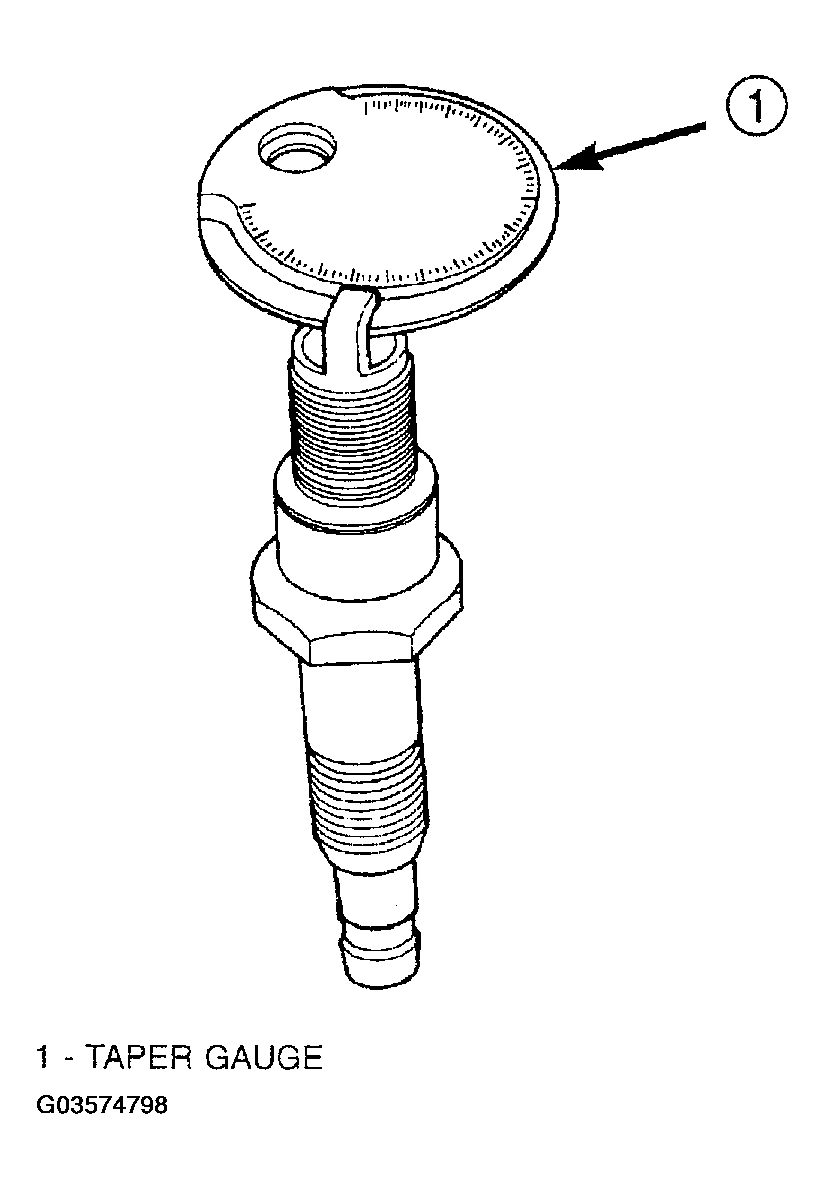

Fig 1: Plug Gap - 4.7L H.O.

Courtesy of DAIMLERCHRYSLER CORP.
