Power Mirror System

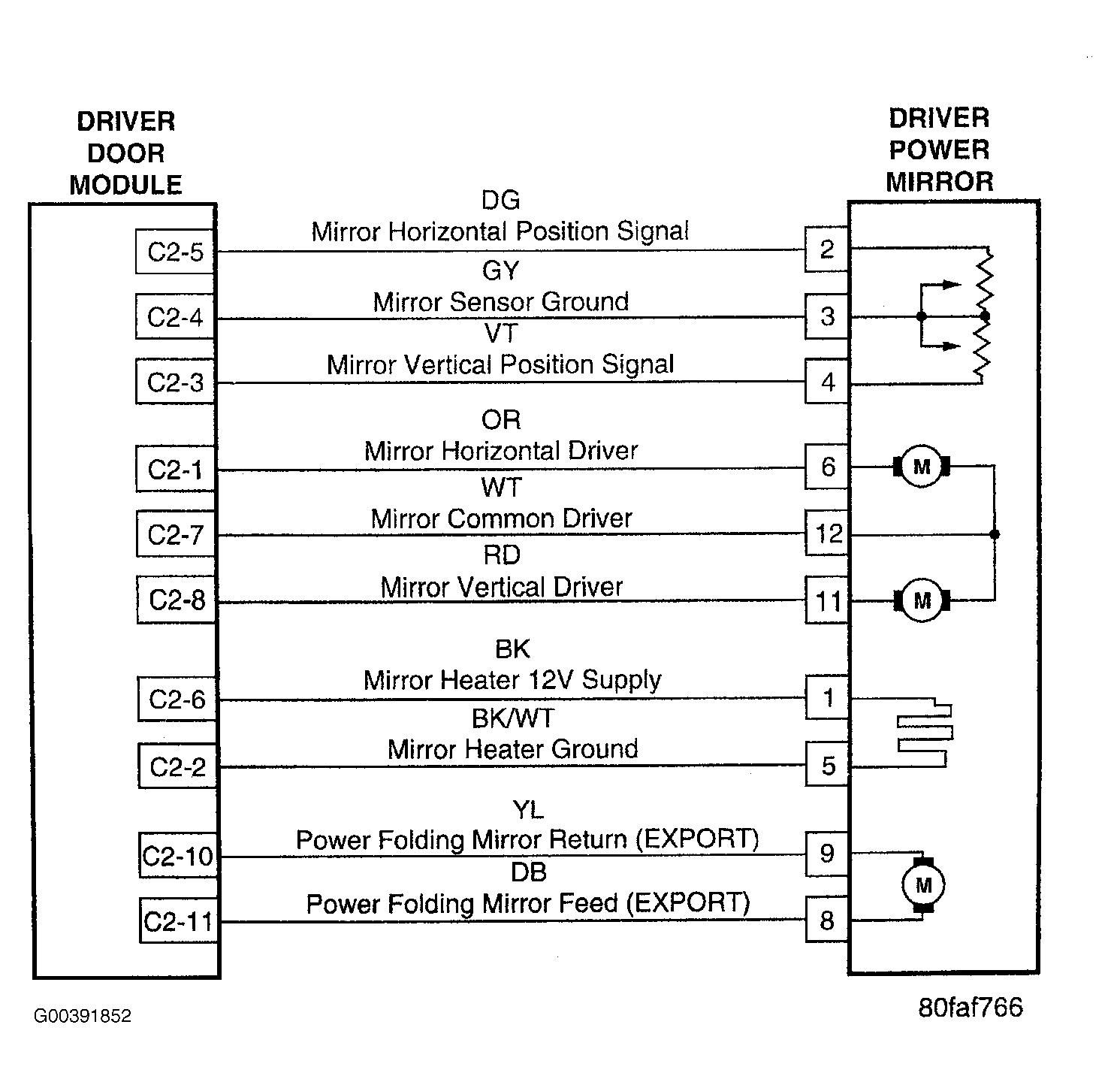

Fig 1: Driver Mirror System Schematic Diagram
G00391852Courtesy of DAIMLERCHRYSLER CORPORATION

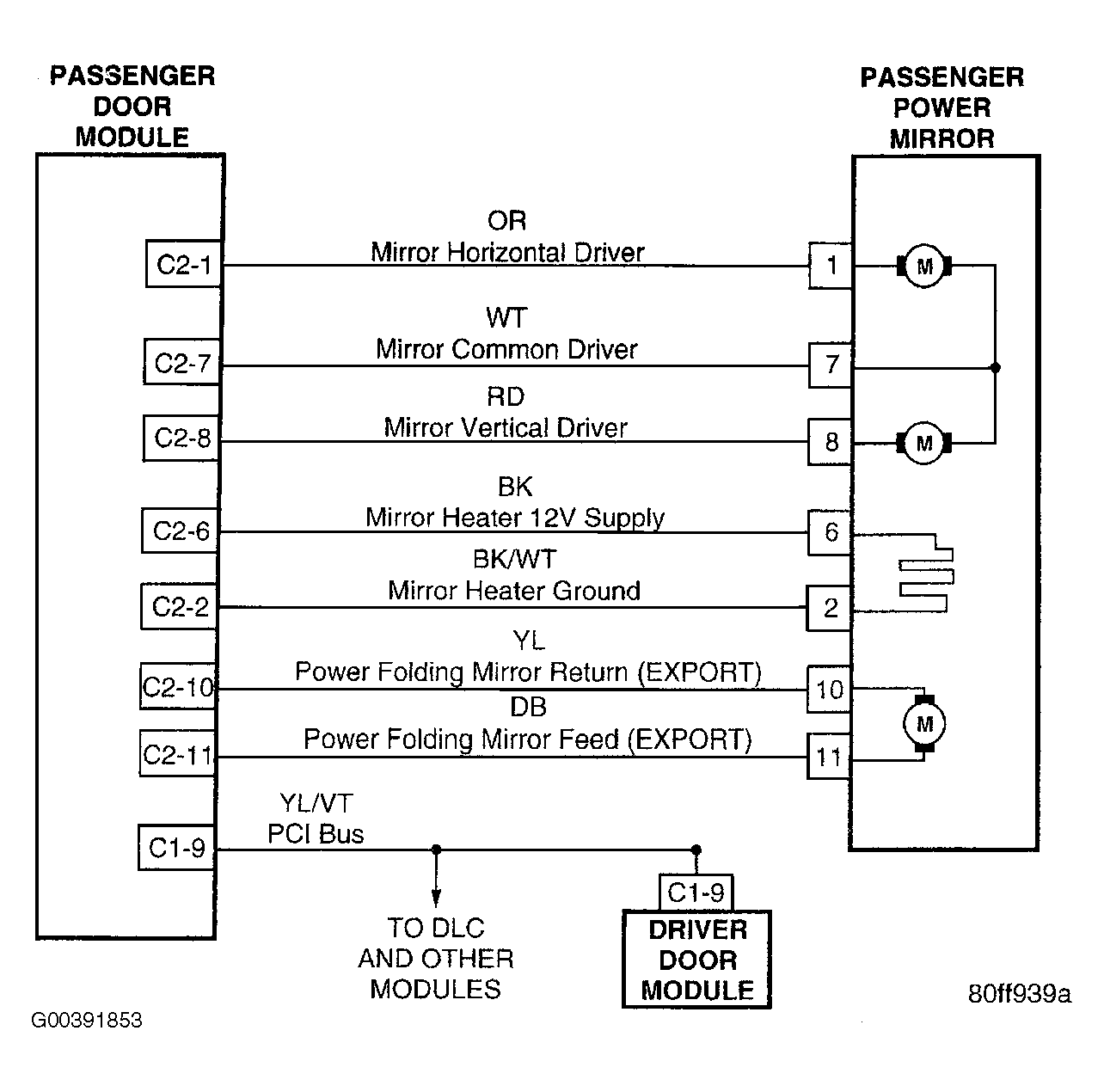

Fig 2: Passenger Mirror Schematic Diagram
G00391853Courtesy of DAIMLERCHRYSLER CORPORATION
