Power Windows

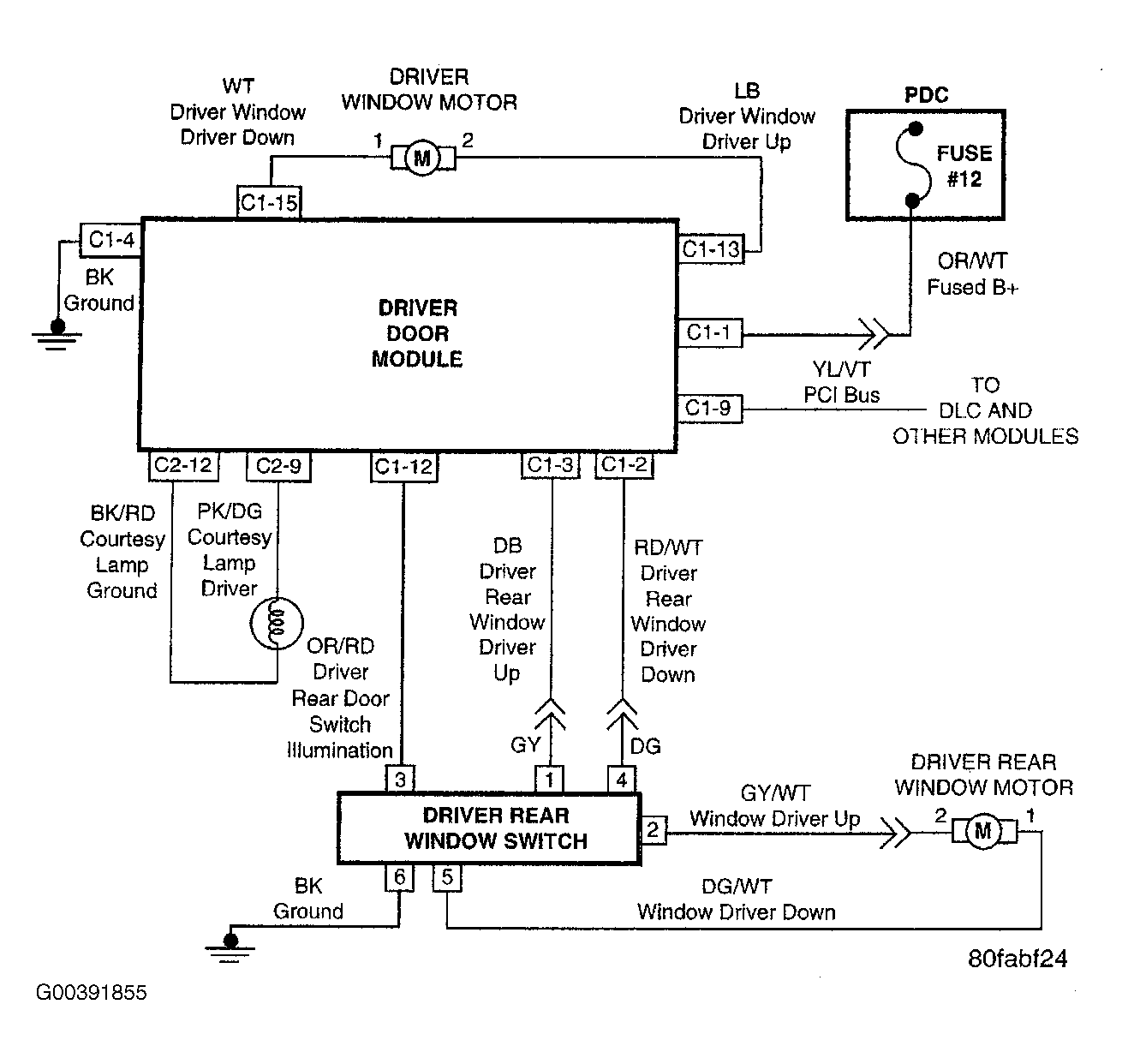

Fig 1: Driver Side Power Windows Schematic Diagram
G00391855Courtesy of DAIMLERCHRYSLER CORPORATION

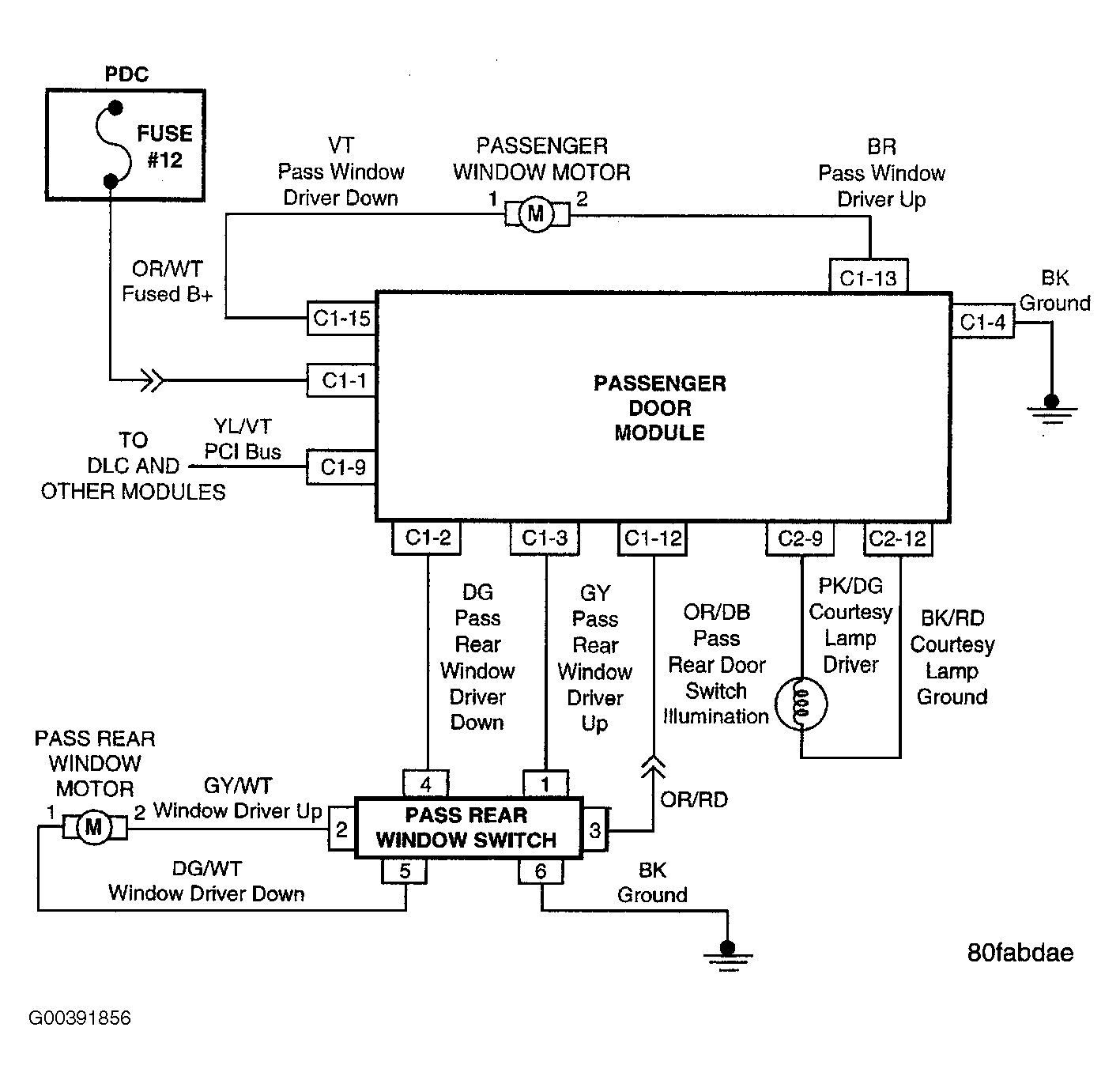

Fig 2: Passenger Side Power Window Schematic Diagram
G00391856Courtesy of DAIMLERCHRYSLER CORPORATION
