Interior Lighting

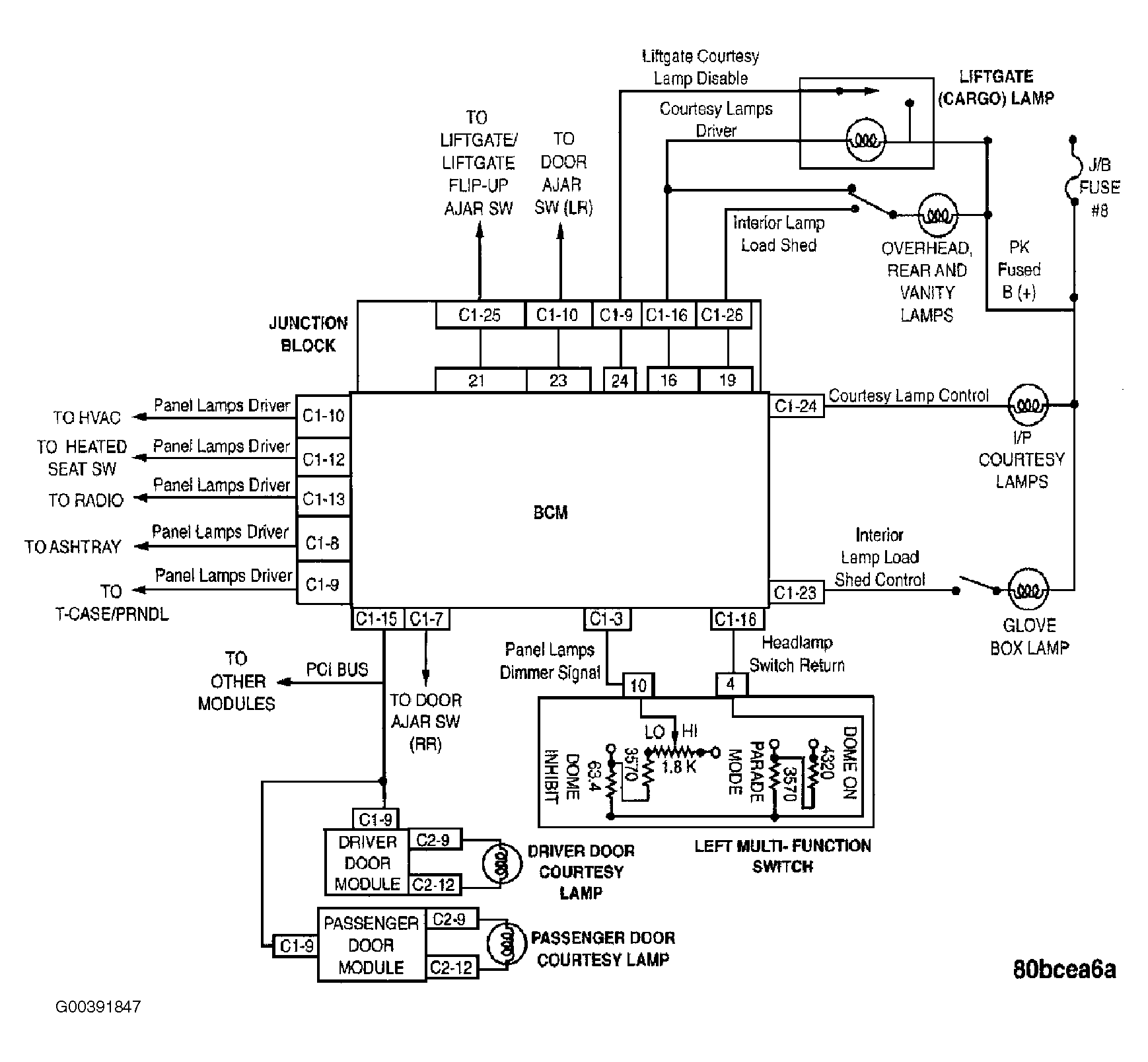

Fig 1: Interior Lighting Schematic Diagram (1 Of 2)
G00391847Courtesy of DAIMLERCHRYSLER CORPORATION

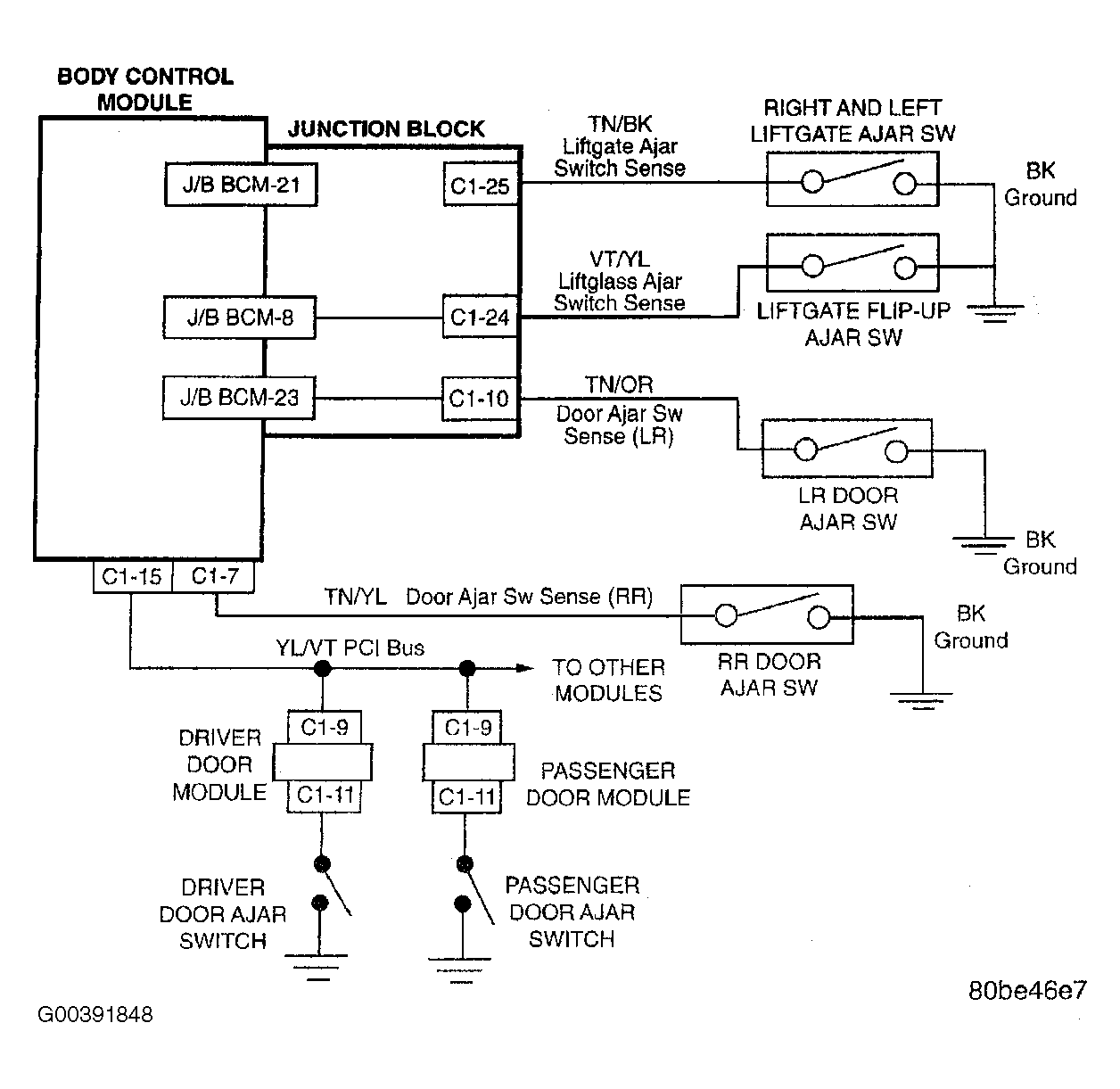

Fig 2: Interior Lighting Schematic Diagram (2 Of 2)
G00391848Courtesy of DAIMLERCHRYSLER CORPORATION
